LIB - TIA - VALVE SIMULATION CONTROL BLOCK

  • Price: €15.00

Our Services

Download Request

A4U Valve Simulation Control Block – Flexible Valve Testing Without Physical I/O

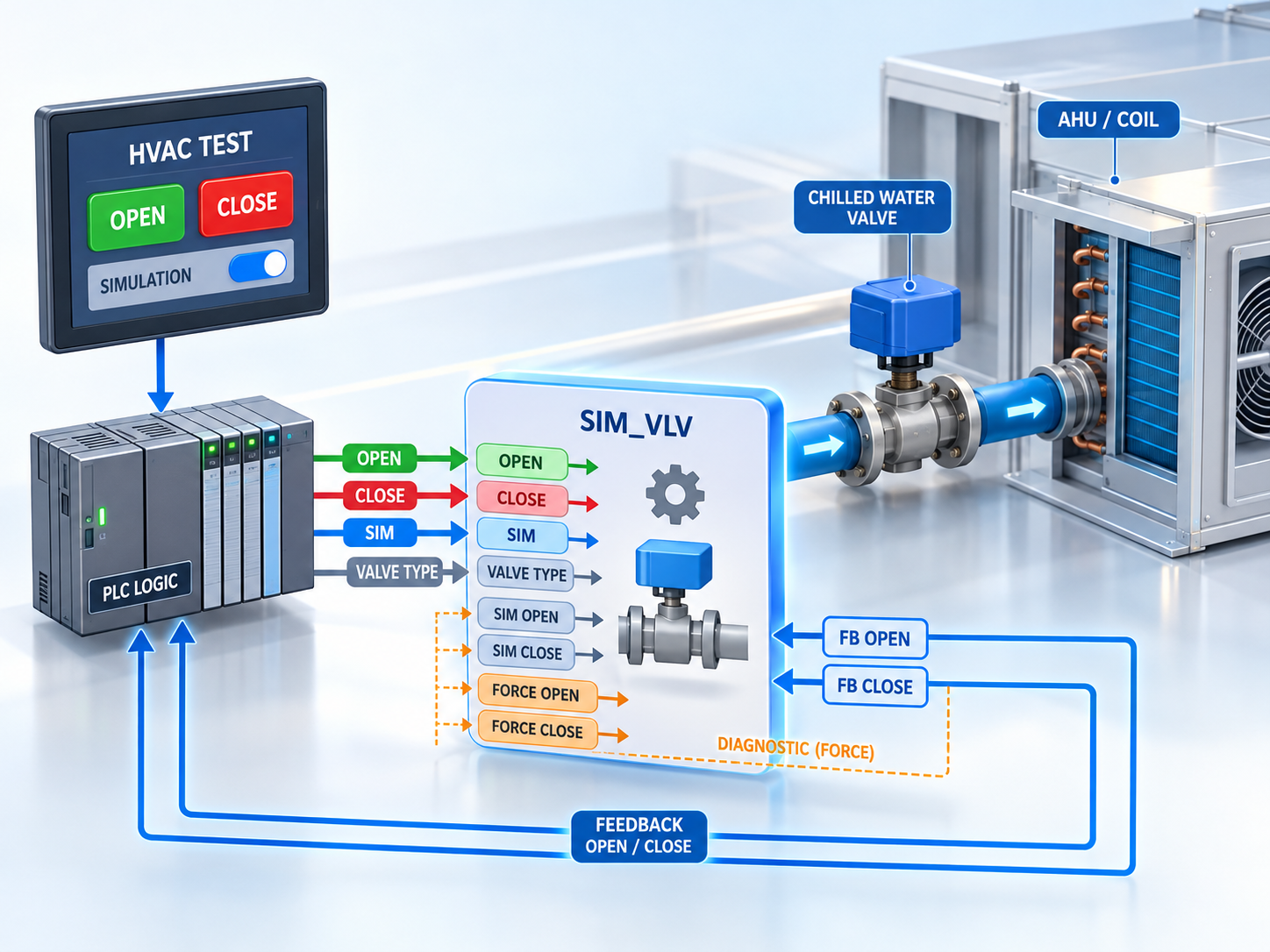

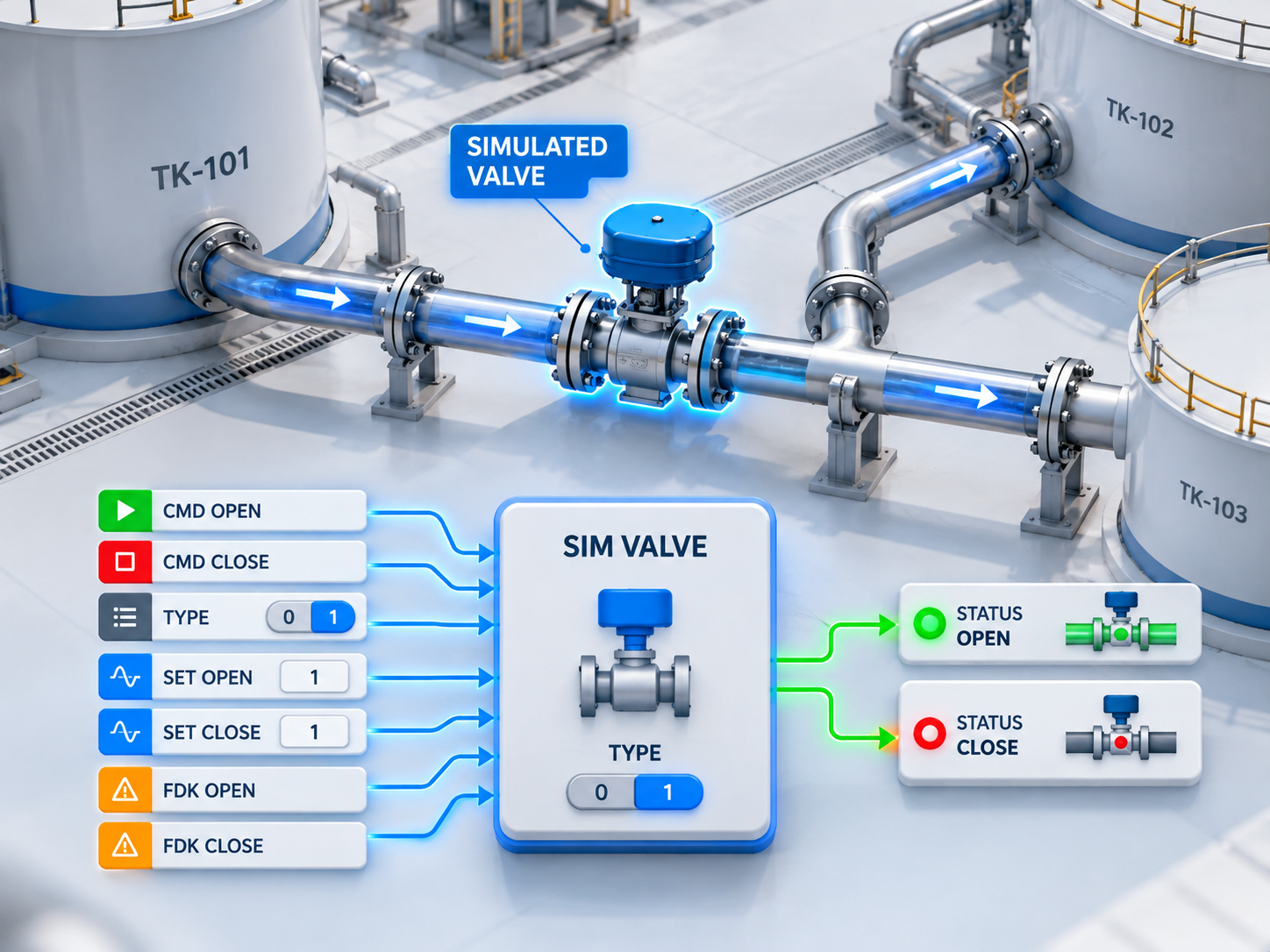

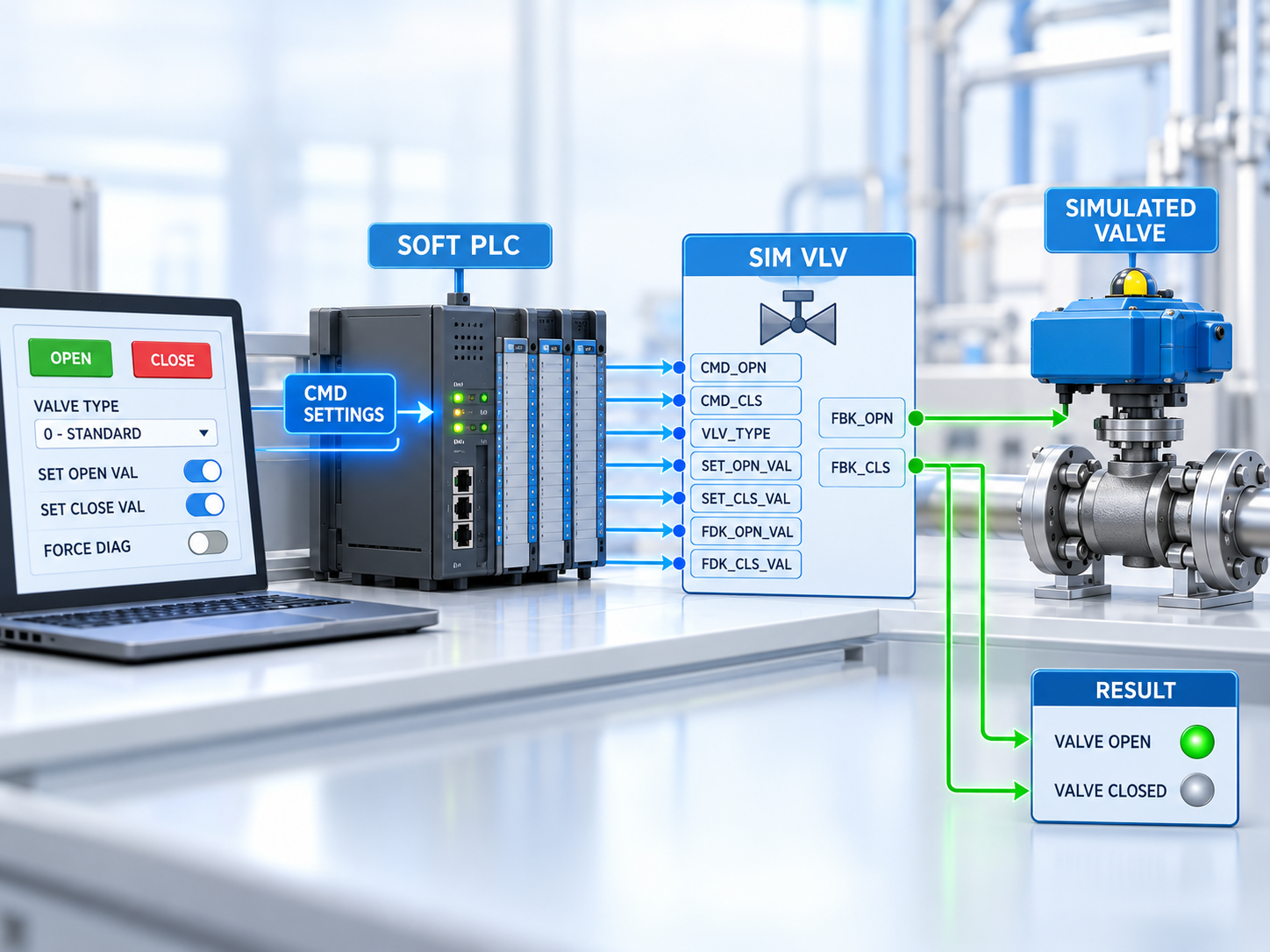

The A4U Valve Simulation Control Block provides a structured and reusable solution for simulating and testing valve behaviour within PLC-based industrial automation systems. The block is designed to process valve open and close commands, generate simulated feedback states and support forced diagnostic conditions, making it useful during software testing, commissioning, offline validation and soft-PLC applications where physical field I/O may not yet be available. Configurable valve-type selection allows the block to support different valve behaviours and control scenarios, while open and close command inputs are interpreted according to the selected valve type. Dedicated simulation values can be used to force open or closed feedback, allowing engineers to test logic sequences, interlocks and operator functions without operating real hardware. Forced diagnostic inputs can also be applied to reproduce feedback failures or abnormal conditions, helping validate alarm handling and fault-response logic before site deployment. The resulting open and closed feedback outputs reflect either the simulated state or the command-driven behaviour and can be monitored, logged or used by downstream PLC logic for system validation. Because the block is designed as a standard master control function, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to project requirements. By combining command handling, valve-type selection, simulated feedback and forced diagnostic conditions within one reusable structure, the A4U Valve Simulation Control Block helps reduce dependency on physical hardware during testing and provides a consistent foundation for safer and more efficient valve logic validation.

Simulate the Valve. Validate the Logic. Test Before Hardware.

Accelerate valve testing with the A4U Valve Simulation Control Block. The block accepts open and close commands, generates simulated valve feedback and supports forced diagnostic conditions for testing fault behaviour and control logic without relying on physical I/O. Independent of any specific SCADA platform, it provides a reusable and standardized solution for commissioning, offline validation and soft-PLC environments where reliable valve simulation is essential.

FAQs

What is the purpose of the Valve Simulation Control Block?
+
The block is designed to simulate or control valve behavior within a process automation system. It provides a structured way to process open/close commands, generate simulated feedback, and support testing without requiring the physical valve to be connected.
When is the Valve Simulation Control Block typically used?
+
The block is useful during PLC development, FAT, commissioning preparation, soft-PLC testing, and other situations where the real valve or physical I/O is not yet available.
How are valve commands handled during simulation?
+
The block accepts open and close commands from the operator or PLC control logic and interprets them according to the selected valve behavior. The resulting simulated state is then reflected through the valve feedback outputs.
Can the simulated valve feedback be monitored on an HMI or SCADA system?
+

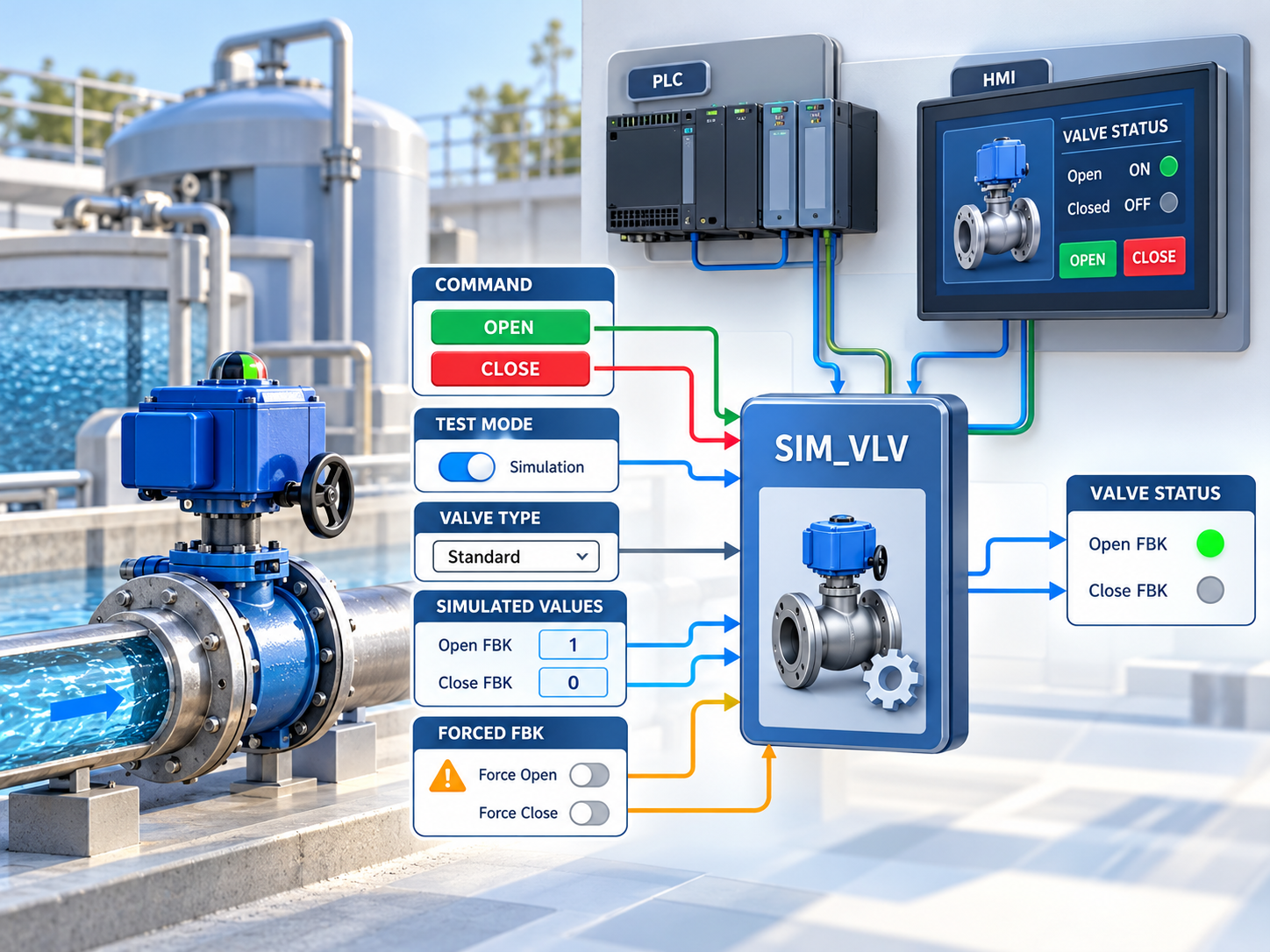

Yes. The simulated open and closed feedback signals can be displayed or logged in an HMI or SCADA system, making the block useful for validating operator screens, sequences, interlocks, and diagnostic behavior before real hardware is available.
What is the main benefit of using the Valve Simulation Control Block?
+
The main benefit is a standardized way to test valve commands, feedback, and diagnostic behavior without depending on the physical field device. This helps simplify offline testing, improve commissioning preparation, and verify PLC and HMI behavior before connecting real hardware.
