A4U Device Operational Status Monitoring Control Block – Unified Status Tracking for Industrial Equipment

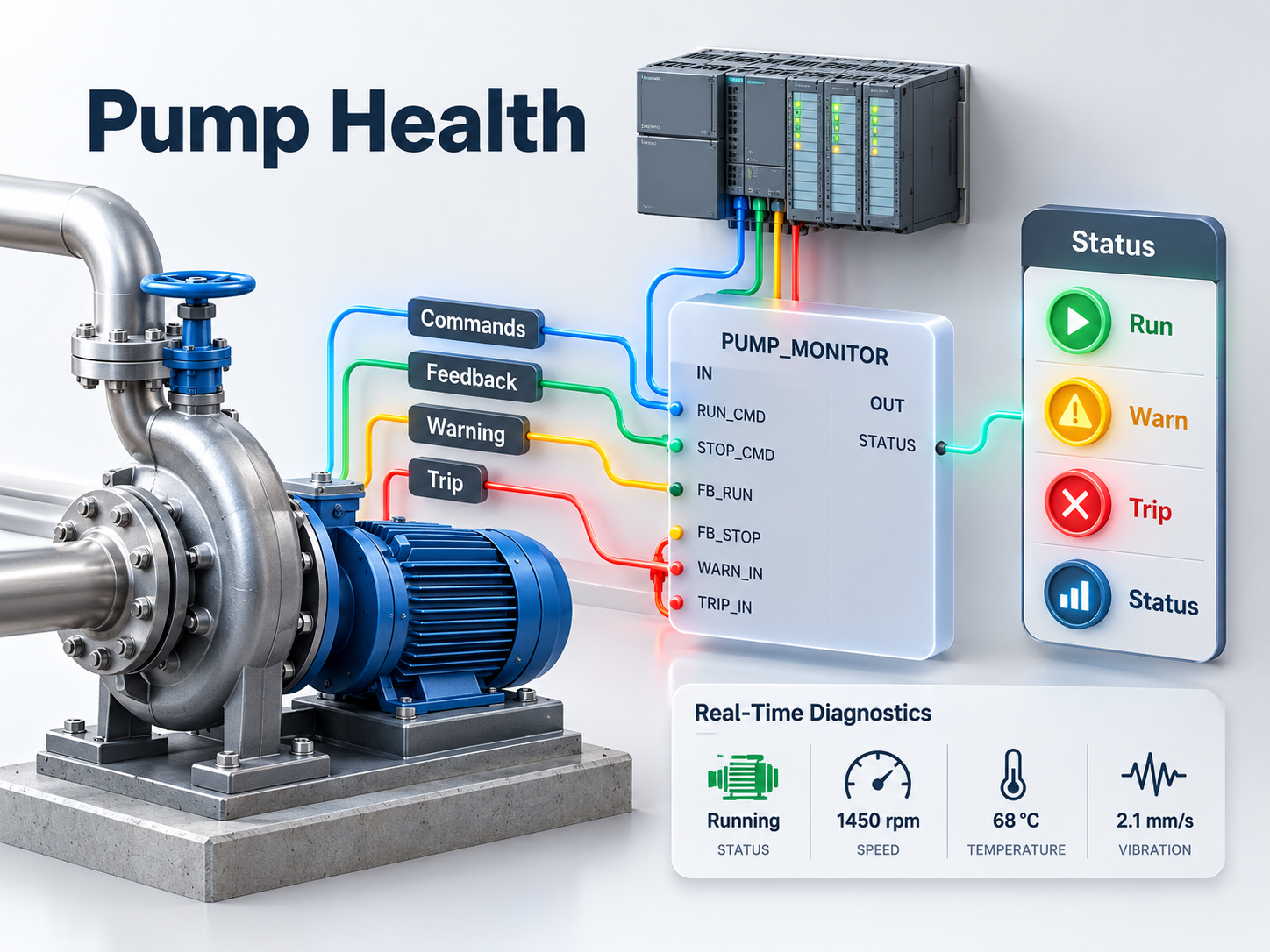

The A4U Device Operational Status Monitoring Control Block provides a structured and reusable solution for monitoring the operating state of different industrial devices within PLC-based automation systems. The block is designed to work with multiple device types, including motors, solenoid valves and similar equipment, using digital command, feedback, warning and trip signals to determine the current operational condition of the device. Dedicated command inputs can be configured according to the selected device type, while forward/open and backward/close feedback signals provide confirmation of the actual equipment state. Warning and trip summary inputs allow device-related abnormal conditions to be included in the status evaluation, helping the PLC distinguish between normal operation and faulted conditions. The resulting status is provided through a dedicated output that can represent states such as stopped, starting, running, stopping or faulted depending on the configured device type and application logic. This standardized status information can then be used by downstream PLC logic, HMI displays, alarms, diagnostics or supervisory systems, simplifying the way equipment states are represented across a project. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different visualization systems according to project requirements. By combining device-type selection, command evaluation, feedback monitoring, warning and trip handling, and unified status generation within one reusable structure, the A4U Device Operational Status Monitoring Control Block helps improve equipment visibility, simplify diagnostics and maintain consistent device-state handling across industrial automation applications.
