LIB - TIA - PROPORTIONAL CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Proportional Control Block – Simple, Responsive Control for Industrial Feedback Loops

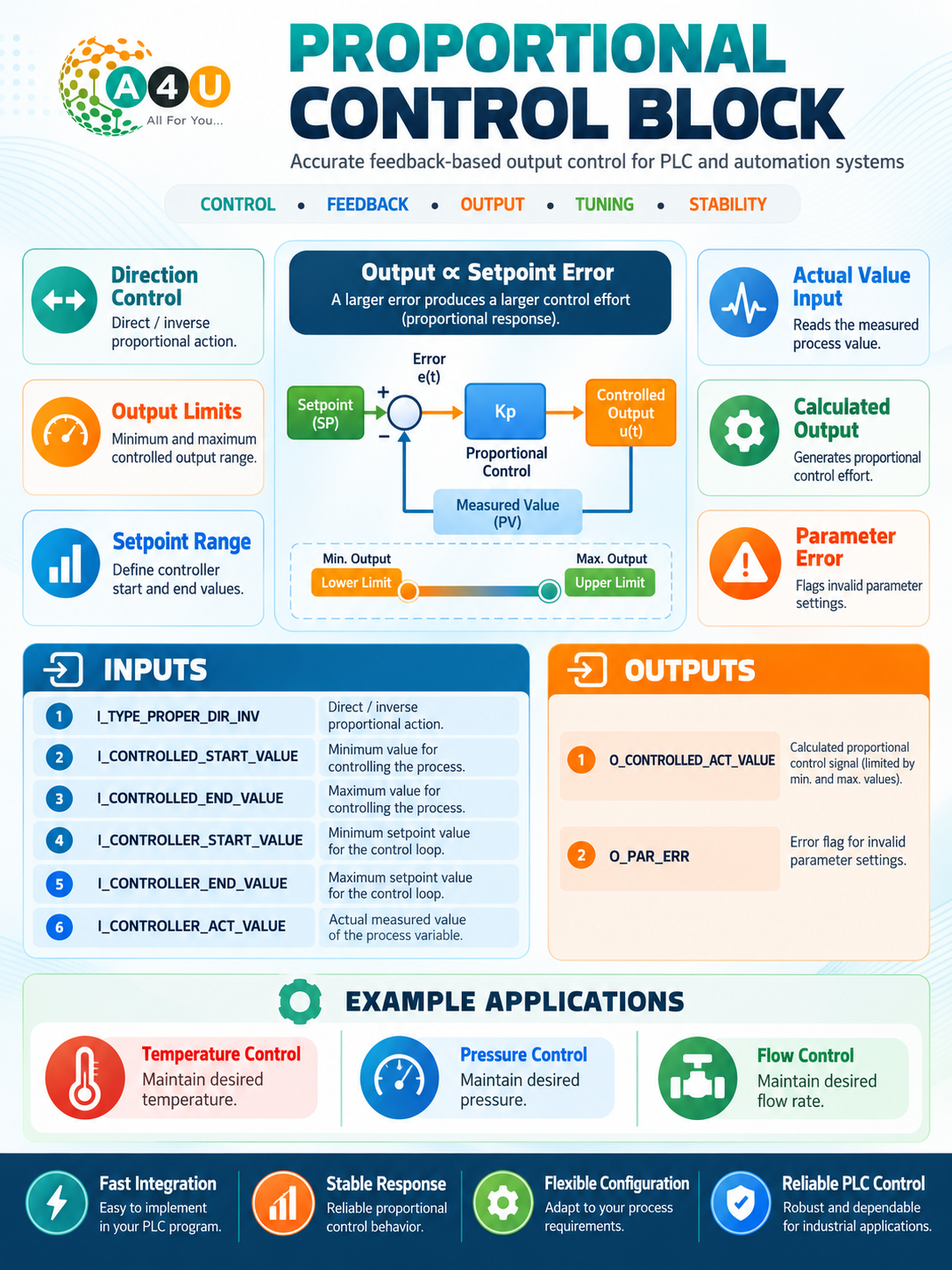

The A4U Proportional Control Block provides a structured and reusable solution for implementing proportional control within PLC-based industrial automation systems. The block calculates the control output in proportion to the difference between a desired reference range and the actual measured process value, providing a responsive control action that changes as the process deviates from its target. Configurable minimum and maximum controller values define the operating range of the process variable, while corresponding minimum and maximum controlled-output values define the range of the generated control signal. The block also supports configurable control direction, allowing the proportional action to operate in direct or inverse mode according to the process requirement. The calculated output is limited within the configured control range, helping maintain predictable behaviour and preventing the control signal from exceeding defined operating boundaries. An integrated parameter-error output indicates invalid or inconsistent configuration conditions, supporting commissioning and troubleshooting activities. This control structure is suitable for feedback applications such as temperature regulation, pressure control and flow control, where the output may be used to influence heating or cooling elements, pumps, valves or other process actuators. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to the project architecture. By combining proportional response, configurable input and output ranges, direction selection and parameter validation within one reusable structure, the A4U Proportional Control Block provides a consistent foundation for straightforward and maintainable feedback control across industrial automation applications.

Responsive Control. Simple Logic. Reliable Process Adjustment.

Implement straightforward feedback control with the A4U Proportional Control Block. The block calculates a control signal based on the difference between the desired operating range and the measured process value, while configurable input and output limits, direct or inverse action, and parameter-error monitoring support reliable operation. Independent of any specific SCADA platform, it provides a reusable and standardized solution for temperature, pressure, flow and other process applications requiring proportional control.

FAQs

What is the purpose of the Proportional Control Block?
+
The block is designed to generate a control output based on the difference between a desired setpoint and the actual measured process value. The larger the error, the greater the proportional control action.
How does proportional control work?
+
The block compares the process setpoint with the actual measured value and calculates a control response proportional to that difference. This provides a straightforward feedback-control method for regulating process variables.
What types of applications can use this control block?
+

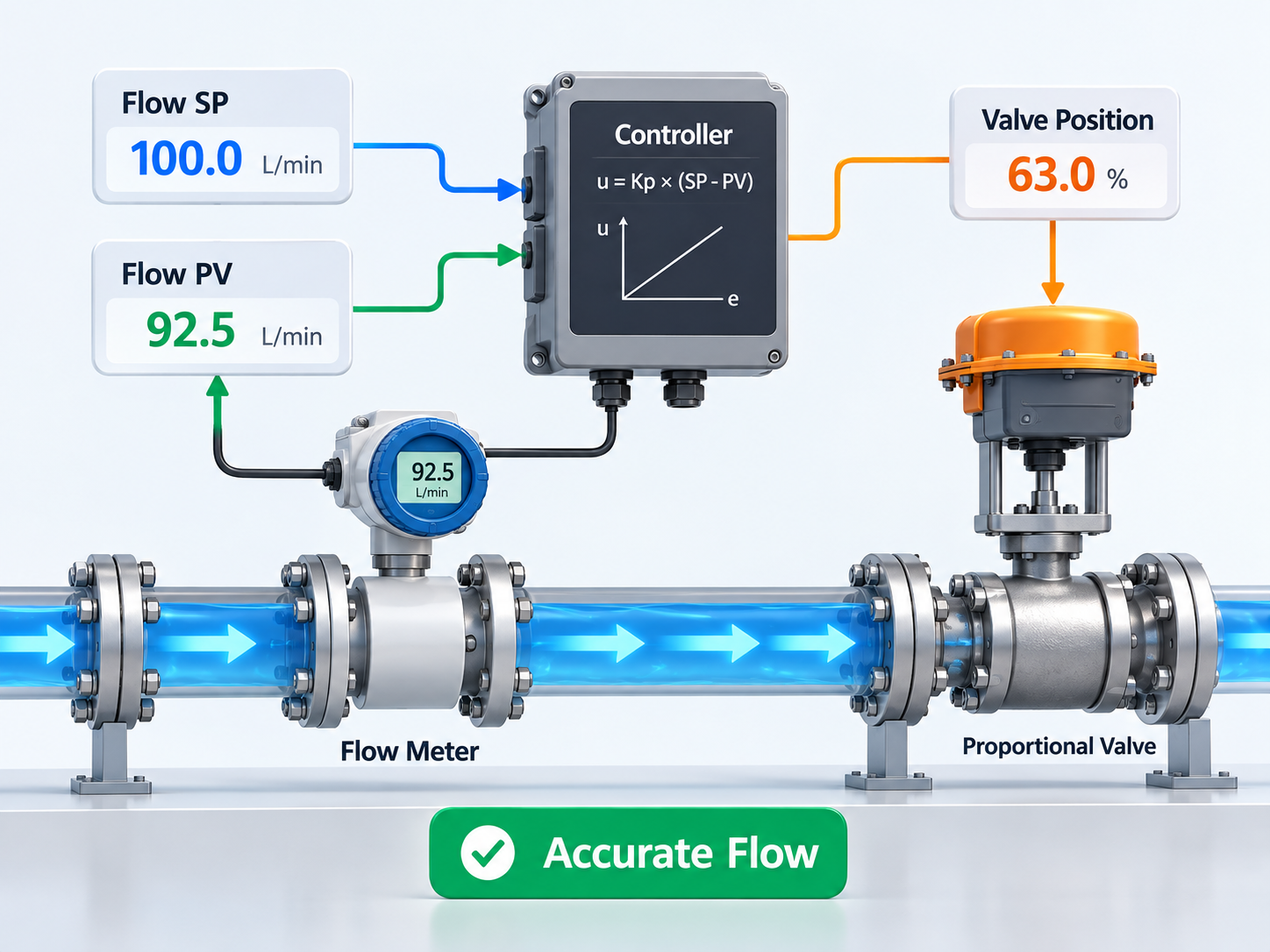

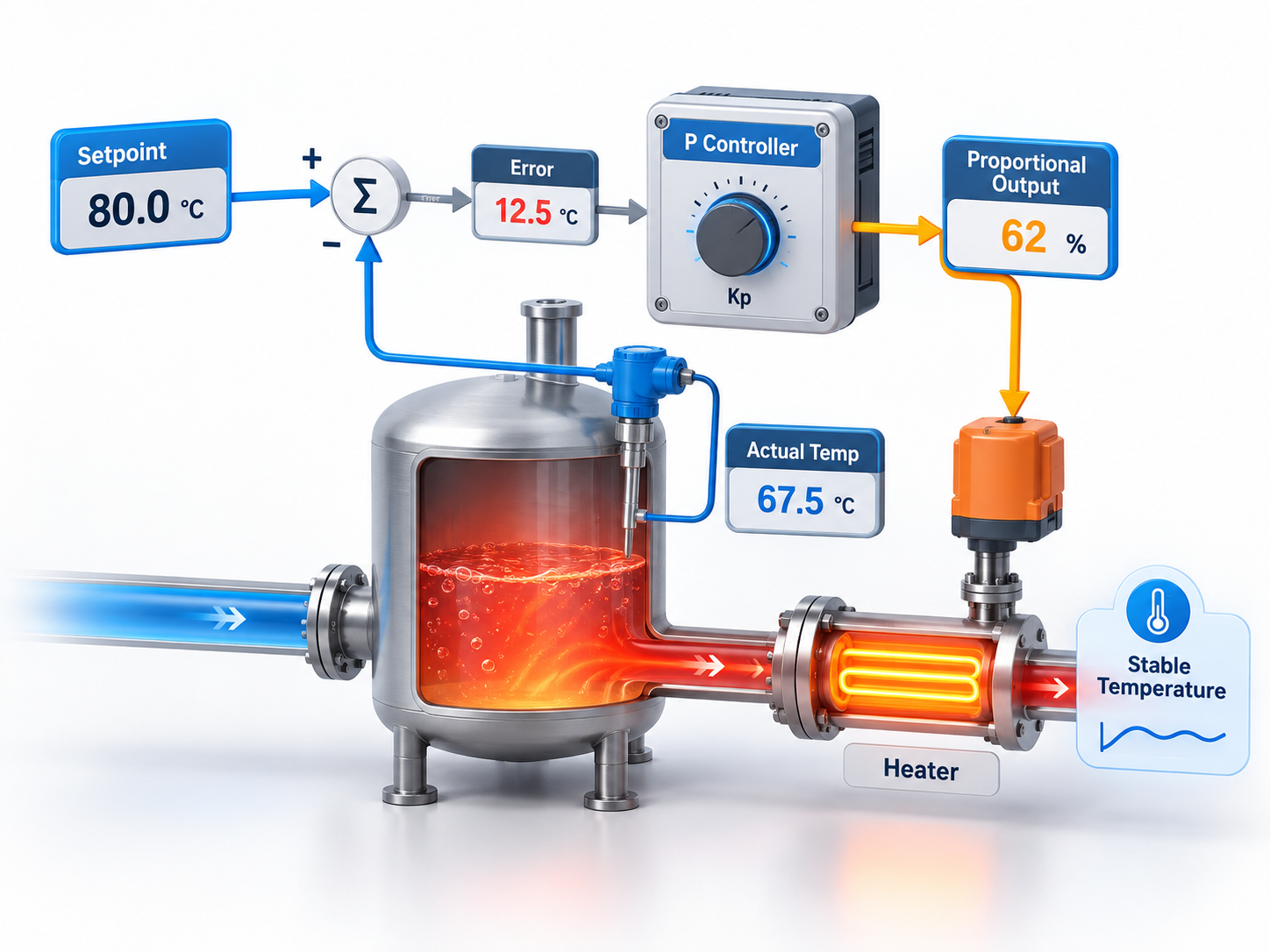

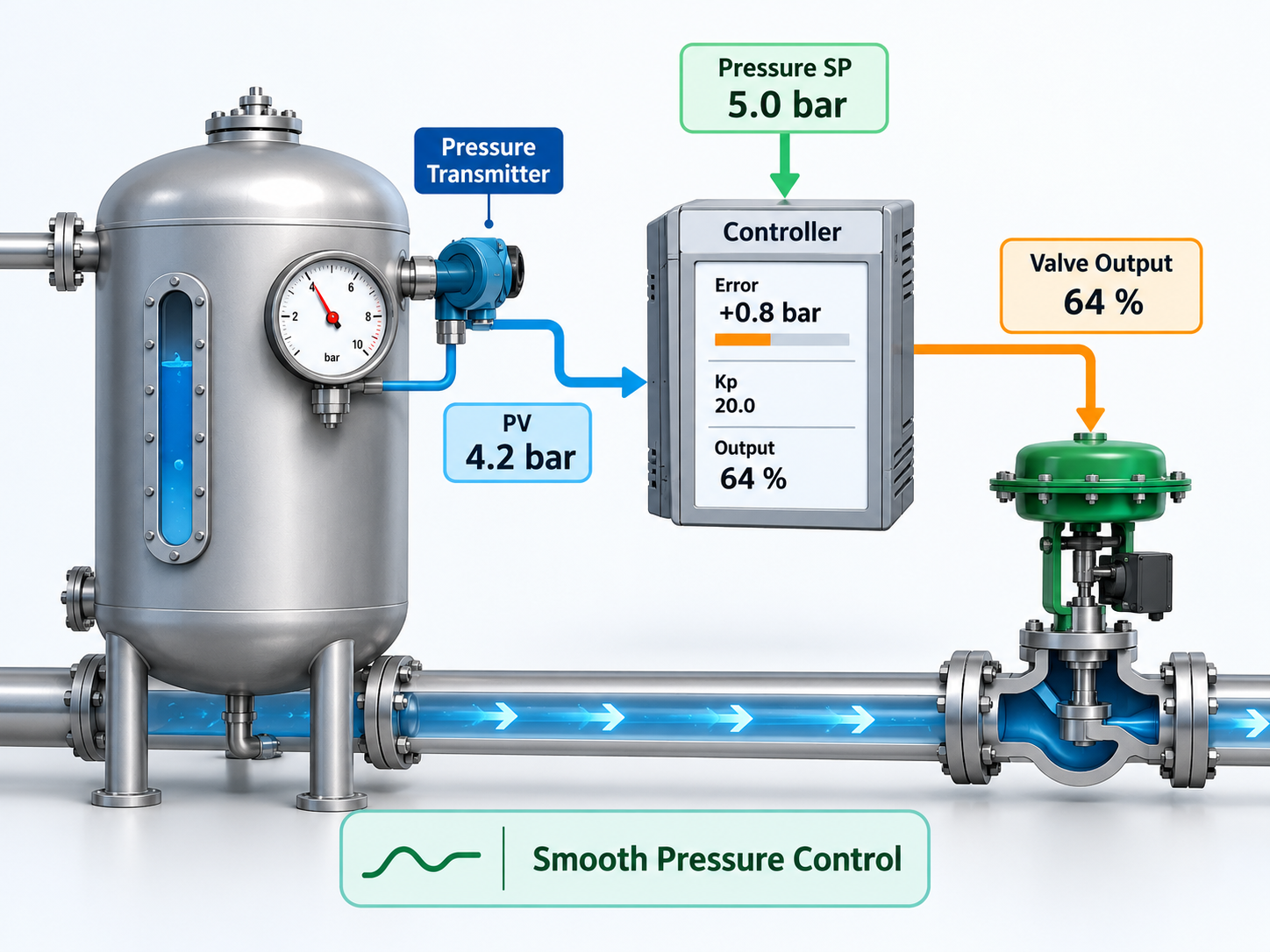

The block can be used in feedback-control applications such as temperature control, pressure regulation, and flow control, where a process variable must be adjusted toward a target value.
Can the proportional output be used by other PLC or HMI functions?
+
Yes. The calculated control output can be used by downstream PLC logic to regulate devices such as valves, pumps, heaters, or cooling equipment, and it can also be displayed through an HMI or SCADA system.
What is the main benefit of using the Proportional Control Block?
+
The main benefit is a standardized and reusable method for implementing basic proportional feedback control. It simplifies process-control logic, provides configurable operating ranges, and supports consistent control behavior across suitable applications.
