LIB - TIA - ENCODER CHECK CONTROL BLOCK

  • Price: €10.00

Our Services

Download Request

A4U Encoder Check Control Block – Reliable Multi-Channel Encoder Monitoring and Fault Detection

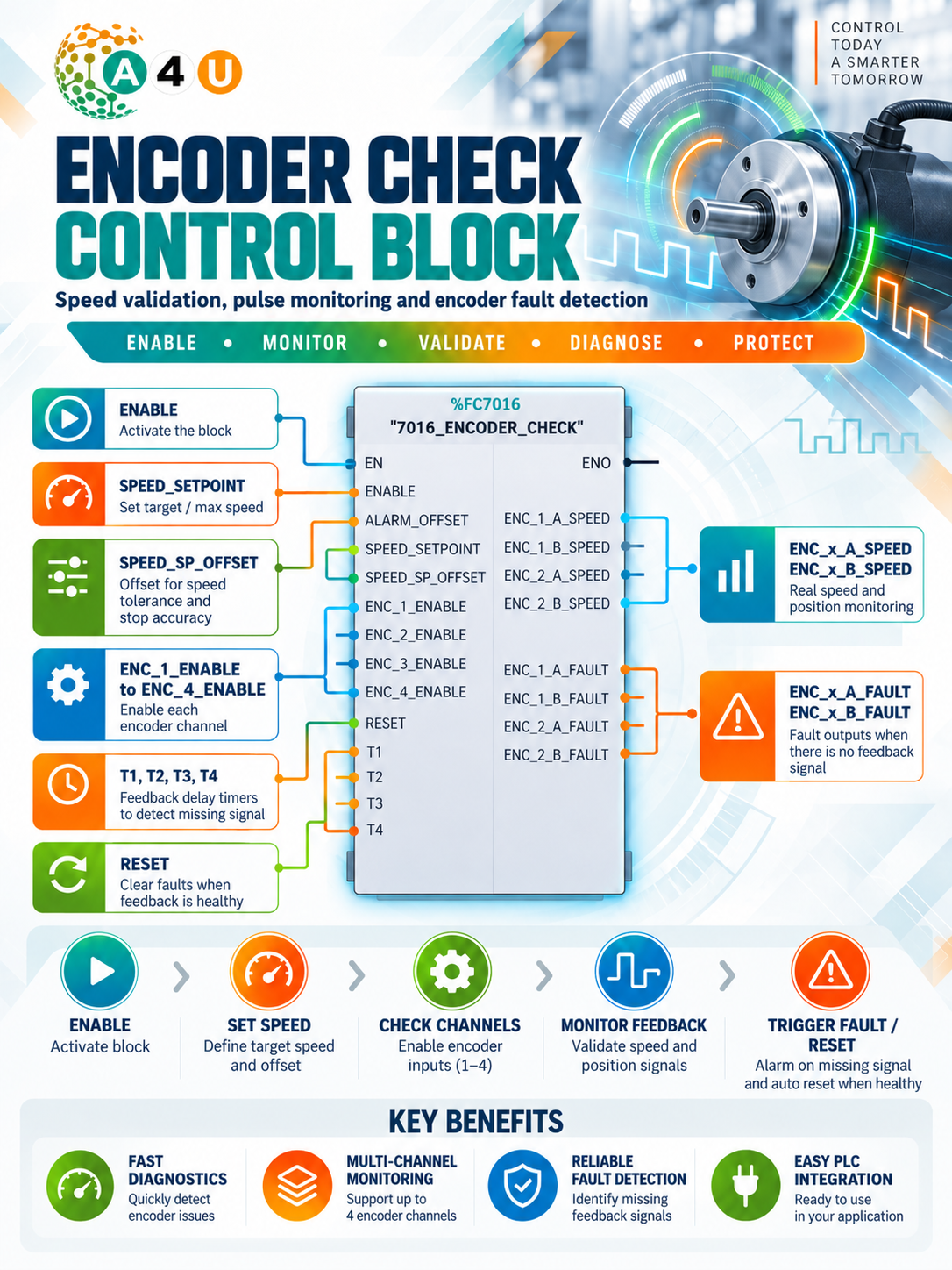

The A4U Encoder Check Control Block provides a structured and reusable solution for monitoring encoder feedback, speed conditions and fault status within PLC-based industrial automation systems. The block is designed to work with multiple encoder channels and can process individual enable signals together with speed references, speed offsets and timing parameters to verify correct encoder operation. Encoder pulse information can be used for position and speed monitoring, while configurable speed setpoint and offset values help ensure that monitored speed remains within the intended operating range. The block supports individual enable signals for up to four encoder channels, allowing each channel to be supervised separately according to the application requirement. Dedicated timer inputs provide configurable delay periods before a missing or failed feedback condition is declared as a fault, helping avoid false alarms caused by short interruptions or transient conditions. Real-value speed inputs from the encoder channels are monitored to support position and motion verification, while dedicated fault outputs indicate loss of physical feedback or unhealthy encoder conditions. A reset function allows fault states to be cleared after the relevant feedback signals have returned to a healthy condition. The block also includes diagnostic checks to help verify that speed-related parameters are configured correctly before operation. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to the project architecture. By combining multi-channel encoder enable control, speed monitoring, delayed fault detection, feedback supervision and reset handling within one reusable structure, the A4U Encoder Check Control Block helps improve motion-system diagnostics, simplify encoder supervision and provide a consistent foundation for reliable positioning and speed-monitoring applications.

Monitor Every Encoder. Detect Faults Early. Keep Motion Reliable.

Improve encoder supervision with the A4U Encoder Check Control Block. The block monitors multiple encoder channels using configurable speed references, individual channel enables, fault-delay timers and feedback signals, while dedicated fault outputs help identify missing or unhealthy encoder conditions. Independent of any specific SCADA platform, it provides a reusable and standardized solution for position, speed and motion applications requiring reliable encoder diagnostics and clear fault monitoring.

FAQs

What is the purpose of the Encoder Check Control Block?
+
The block is designed to monitor encoder feedback and verify that the expected speed and position-related signals are present. It supports encoder supervision within positioning and motion-control applications.
Can the block monitor more than one encoder channel?
+
Yes. The documented block includes enable and monitoring functions for multiple encoder channels, allowing several encoder feedback signals to be supervised within the same control function.
What encoder information can be monitored by the block?
+
The documented block includes speed-related feedback signals for the monitored encoder channels and uses these values to support position and motion supervision.
Can encoder faults be displayed on an HMI or SCADA system?
+
Yes. The individual fault signals and monitored encoder values can be made available to an HMI or SCADA system for operator monitoring, alarm indication, and troubleshooting.
What is the main benefit of using the Encoder Check Control Block?
+
The main benefit is a standardized method for supervising multiple encoder feedback channels, checking speed-related conditions, applying fault-detection delays, and generating clear fault indications. This helps improve consistency and diagnostics in positioning and motion-control applications.
