A4U Position Consistency Verification Control Block – Reliable Validation of Multi-Position Accuracy

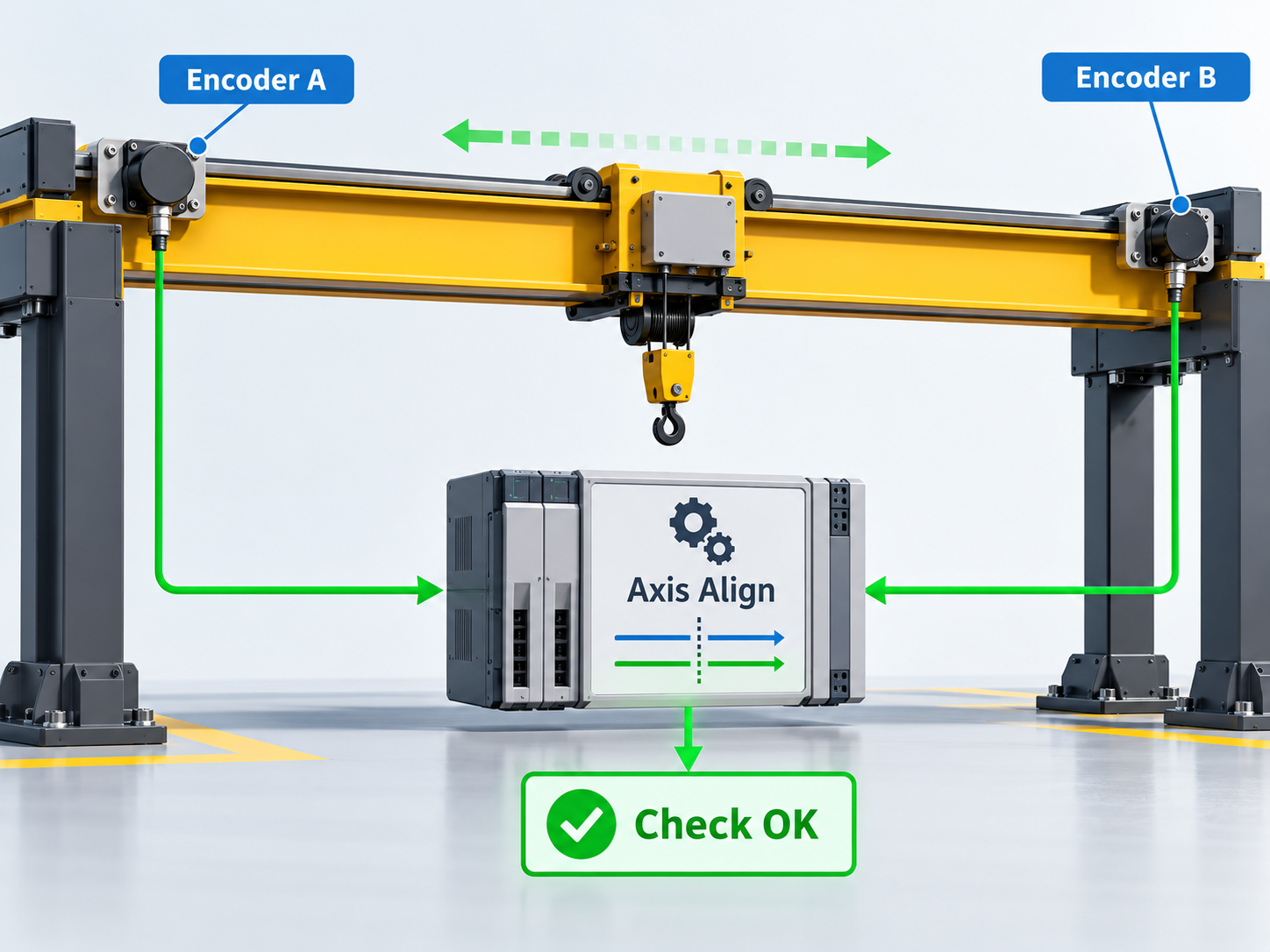

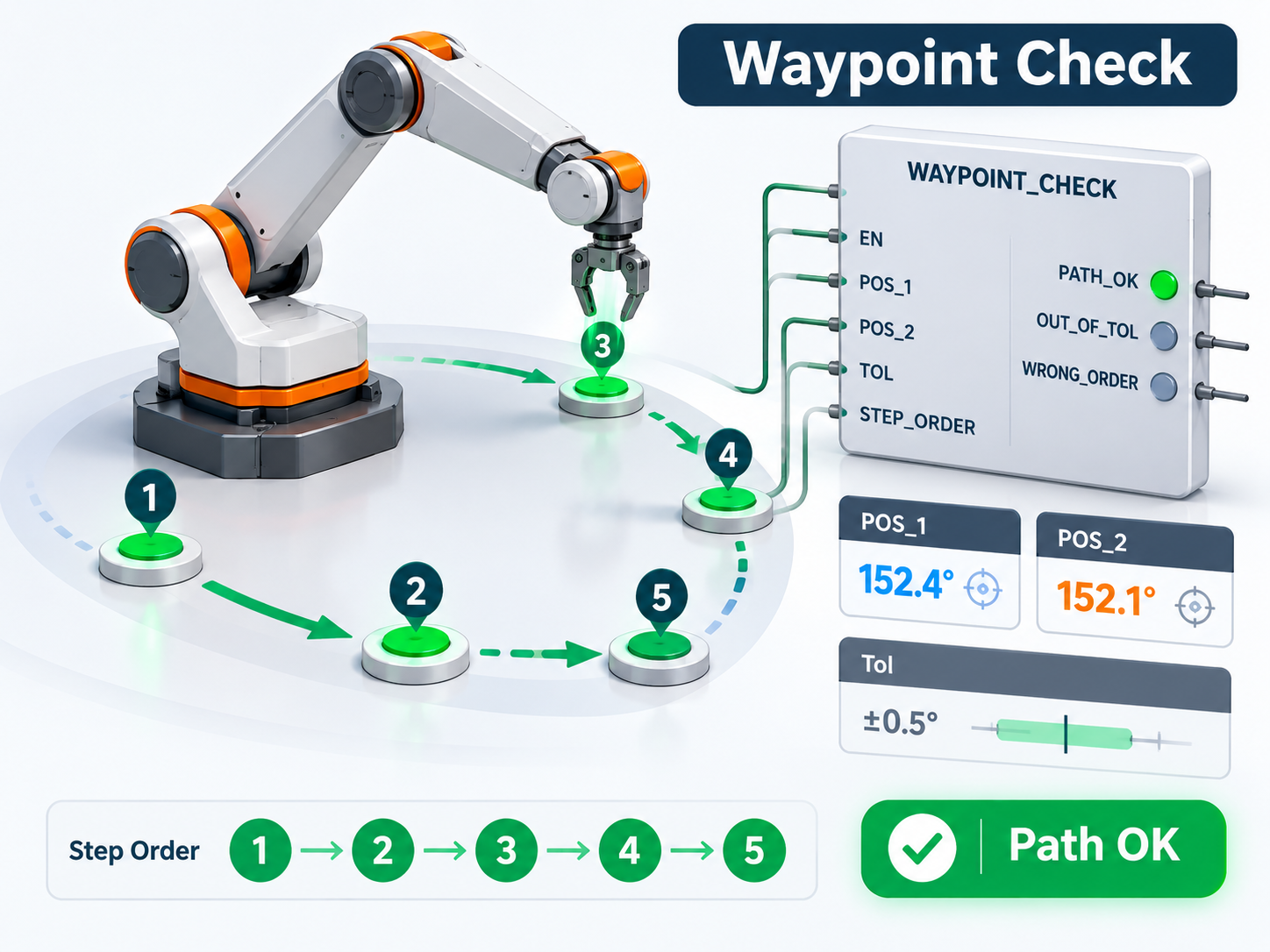

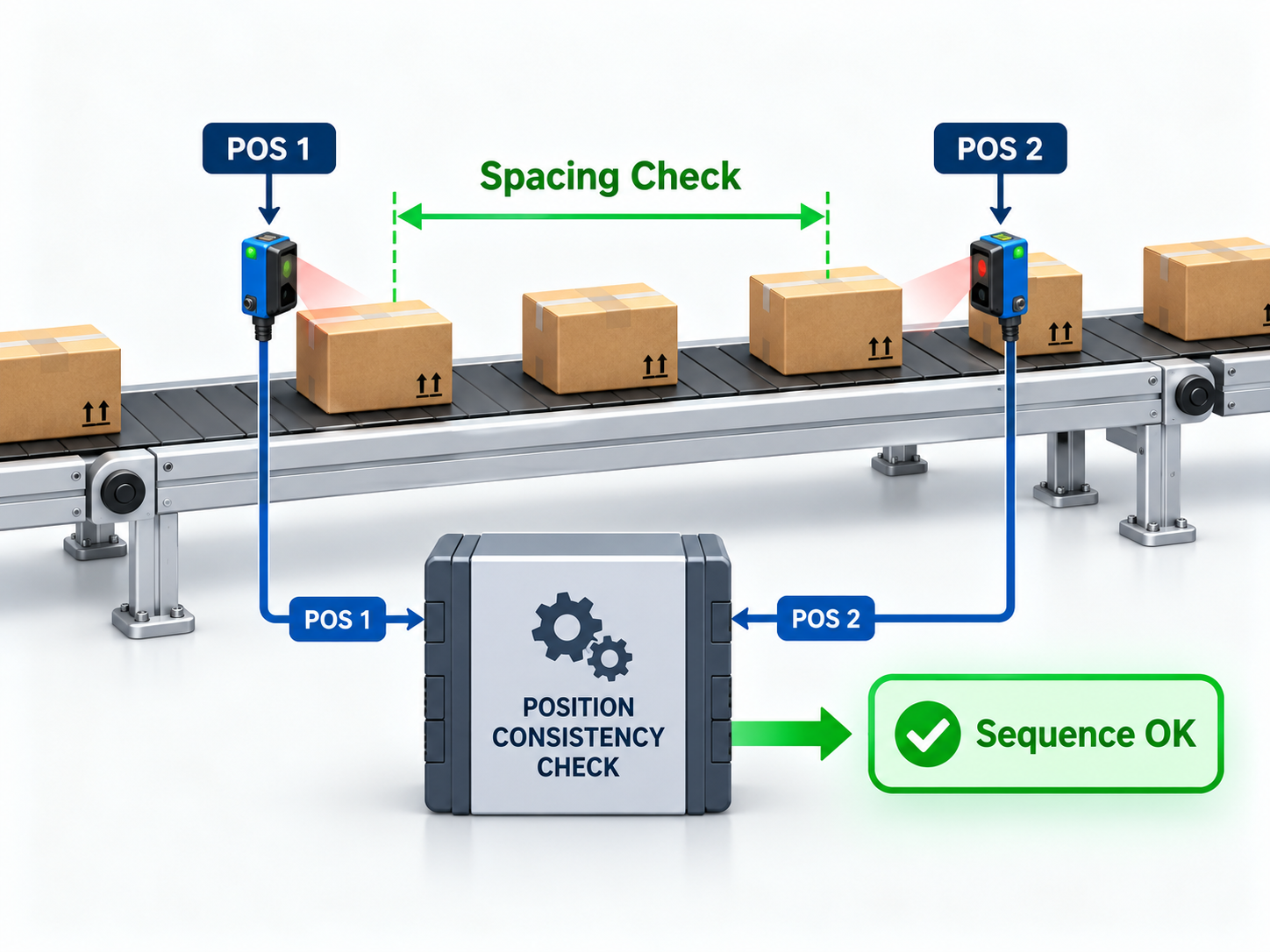

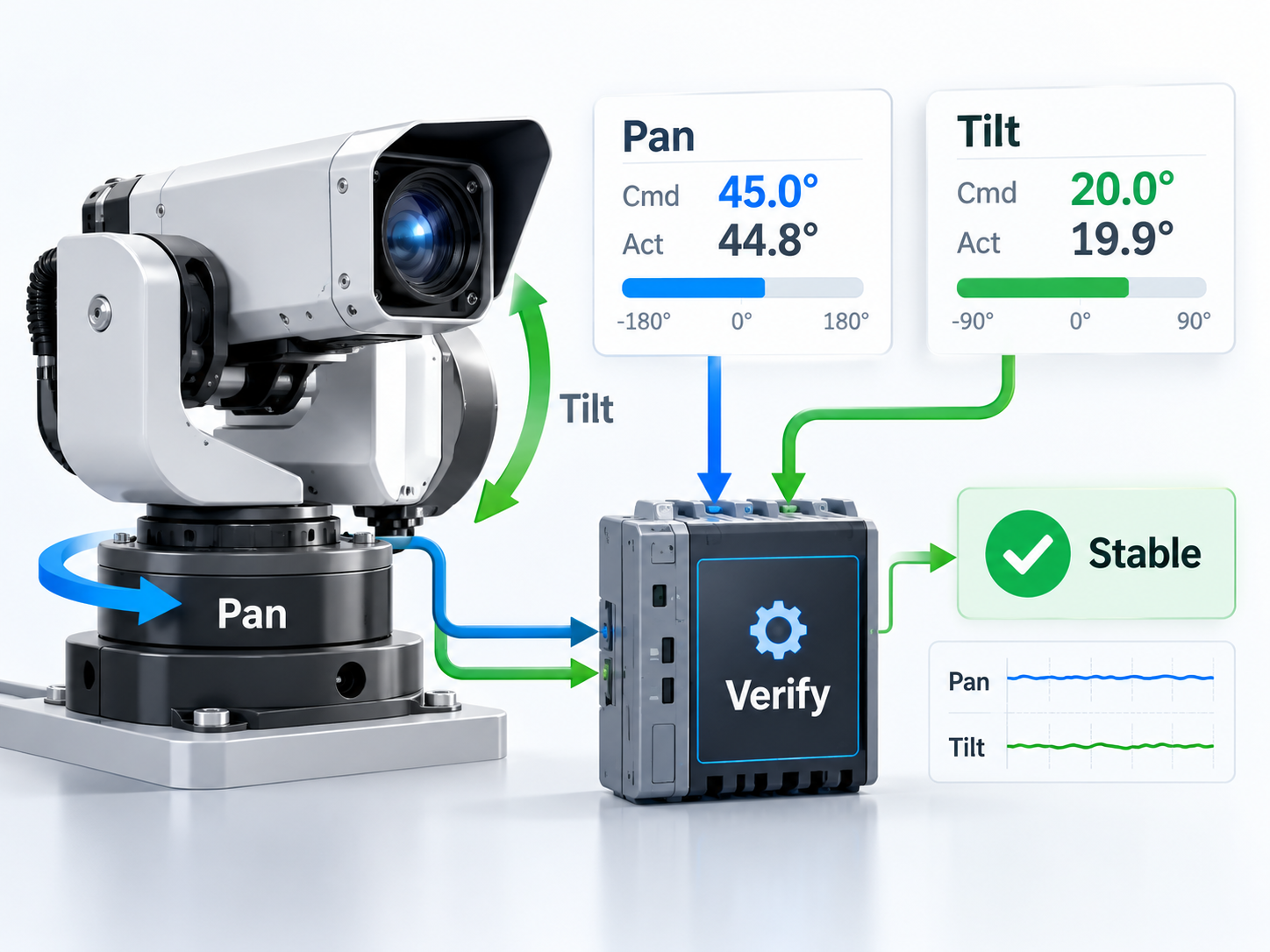

The A4U Position Consistency Verification Control Block provides a structured and reusable solution for checking the consistency of multiple position values within PLC-based industrial automation systems. The block compares two analog position values and evaluates them according to configured consistency criteria, helping determine whether the monitored positions remain within acceptable limits and follow the expected sequence or relationship. High and High-High consistency thresholds can be configured to identify when the positional difference or inconsistency exceeds defined limits, while dedicated outputs provide clear stabilized, High and High-High status indications for use in downstream PLC logic, alarms, diagnostics or supervisory systems. The block also uses stored previous position values to support checks related to sequential order, missing positions or gaps between successive values, while total-position parameters can be used to represent the number of positions included in the verification process. This makes the block suitable for applications such as conveyor systems, robotic motion verification, positional sensor validation and other processes where multiple position values must remain coordinated and consistent. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different visualization and monitoring systems according to the project architecture. By combining dual-position comparison, configurable consistency limits, previous-position tracking and dedicated status outputs within one reusable structure, the A4U Position Consistency Verification Control Block helps improve positional accuracy, identify inconsistencies earlier and provide a standardized approach to multi-position validation across industrial automation applications.
