LIB - TIA - ANALOG VOLTAGE CONVERSION BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Analog Voltage Converter 0–10V Control Block – Reliable Voltage Conversion with Integrated Limit Monitoring

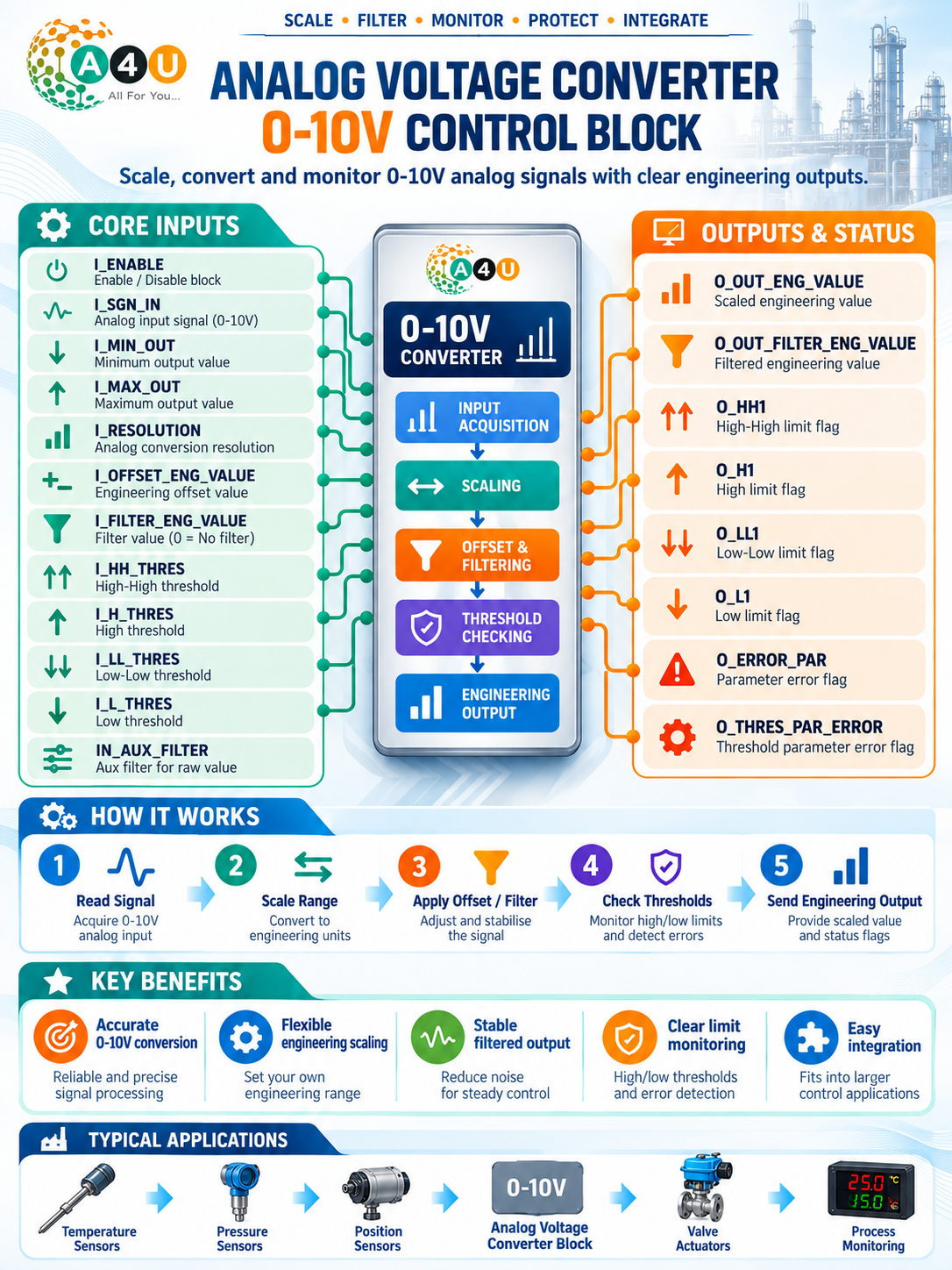

The A4U Analog Voltage Converter 0–10V Control Block provides a structured and reusable solution for converting 0–10V analog signals into meaningful engineering values within PLC-based industrial automation systems. The block processes the incoming analog voltage signal and scales it according to configured minimum and maximum engineering values, allowing raw sensor or device signals to be converted into usable process measurements for monitoring and control. Configurable resolution, engineering-value offset and filtering parameters provide flexibility for adapting the converted signal to different field devices and application requirements, while an auxiliary filter input supports additional signal conditioning where required. The block also includes configurable High-High, High, Low and Low-Low threshold values, allowing the control system to identify when the measured signal exceeds or falls below defined operating limits. Dedicated status outputs indicate these threshold conditions, while parameter-entry and threshold-configuration errors provide additional diagnostic visibility during commissioning and troubleshooting. Both converted and filtered engineering outputs are available for use by downstream PLC logic, making the block suitable for applications involving devices such as sensors, valve actuators, converters, displays and other equipment using 0–10V analog signals. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to project requirements. By combining 0–10V signal conversion, configurable engineering ranges, filtering, offset adjustment, threshold monitoring and diagnostic checks within one reusable structure, the A4U Analog Voltage Converter 0–10V Control Block provides a consistent foundation for reliable voltage-based process measurement and monitoring across industrial automation applications.

Convert 0–10V Signals into Clear, Reliable Process Values

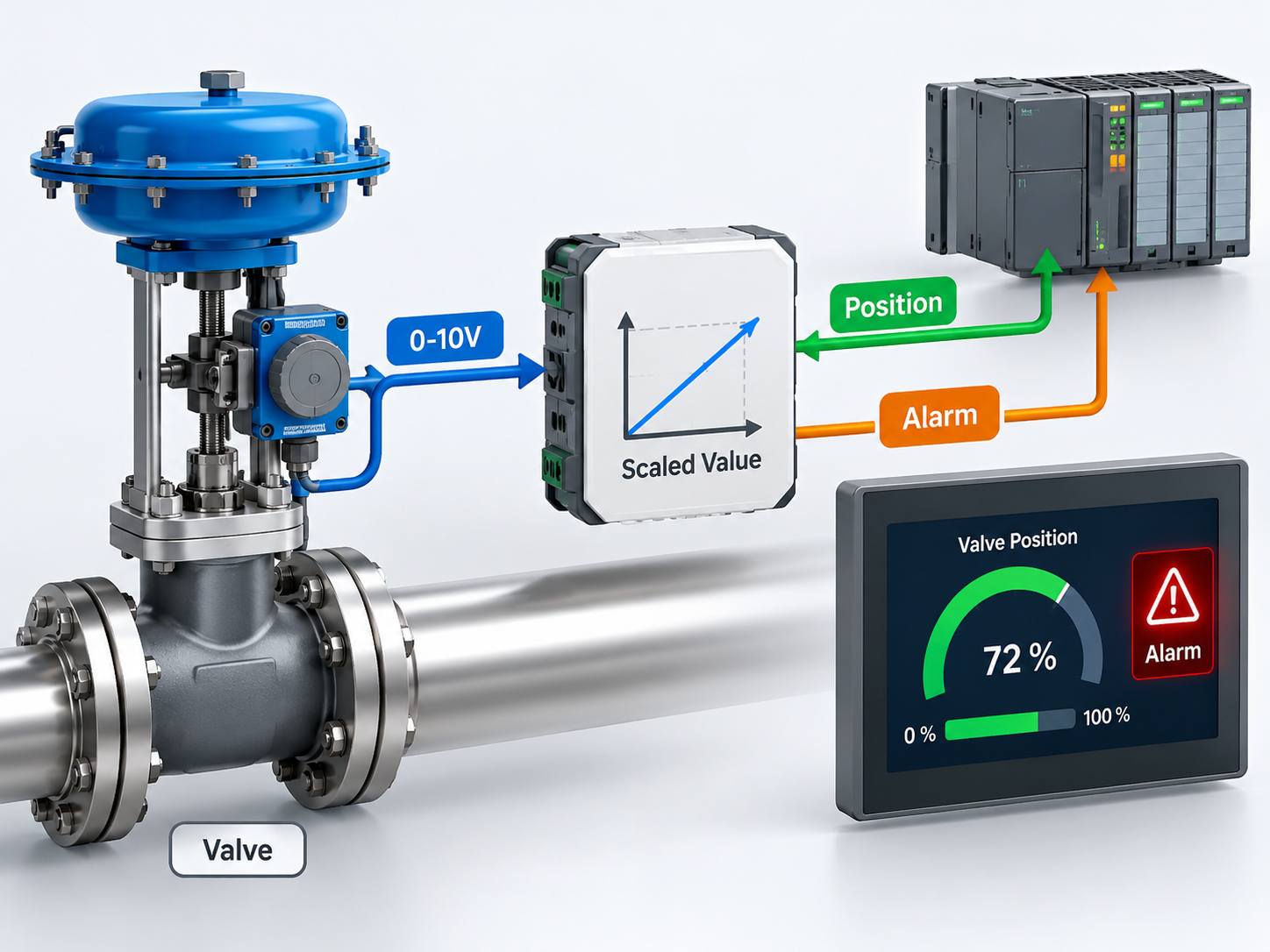

Simplify voltage-based signal processing with the A4U Analog Voltage Converter 0–10V Control Block. The block converts raw 0–10V inputs into configured engineering values while supporting filtering, offset adjustment, High-High, High, Low and Low-Low threshold monitoring, and parameter-error detection. Independent of any specific SCADA platform, it provides a reusable and standardized solution for sensors, actuators, converters and other industrial devices that rely on 0–10V analog signals.

FAQs

What is the purpose of the Analog Voltage Converter 0–10 V Control Block?
+
The block is designed to convert a 0–10 V analog input into a usable engineering value for PLC processing, monitoring, or control. This allows the incoming voltage signal to be represented in meaningful units such as percentage, pressure, level, or another configured engineering range.
How does the block convert the 0–10 V signal?
+
The block scales the incoming analog voltage according to the configured minimum and maximum engineering values. This allows the converted output to match the operating range required by the connected process or device.
Where can this control block be used?
+
The block can be used in industrial applications where field devices provide a 0–10 V analog signal, such as sensors, transmitters, converters, actuators, or other equipment requiring conversion to engineering values for PLC monitoring and control.
What is the main benefit of using the Analog Voltage Converter 0–10 V Control Block?
+
The main benefit is that analog scaling, threshold monitoring, offset adjustment, filtering, and parameter validation are combined in one reusable PLC block. This provides a consistent and structured approach to handling 0–10 V analog signals.
Can the block detect incorrect configuration values?
+
Yes. The block provides error indications for general parameter-entry problems and threshold-parameter errors, helping identify invalid configuration during commissioning or operation.
