Reliable Valve Control for Automated Process Systems

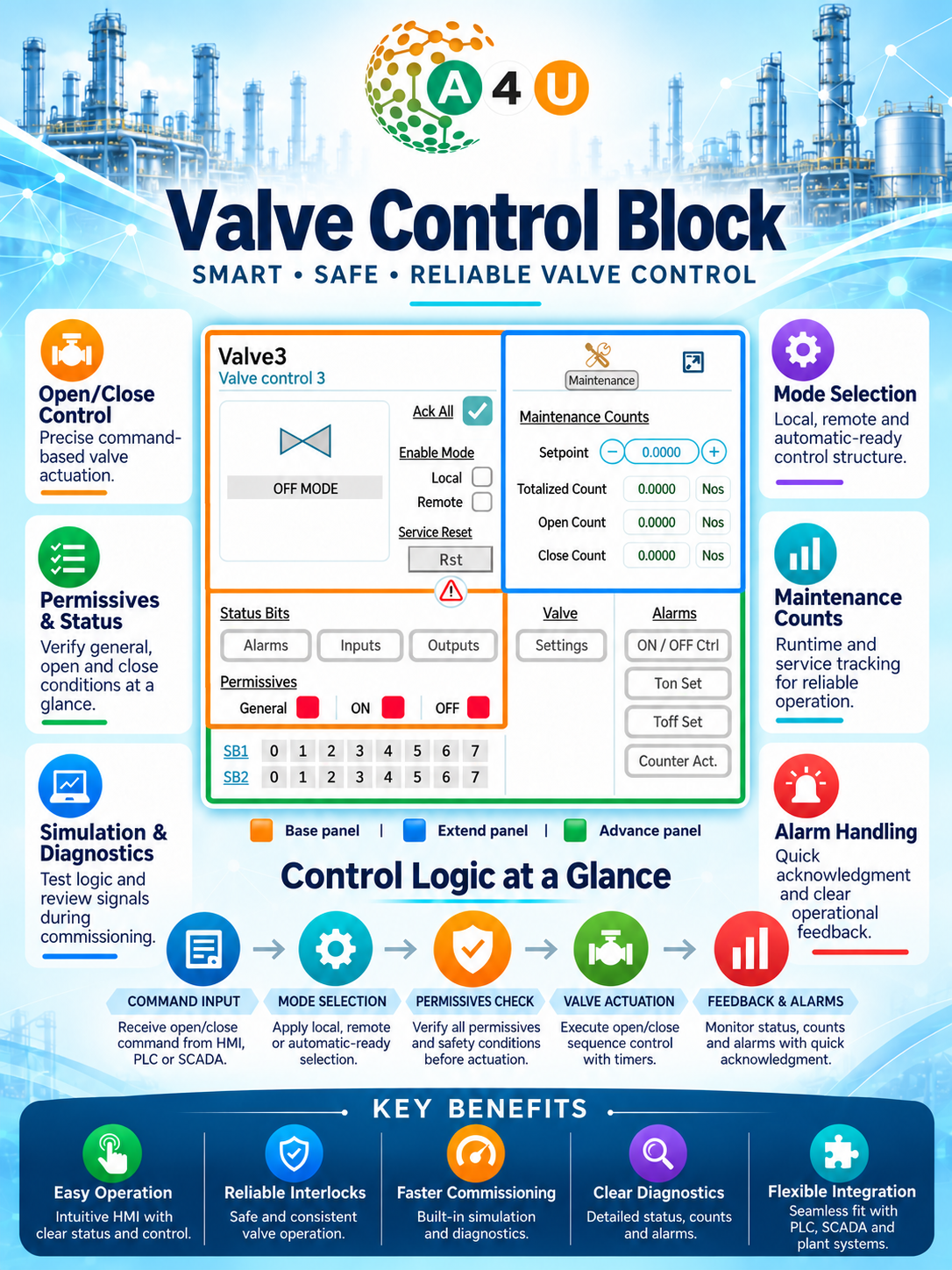

The A4U Valve Control Block provides a standardized and reusable solution for controlling open/close valves within PLC-based industrial automation systems. The block manages valve opening and closing commands while continuously monitoring Open and Close feedback signals to confirm the actual valve position. Integrated permissive and interlock handling ensures that valve movement is allowed only when the required operating conditions are satisfied. The block supports Automatic, Manual and Simulation operating modes, giving engineers and operators flexibility during normal operation, commissioning, maintenance and functional testing. Built-in fault and alarm monitoring helps identify missing position feedback, position faults, external faults, warnings and inconsistencies between the commanded and actual valve state. Simulation functionality allows the Open/Close sequence and alarm behaviour to be tested without operating the physical valve, making commissioning and troubleshooting easier. The integrated HMI/SCADA interface provides clear access to valve status, Open and Close commands, operating modes, permissives, alarms, maintenance functions and real-time input/output information. Dedicated SCADA templates are also developed for integration with Siemens TIA Portal HMI systems and AVEVA SCADA platforms, helping provide a consistent and familiar operator interface across different automation environments. By combining command control, feedback monitoring, operating modes, permissives, interlocks, alarms, simulation, maintenance and HMI/SCADA integration in one reusable structure, the A4U Valve Control Block helps create consistent valve control logic across industrial process applications while supporting standardized visualization through TIA Portal and AVEVA SCADA templates.
