LIB - RA - PID CONTROL BLOCK

  • Price: €15.00

Our Services

Download Request

Precise Process Control for Industrial Automation

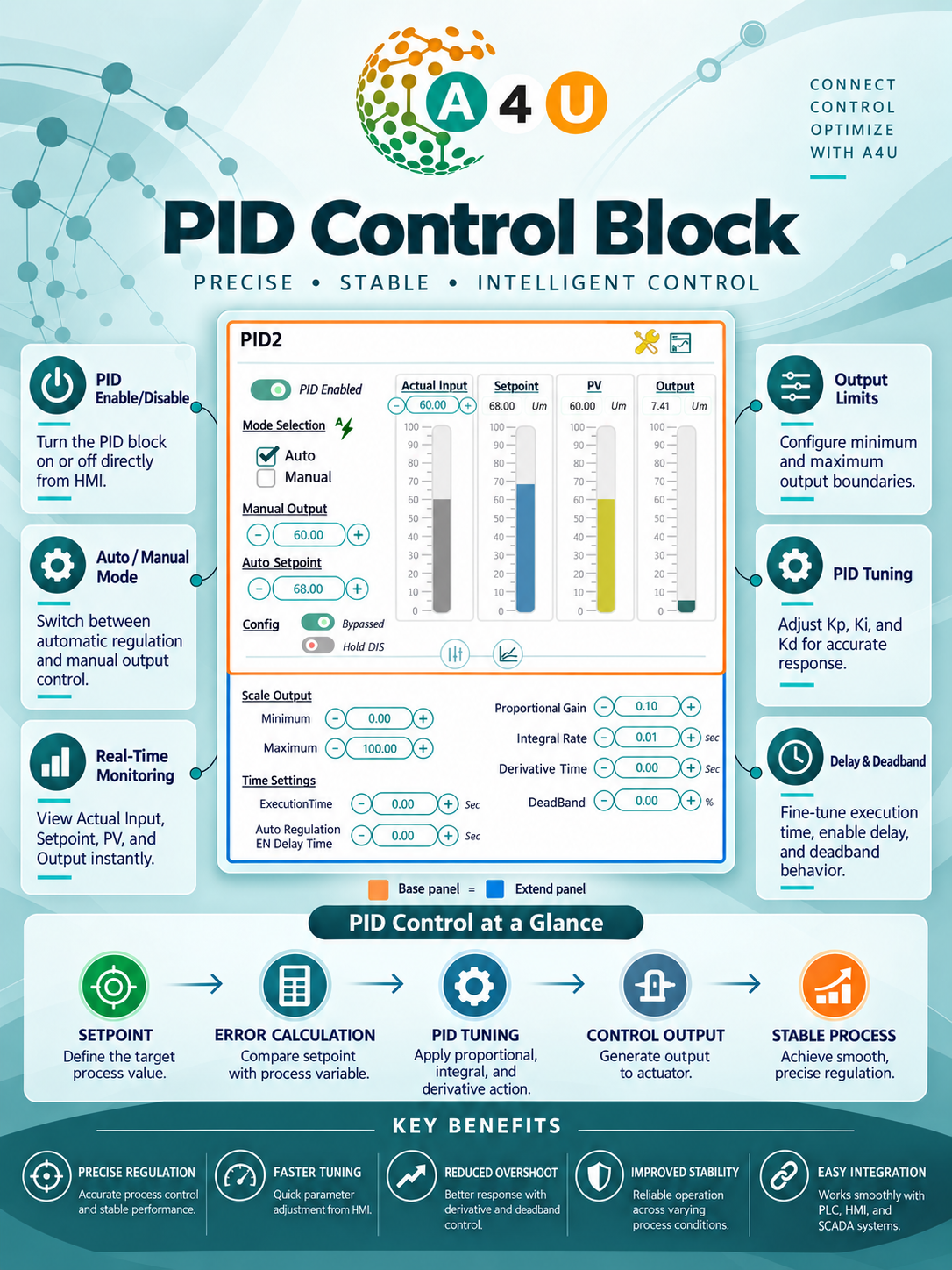

The A4U PID Control Block for Rockwell Automation provides a structured and reusable closed-loop control solution for industrial automation applications requiring accurate regulation of process variables. The block continuously compares the required setpoint with the measured process variable and calculates the necessary control output using Proportional, Integral and Derivative control principles, helping maintain stable and responsive process operation. It can be applied to a wide range of applications including temperature, pressure, flow, level and speed control, making it suitable for systems involving control valves, pumps, motors, heating equipment and other continuously regulated devices. The block includes configurable Proportional Gain (Kp), Integral Gain (Ki), Derivative Gain (Kd), deadband and minimum and maximum output limits, allowing the controller response to be adapted to different process requirements. Manual and Automatic operating modes provide flexibility for normal production, commissioning, maintenance and troubleshooting, while integrated simulation functions allow engineers to test setpoint, process variable, manual output and tuning parameters during validation activities. Diagnostic functions monitor operating conditions such as maximum and minimum output limits, parameter-entry errors, process deviation and control stability, providing useful information for fault identification and recovery. When implemented on Rockwell Automation PLC systems and integrated with an HMI or SCADA platform, operators can monitor Setpoint, Process Variable, Actual Input and controller Output in real time, switch between Manual and Automatic operation, enable or disable PID control, adjust tuning parameters, define output limits and acknowledge alarms. By combining reusable PID logic, configurable tuning, operating modes, diagnostics, simulation and operator visualization within one standardized solution, the A4U PID Control Block provides a consistent foundation for reliable and maintainable closed-loop process control across industrial automation projects.

A4U PID Control Block

chieve stable and consistent process regulation with the A4U PID Control Block implemented for Rockwell Automation PLC systems. The block combines configurable Proportional, Integral and Derivative control with Manual and Automatic operation, deadband, output limits, diagnostics and simulation functions to support accurate and maintainable closed-loop control. With HMI and SCADA integration, operators can monitor process values, controller output, tuning parameters and alarm conditions from a centralized interface, making the solution suitable for temperature, pressure, flow, level and speed-control applications.
