LIB - TIA - LINEAR TO ROTATIONAL SPEED CONVERSION BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Linear to Rotational Speed Conversion Control Block – Accurate m/min to RPM Calculation for Mechanical Drive Systems

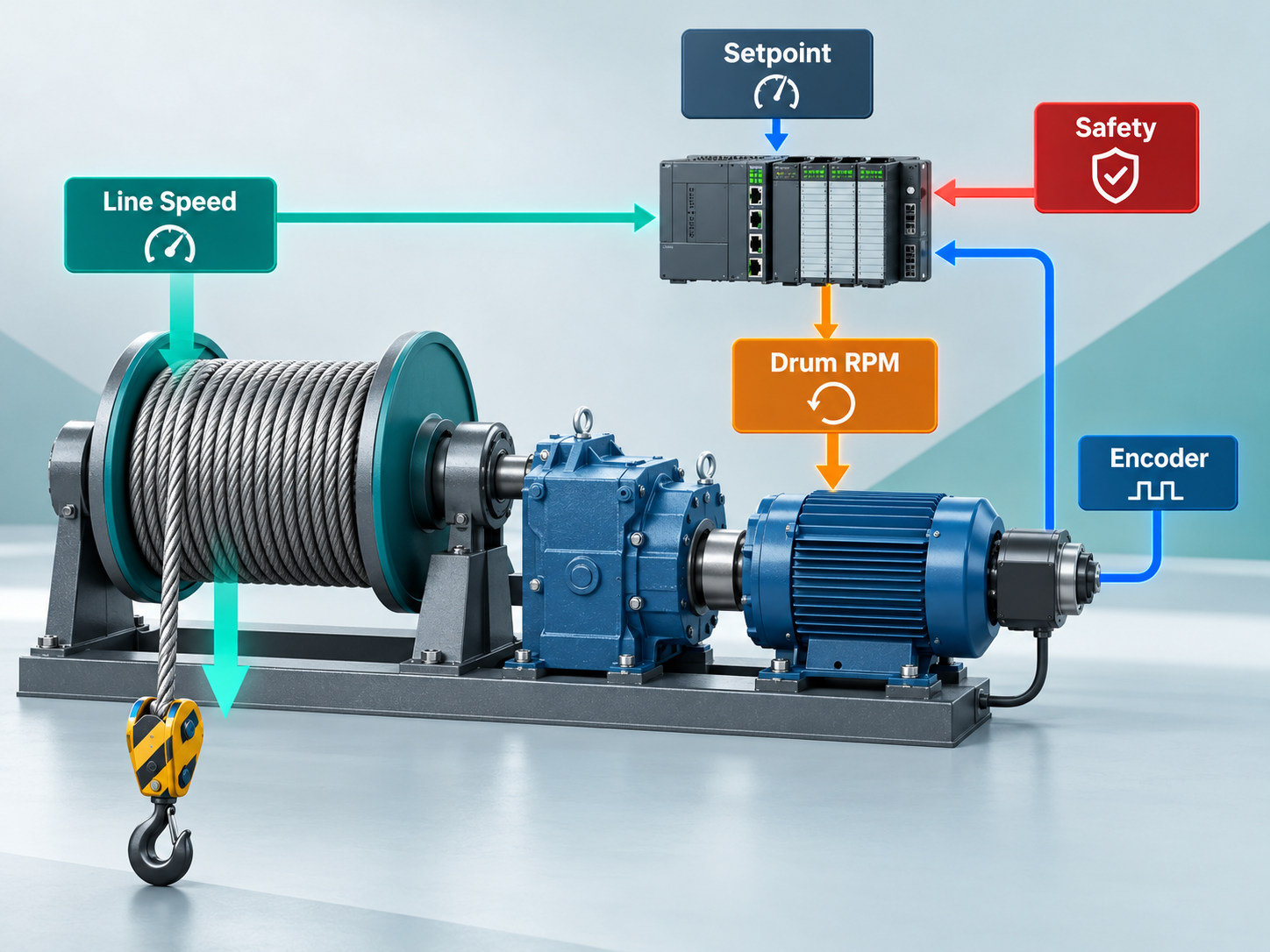

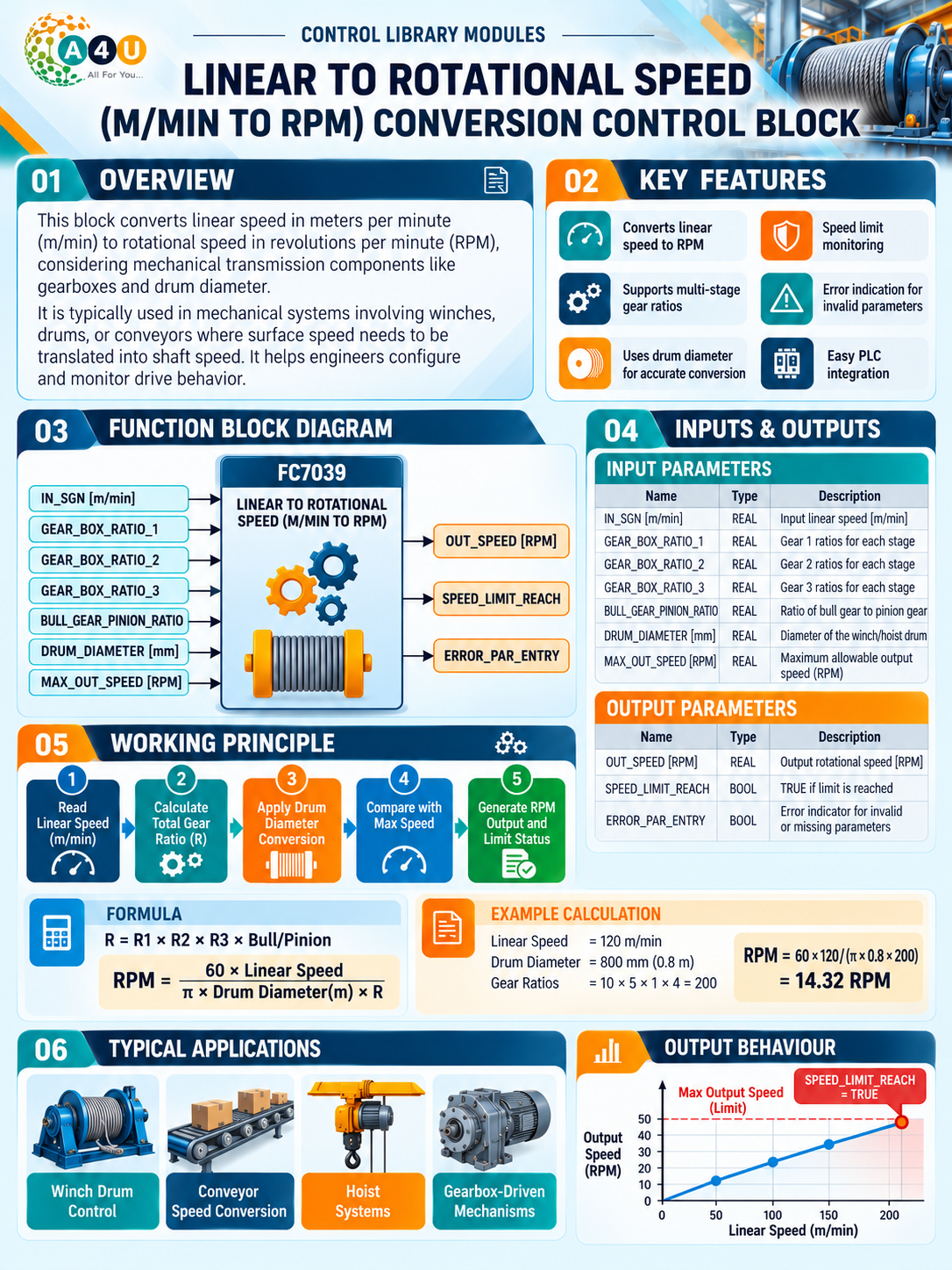

The A4U Linear to Rotational Speed Conversion Control Block provides a structured and reusable solution for converting linear speed in meters per minute into rotational speed in revolutions per minute within PLC-based industrial automation systems. Designed for applications such as winches, drums, conveyors and other mechanical systems where surface or line speed must be translated into shaft speed, the block calculates the required RPM by considering the configured drum diameter together with the complete mechanical transmission ratio. Up to three gearbox ratios and a bull gear/pinion ratio can be included in the calculation, allowing the output speed to reflect the actual drivetrain configuration rather than a simple direct conversion. The block continuously converts the incoming linear speed into the corresponding rotational speed and compares the calculated result with a configurable maximum output speed limit. When the calculated RPM reaches or exceeds this configured limit, a dedicated speed-limit status output is activated, providing a clear signal for downstream PLC logic, alarms or protective actions. Integrated parameter-error monitoring indicates invalid or missing configuration values, helping engineers identify setup problems during commissioning and troubleshooting. This makes the block suitable for drive sizing, speed-reference generation, drivetrain monitoring and motion-control applications where accurate coordination between linear and rotational speed is required. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to project requirements. By combining linear-speed conversion, multi-stage gear-ratio handling, drum-diameter compensation, maximum-speed supervision and parameter validation within one reusable structure, the A4U Linear to Rotational Speed Conversion Control Block provides a consistent foundation for reliable speed calculation across industrial motion and drive applications.

Convert Line Speed into the RPM Your Drive Needs.

Simplify drivetrain speed calculation with the A4U Linear to Rotational Speed Conversion Control Block. The block converts linear speed in m/min into rotational speed in RPM while accounting for drum diameter, multiple gearbox stages and bull gear/pinion ratio. With configurable maximum-speed monitoring and parameter-error detection, it provides a reusable and standardized solution for winches, drums, conveyors and other mechanical systems where accurate linear-to-rotational speed conversion is essential.

FAQs

What is the purpose of the Linear to Rotational Speed Conversion Control Block?
+
The block is designed to convert a linear speed expressed in meters per minute into the corresponding rotational speed in revolutions per minute. It considers the mechanical transmission and drum dimensions so that the calculated RPM reflects the actual machine configuration.
What types of applications can use this control block?
+
The block is suitable for mechanical systems such as winches, drums, conveyors, and similar applications where surface or line speed must be converted into shaft or drive rotational speed.
How does the block calculate rotational speed?
+
The block uses the input linear speed together with the drum diameter and the total transmission ratio. The total gear ratio is derived from the individual gearbox stages and the bull gear/pinion ratio before the resulting RPM is calculated.
Does the block provide parameter-error monitoring?
+
Yes. The block includes a parameter-error indication for invalid or missing configuration values, helping identify problems in the mechanical data used for the conversion.
What is the main benefit of using the Linear to Rotational Speed Conversion Control Block?
+
The main benefit is a standardized method for translating machine linear speed into the required shaft RPM while accounting for drum dimensions and the complete gear transmission. It also provides maximum-speed supervision, making it useful for drive configuration, monitoring, and machine-control applications.
