LIB - TIA - PEV SCALING CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U PEV Scaling Control Block – Precise Analog Signal Mapping for Proportional Solenoid Control

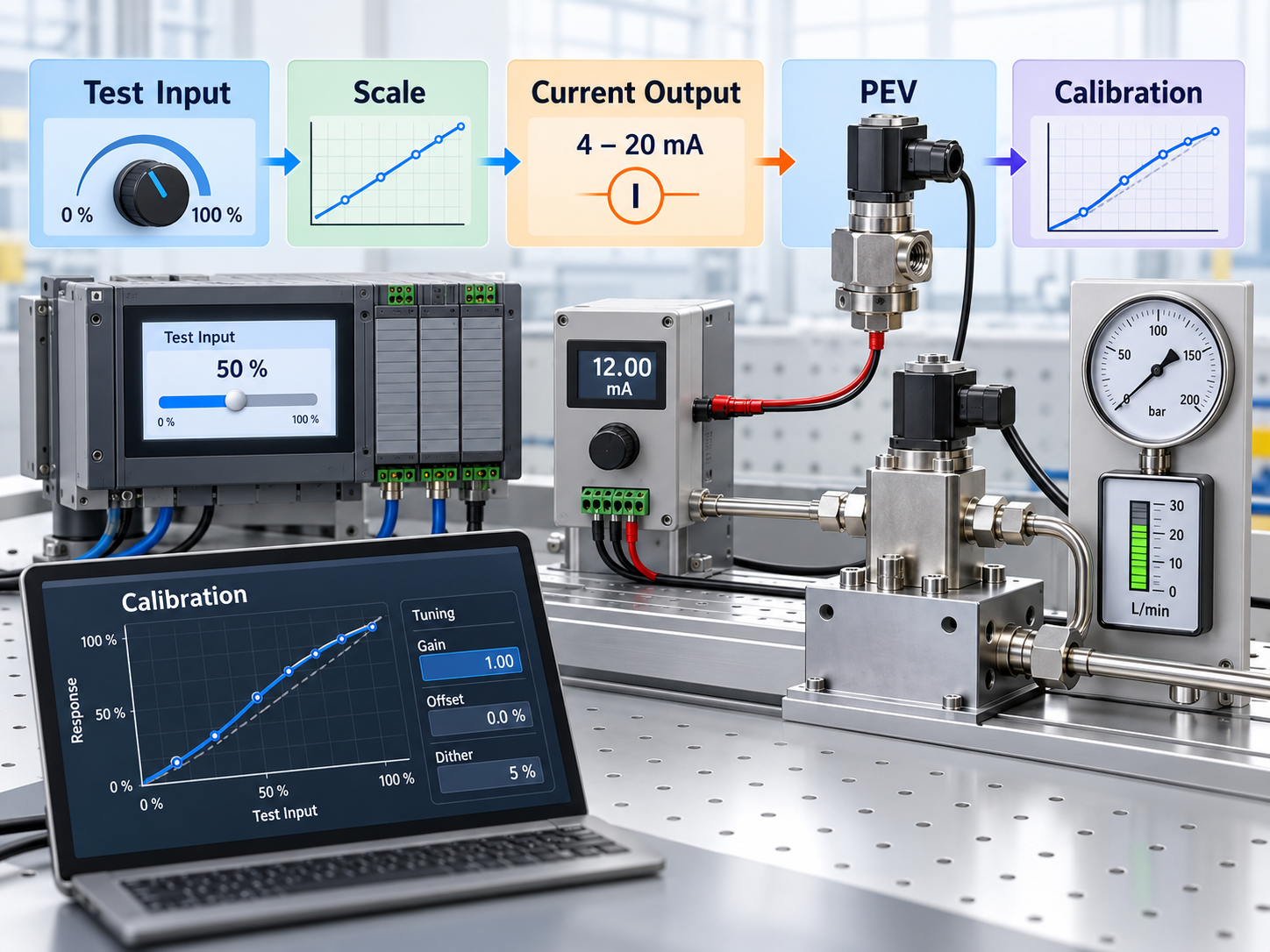

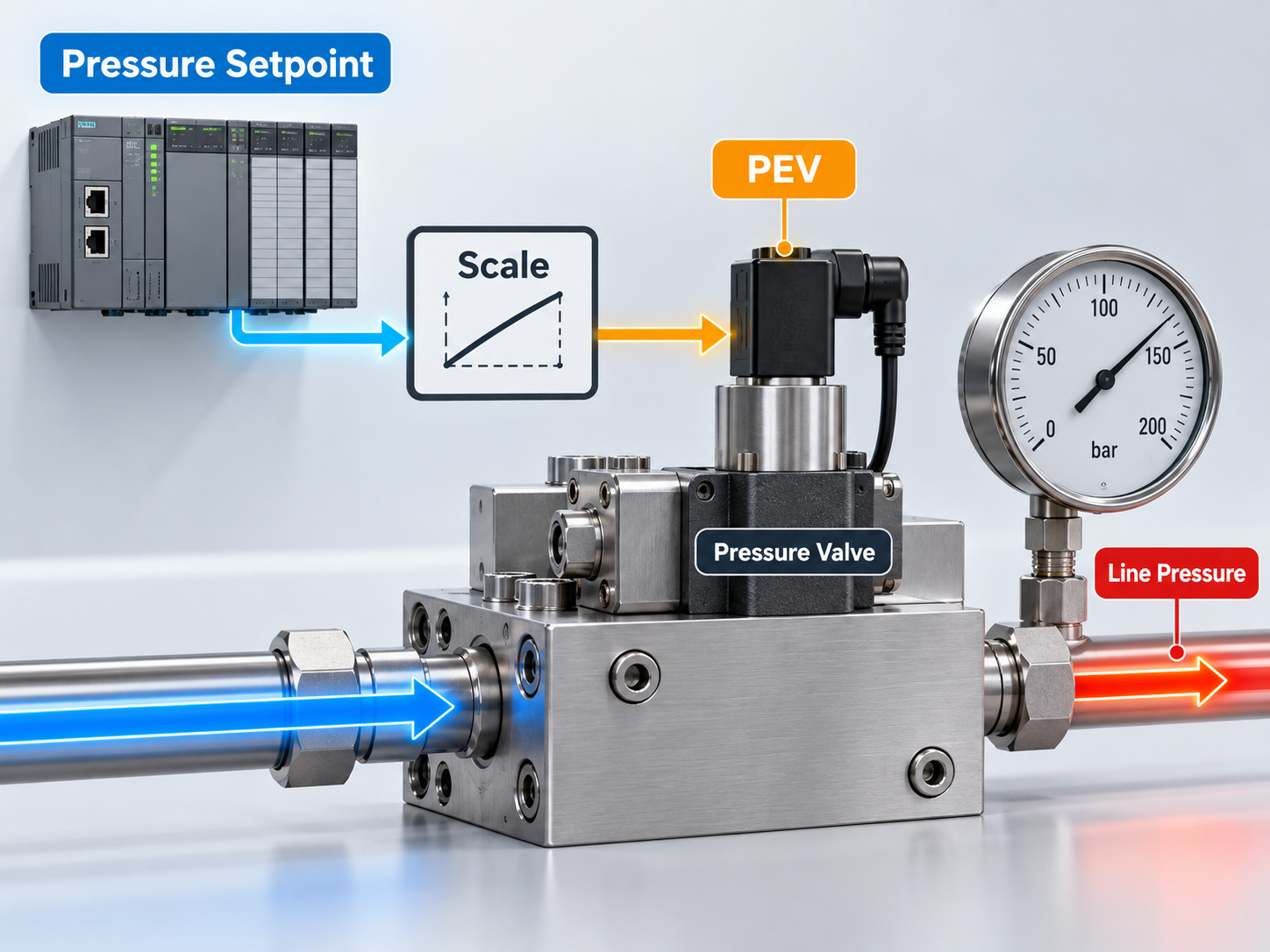

The A4U PEV Scaling Control Block provides a structured and reusable solution for converting analog control signals into the operating range required by proportional electro-pneumatic valves and solenoid-driven actuators within PLC-based industrial automation systems. The block performs linear scaling between configurable minimum and maximum input values and corresponding minimum and maximum output values, allowing signals from sources such as potentiometers, sensors, speed commands or pressure setpoints to be transformed into an actuator-friendly control signal. The resulting scaled output can be used to drive a proportional solenoid valve, PEV or I/P converter for applications requiring controlled motion, pressure regulation or proportional flow control. Because the input and output ranges are independently configurable, the same block can be adapted to different field devices and signal standards without changing the overall control structure. Integrated parameter-error detection identifies invalid configurations such as reversed or inconsistent limits, helping support commissioning and troubleshooting. The block also includes an entry indication that can be used to recognize when the function has just been enabled, supporting initialization, synchronization or diagnostic logic. For bidirectional applications such as extend/retract or open/close motion, two block instances can be used together, with each instance managing one direction through its own scaling profile and control range. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to project requirements. By combining configurable analog scaling, linear interpolation, actuator-range adaptation and parameter validation within one reusable structure, the A4U PEV Scaling Control Block provides a consistent foundation for precise and flexible proportional solenoid control across industrial automation applications.

Scale the Signal. Match the Actuator. Control with Precision.

Simplify proportional valve control with the A4U PEV Scaling Control Block. The block linearly converts an analog input from its configured source range into the exact output range required by a proportional solenoid valve, PEV or I/P converter, while integrated parameter-error monitoring helps ensure valid configuration. Independent of any specific SCADA platform, it provides a reusable and standardized solution for precise motion control, pressure regulation and proportional flow applications.

FAQs

What is the purpose of the PEV Scaling Control Block?
+
The block is designed to convert an analog command into the operating range required by a proportional electro-pneumatic valve or proportional solenoid. This allows the PLC to adapt different input signal ranges to the actuator range used by the physical device.
How does the block scale the input signal?
+

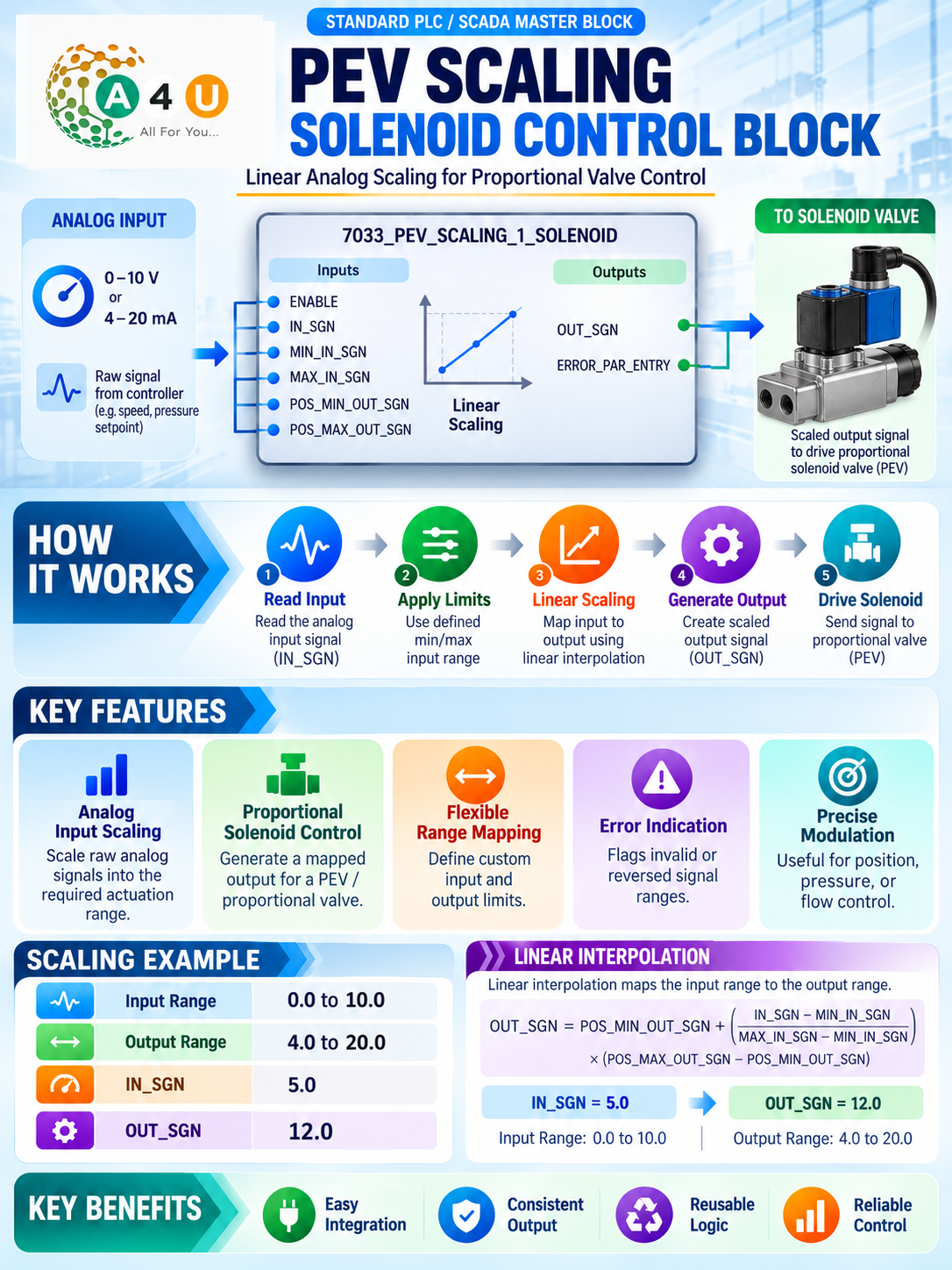

The block uses linear interpolation between configured minimum and maximum input values and maps them proportionally to the configured minimum and maximum output range.
What types of input signals can be used with this block?
+
The input can be an analog control value such as a potentiometer signal, sensor-derived command, speed reference, pressure setpoint, or another analog value that must be converted to the required actuator range.
Can the input and output ranges be configured independently?
+
The output is the converted analog command that can be sent to the proportional valve, solenoid, or related actuator interface. The manual gives percentage-type output ranges as one example.
Where can the PEV Scaling Control Block be used?
+

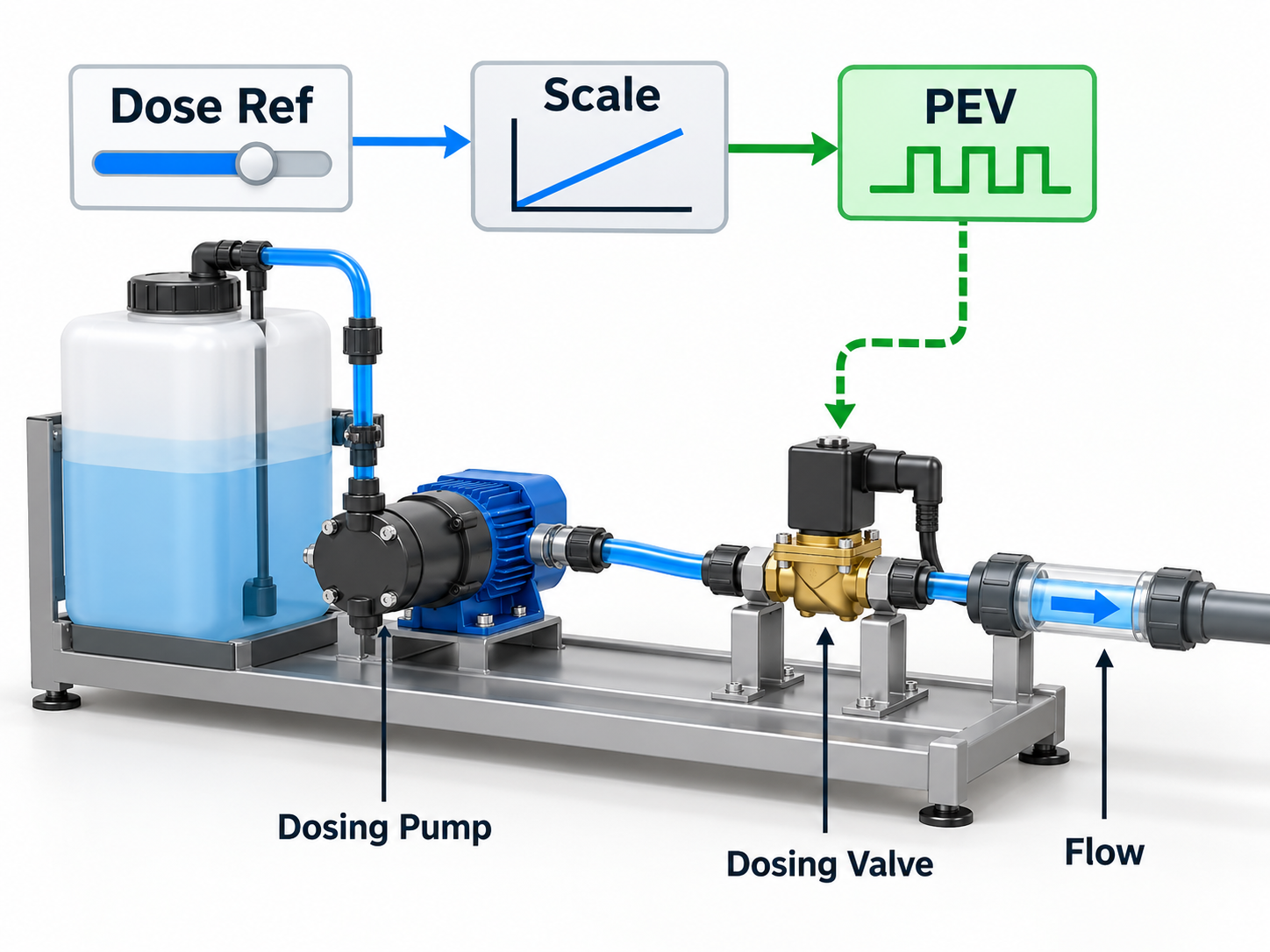

The block is suitable for applications involving proportional motion control, pressure regulation, flow control, or actuator-position control where the controller command must be matched to a specific analog actuator range.
