LIB - TIA - ANALOG VALUE MONITOR CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Analog Value Monitor Control Block – Stable Analog Tracking with Controlled Rate Monitoring

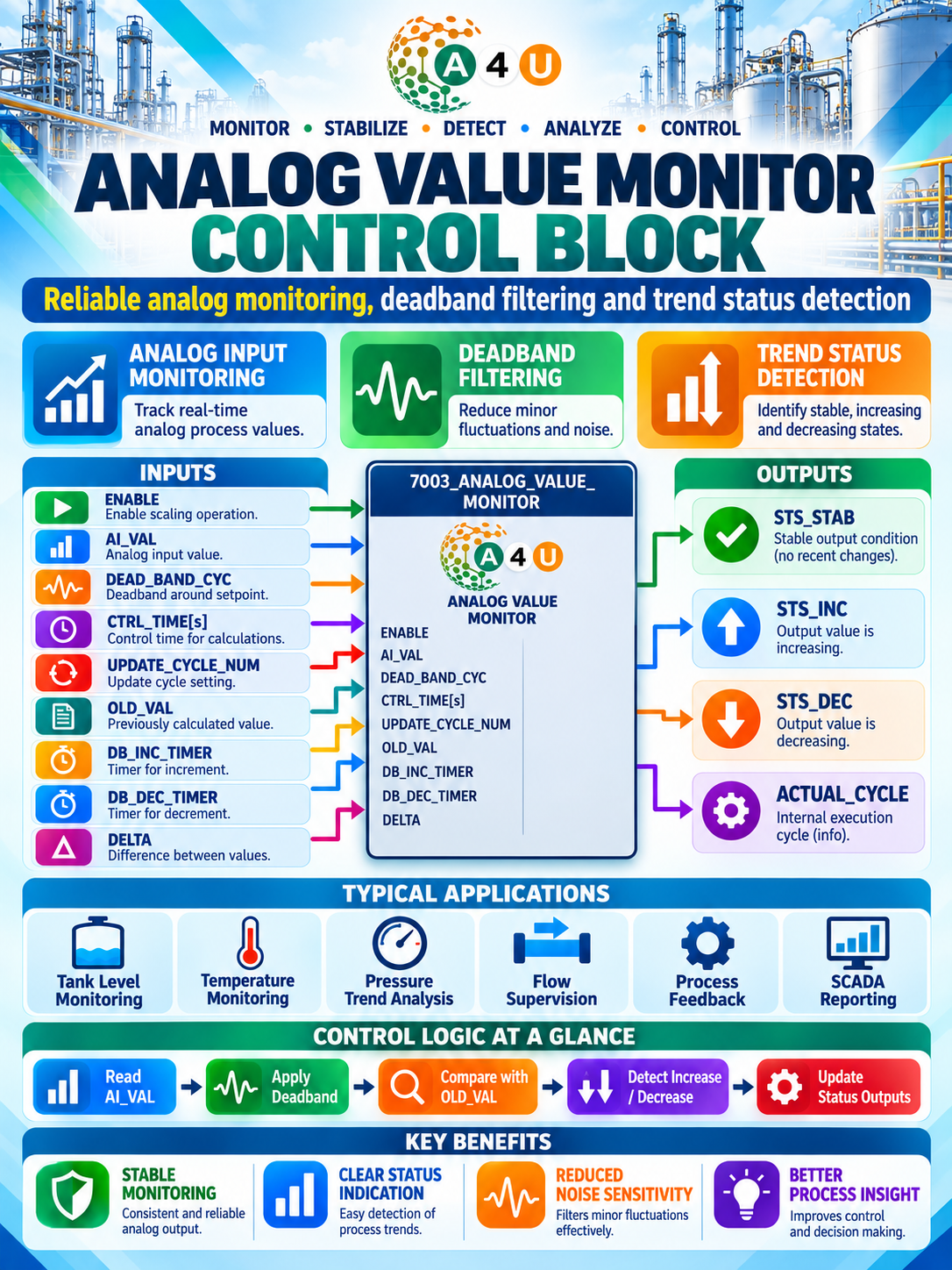

The A4U Analog Value Monitor Control Block provides a structured and reusable solution for monitoring analog values and managing gradual changes within PLC-based industrial automation systems. The block evaluates an analog input together with deadband, control-time and update-cycle parameters to determine how the monitored value is changing over time. By comparing the current value with the previously calculated value, the block can identify whether the signal is stable, increasing or decreasing, while increment and decrement timers influence the rate at which changes are processed. This makes the block suitable for applications where smooth and controlled analog behaviour is important and where rapid fluctuations should not immediately affect the process. The deadband function helps avoid unnecessary response to minor variations around the monitored value, while the calculated delta provides an indication of the difference between the current and previous values. Dedicated status outputs indicate stable, increasing and decreasing conditions, supporting integration with PLC logic, alarms, diagnostics and supervisory systems. The block also includes an execution-cycle indication related to its internal update behaviour. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to the project requirements. By combining analog monitoring, deadband handling, rate-of-change evaluation and clear status indication within one reusable structure, the A4U Analog Value Monitor Control Block helps improve process stability, simplify diagnostics and provide a consistent foundation for monitoring continuously changing analog signals.

Monitor Change. Control Response. Maintain Stable Analog Behaviour.

Improve analog signal monitoring with the A4U Analog Value Monitor Control Block. The block tracks changing analog values using deadband, control-time and update-cycle logic while identifying stable, increasing and decreasing conditions through dedicated status outputs. Independent of any specific SCADA platform, it provides a reusable and standardized solution for applications requiring smoother analog behaviour, controlled rate monitoring and clear process-status visibility.

FAQs

What is the purpose of the Analog Value Monitor Control Block?
+
The block is designed to monitor an analog process value and evaluate how that value changes over time. It can identify whether the monitored value is increasing, decreasing, or remaining stable while supporting controlled and gradual analog behavior.
How does the block monitor changes in the analog value?
+
The block compares the current analog value with the previously calculated value and uses this difference to determine the direction and magnitude of change.
What is the purpose of the deadband function?
+
The deadband defines a range in which small changes in the analog value do not immediately affect the output. This helps reduce unnecessary response to minor signal fluctuations and supports more stable operation.
How does the block support gradual value changes?
+
The block uses timing and update-cycle information together with increment and decrement logic to influence how quickly the monitored or calculated value changes. This helps create a more gradual and controlled response.
What is the benefit of using an update cycle in analog monitoring?
+
An update cycle allows the block to process changes at defined intervals rather than reacting continuously to every small variation. This can support more controlled and predictable behavior in the application.
