LIB - TIA - GENERIC INTERPOLATOR CONVERISON BLOCK

  • Price: €10.00

Our Services

Download Request

A4U Generic 10-Point Interpolator Conversion Control Block – Flexible Multi-Point Scaling for Nonlinear Signals

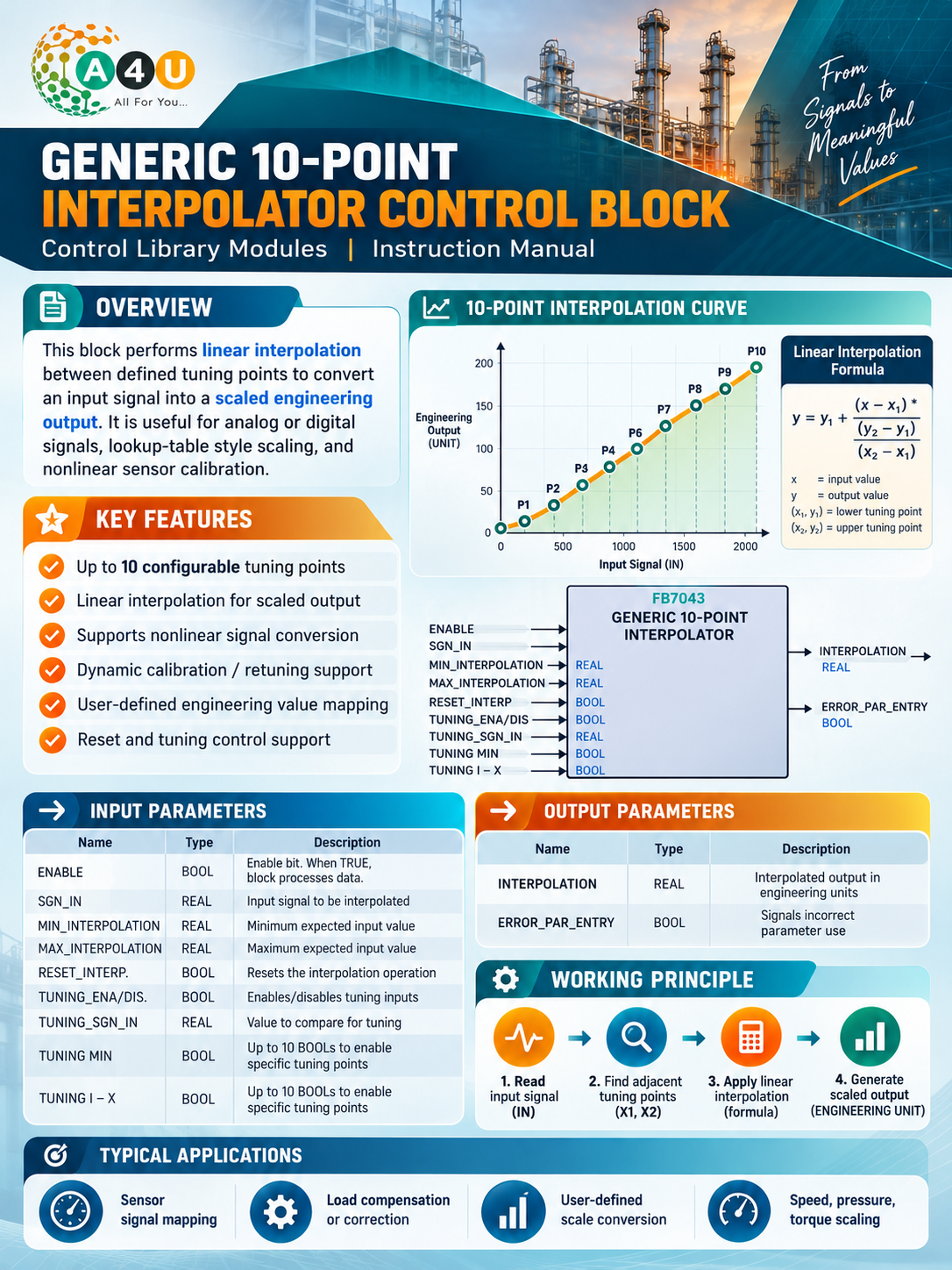

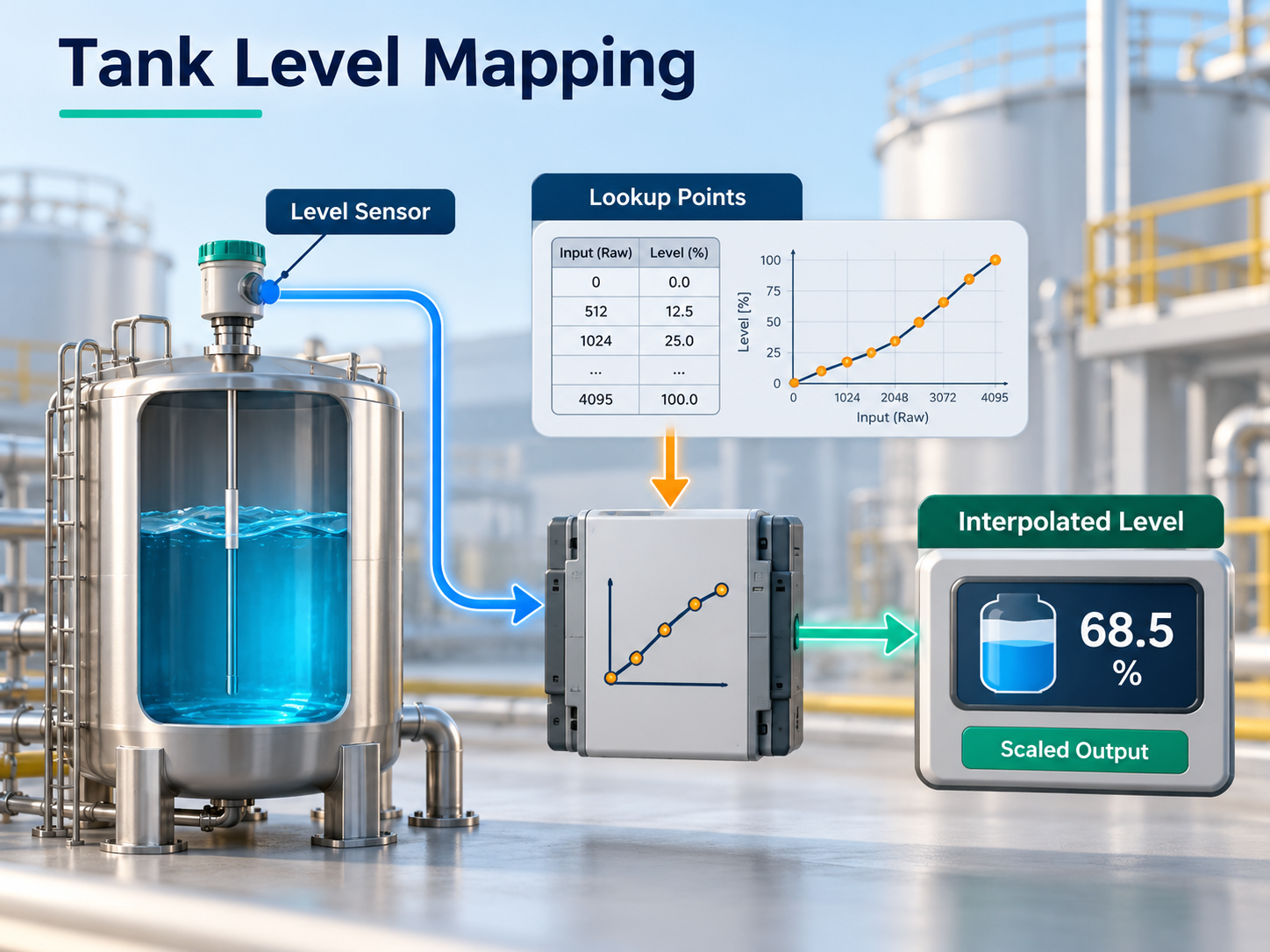

The A4U Generic 10-Point Interpolator Conversion Control Block provides a structured and reusable solution for converting raw input signals into meaningful engineering values using configurable multi-point linear interpolation within PLC-based industrial automation systems. The block accepts an input signal and evaluates it against a series of tuning points, identifying the two adjacent calibration points that surround the current input value and calculating the corresponding output proportionally between their associated engineering values. This approach allows the block to handle non-linear or device-specific input/output relationships more accurately than simple two-point scaling, making it especially useful for sensors and field devices whose characteristics are not perfectly linear. Up to ten customizable tuning points can be configured, enabling engineers to build a flexible calibration curve for applications such as sensor signal mapping, load compensation, user-defined scale conversion, and speed, pressure or torque scaling. The block also supports dynamic tuning and re-calibration through dedicated tuning inputs, while reset and enable functions allow the interpolation process to be controlled according to the application requirement. Configurable minimum and maximum interpolation limits define the expected operating range, and an integrated parameter-error output indicates incorrect or inconsistent parameter usage during setup or runtime. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to project requirements. By combining ten-point calibration, linear interpolation, dynamic tuning, range handling and parameter validation within one reusable structure, the A4U Generic 10-Point Interpolator Conversion Control Block provides a flexible and consistent foundation for accurate signal conversion across industrial automation applications.

Turn Complex Signals into Accurate Engineering Values.

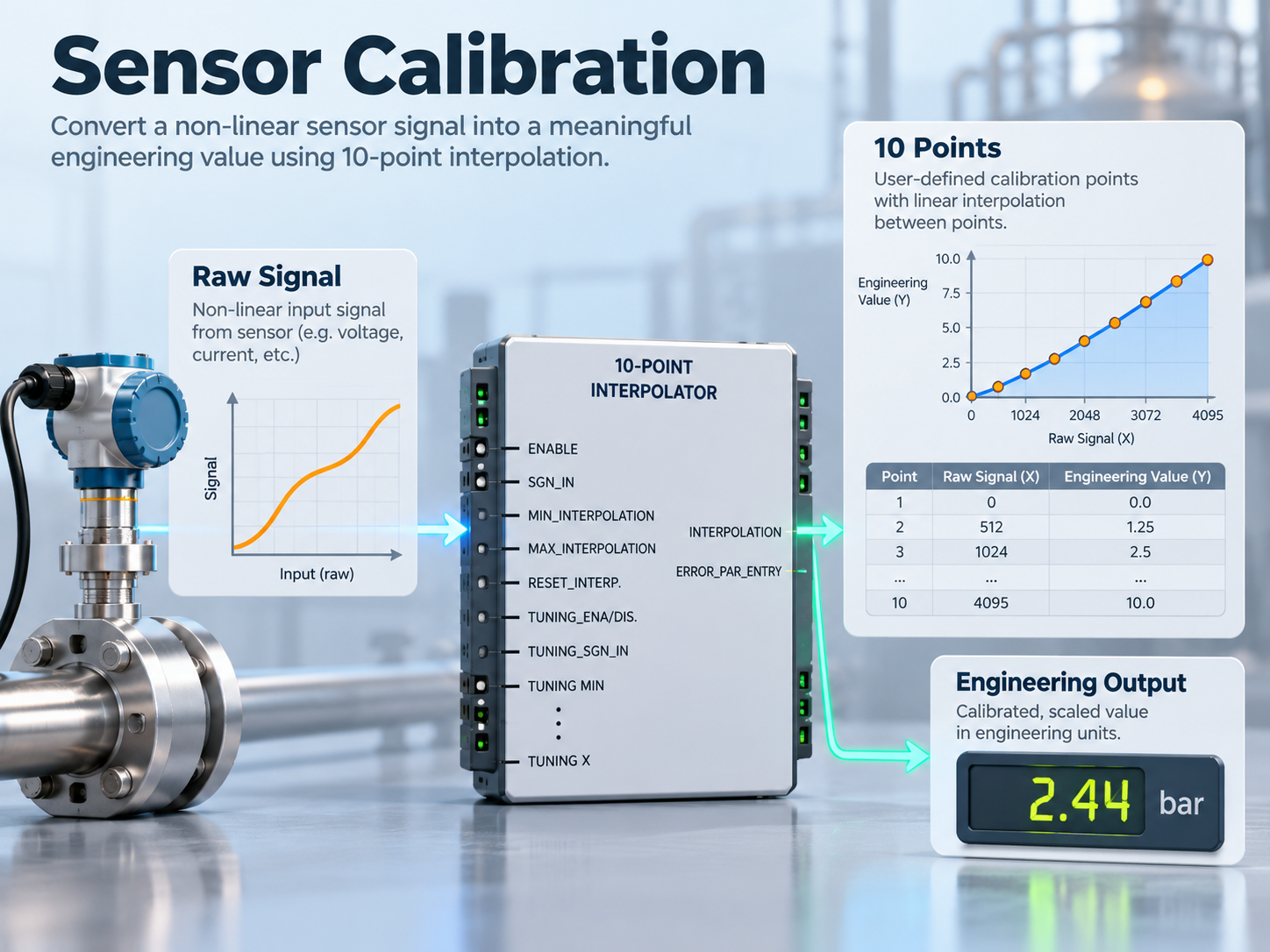

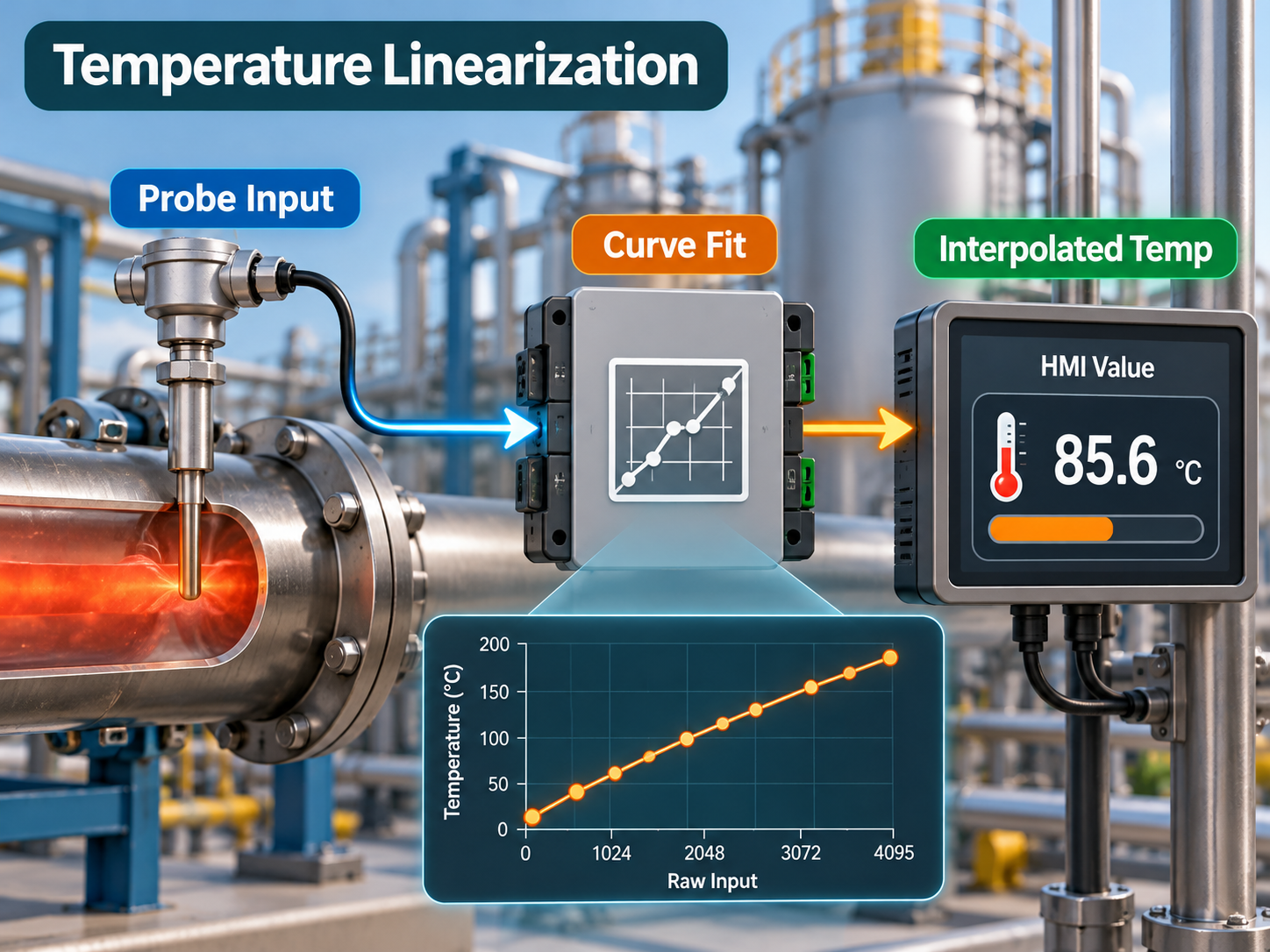

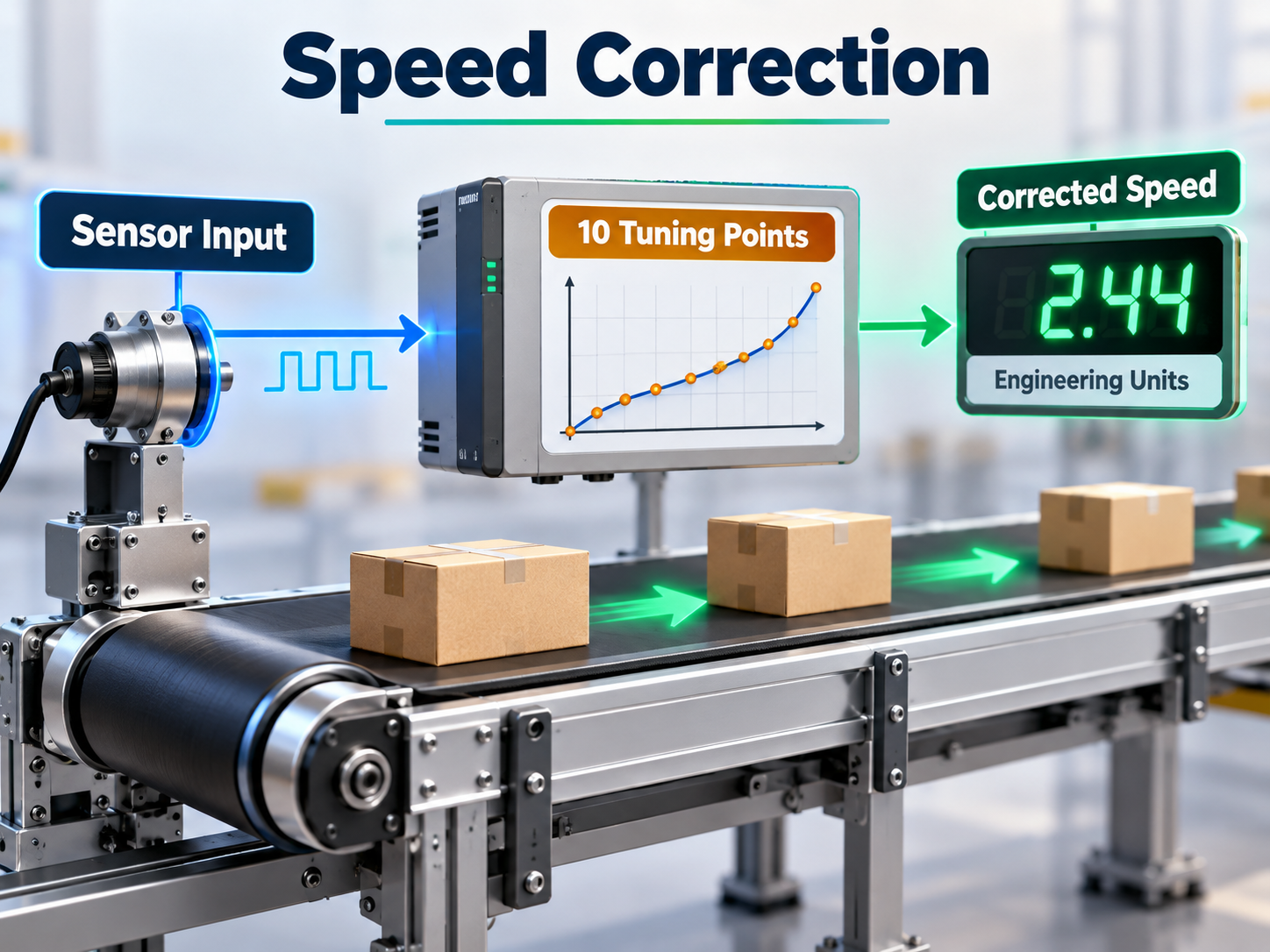

Simplify nonlinear signal conversion with the A4U Generic 10-Point Interpolator Conversion Control Block. The block uses up to ten configurable calibration points to convert raw analog or digital inputs into scaled engineering values through linear interpolation, making it ideal for irregular sensor characteristics and custom device calibration. With dynamic tuning, reset control, configurable operating limits and parameter-error monitoring, it provides a reusable and standardized solution for sensor mapping, load compensation, speed, pressure, torque and other custom scaling applications.

FAQs

What is the purpose of the Generic 10-Point Interpolator Conversion Control Block?
+
The block is designed to convert a raw input signal into a meaningful engineering value by interpolating between predefined calibration or tuning points. This makes it useful when the input-to-output relationship is not adequately represented by one simple linear scaling range.
How does the interpolation function work?
+
The block identifies the two adjacent tuning points surrounding the current input value and calculates the output proportionally between their corresponding engineering values using linear interpolation.
How many calibration points can be used?
+
The block supports up to ten configurable tuning points, allowing the input range to be divided into multiple sections for more flexible signal conversion.
Why use multiple tuning points instead of standard linear scaling?
+
Multiple tuning points are useful when a sensor, actuator, or process does not have a perfectly linear response across its full operating range. Each section can be calibrated separately, allowing the block to approximate irregular or device-specific characteristics more accurately.
What is the main benefit of using the Generic 10-Point Interpolator Conversion Control Block?
+
The main benefit is a standardized and reusable method for converting irregular or non-linear signals into usable engineering values through multiple calibration points. This provides greater flexibility than basic two-point scaling and makes the block suitable for custom sensor and process calibration.
