Reliable Digital Signal Processing Made Simple

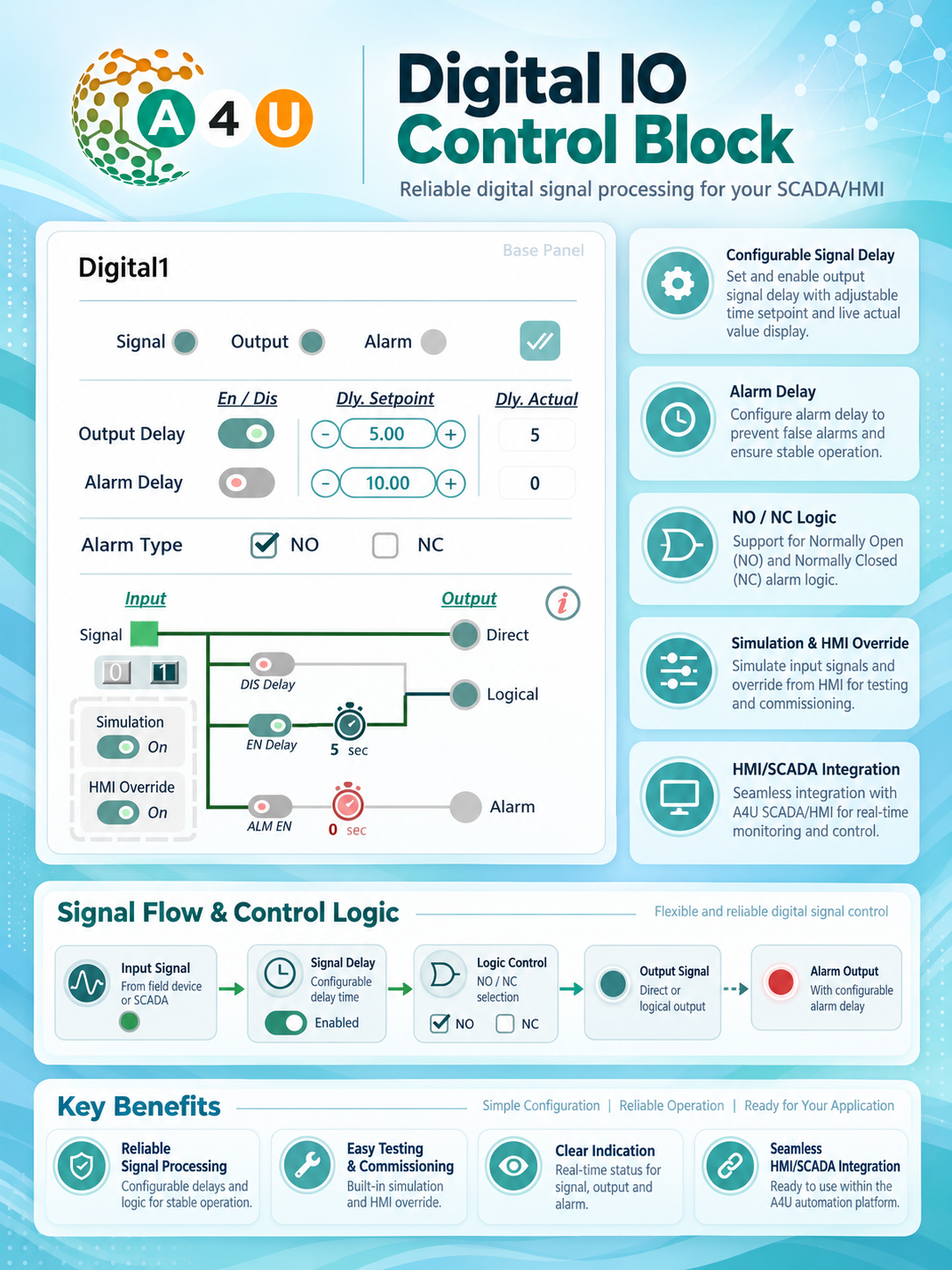

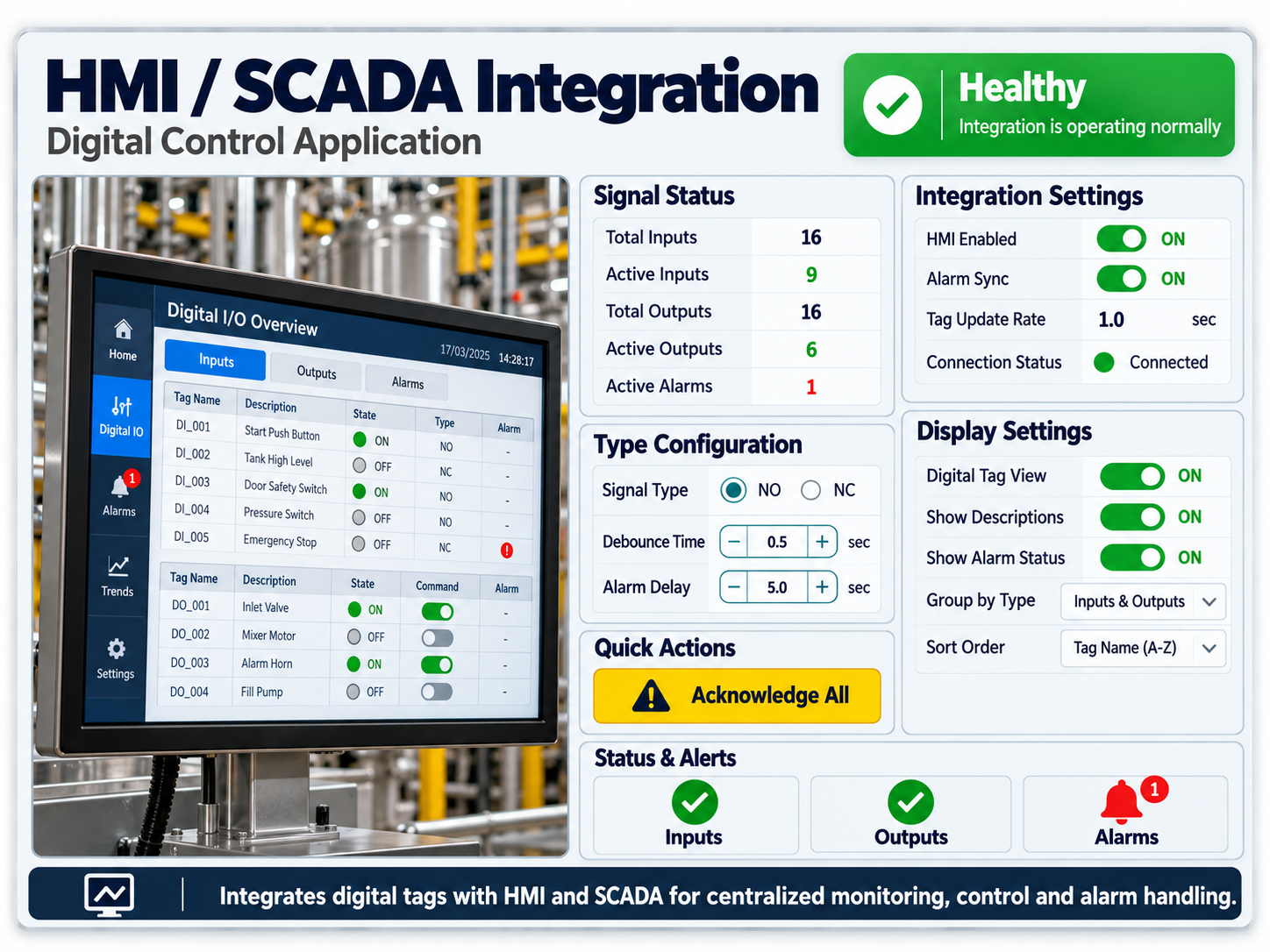

The A4U Digital IO Control Block for Rockwell Automation provides a standardized and reusable solution for processing digital input and output signals within Allen-Bradley PLC-based industrial automation systems. The block handles raw field signals from devices such as push buttons, limit switches, proximity sensors, relay contacts, status signals and fault feedbacks, and processes them into reliable logical signals for use in interlocks, permissives, sequences, alarms and equipment control. Built-in signal-processing functions support configurable signal delays, alarm delays, Normally Open and Normally Closed logic, fault detection, acknowledgment and simulation. These functions help filter unstable signals, validate operating conditions and provide consistent digital signal behaviour across different applications. Simulation functionality allows engineers to test digital input states, delays, alarm behaviour and logical outputs without depending entirely on physical field devices during commissioning and troubleshooting. The integrated HMI/SCADA interface provides clear visibility of raw and processed digital signals, alarm status, delay settings, simulation controls, acknowledgment functions and output conditions. Dedicated visualization templates are also developed for integration with Rockwell Automation FactoryTalk View HMI/SCADA systems and AVEVA SCADA platforms, helping provide a consistent visualization and operator experience across different automation environments. By combining digital signal processing, configurable delays, NO/NC logic, alarms, simulation, acknowledgment and HMI/SCADA integration in one reusable structure, the A4U Digital IO Control Block for Rockwell Automation helps simplify PLC engineering, commissioning, troubleshooting and standardization across industrial automation projects while supporting consistent visualization through FactoryTalk View and AVEVA SCADA templates.
