Reliable Motor Operation and Monitoring

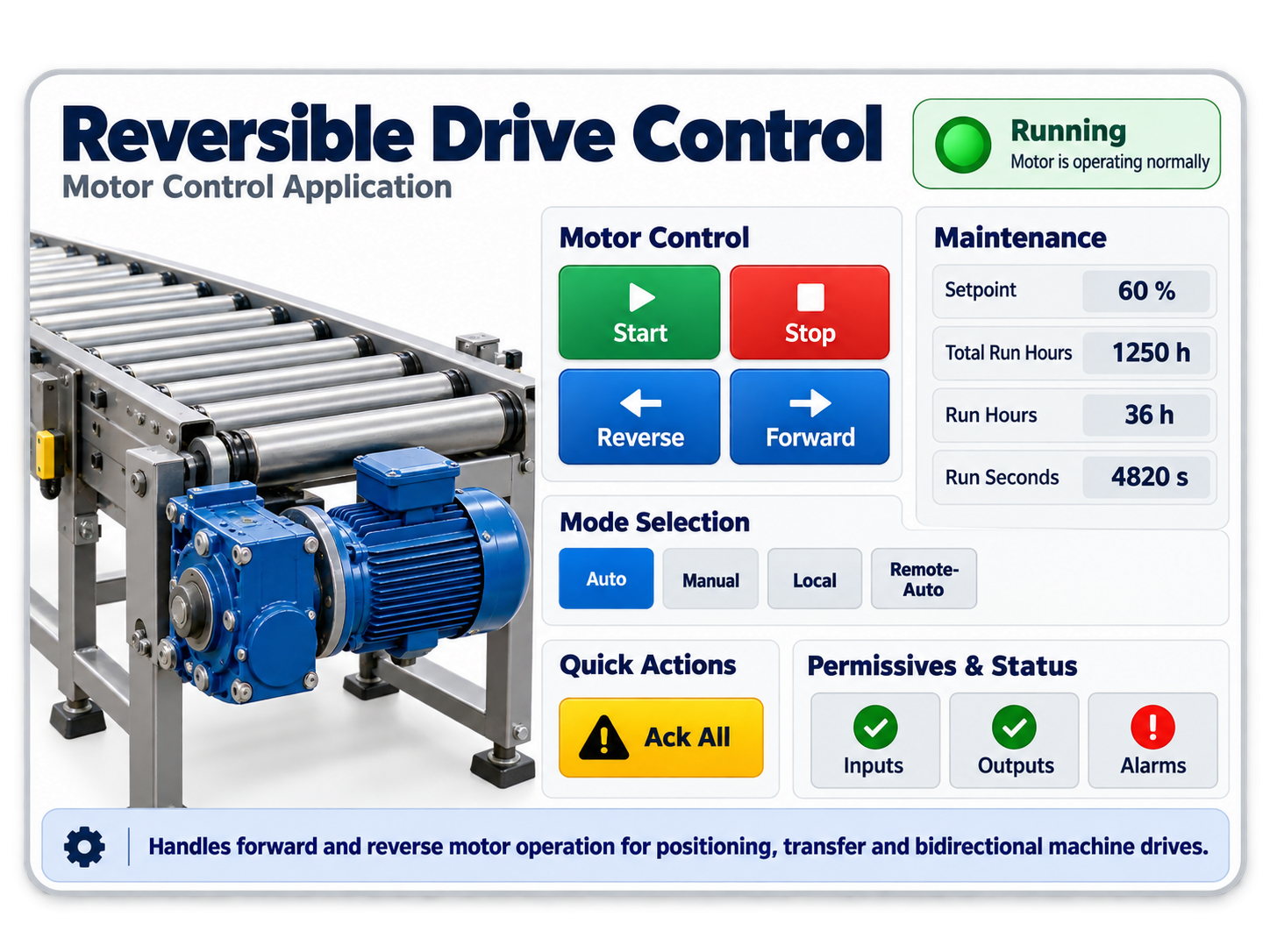

The A4U Motor Control Block for Siemens PLC and Ignition SCADA provides a structured and reusable solution for controlling, monitoring and managing electric motors within industrial automation systems. The block supports essential motor operations including start, stop, forward and reverse direction control, together with mode selection for local, manual, remote and remote automatic operation, allowing the motor to be adapted to different production, commissioning and maintenance requirements. Integrated permissive and interlock handling helps ensure that the motor operates only when the required conditions are satisfied, while feedback processing and status monitoring provide clear visibility of motor operating conditions. The block includes alarm and fault management with acknowledgment functionality, configurable alarm handling and diagnostic information to support faster troubleshooting and recovery. Maintenance functionality allows motor operating hours and runtime information to be monitored, with configurable service thresholds and reset capability after maintenance activities are completed. Simulation and service functions support commissioning and testing activities without depending entirely on live field operation. When combined with Ignition SCADA, operators can monitor motor status, permissives, input and output signals, operating mode, alarm conditions, runtime hours and maintenance information from a centralized supervisory interface, while permitted commands such as Start, Stop, Forward, Reverse, Local, Manual, Remote and Remote Auto can be made available according to the application design. By combining standardized Siemens PLC motor logic with Ignition SCADA visualization, the A4U Motor Control Block helps simplify motor control, improve diagnostics and provide a consistent foundation for applications such as conveyor systems, pump stations and other industrial machinery.
