A4U Analog 4–20 mA Converter Threshold Control Block – Signal Conversion with Integrated Threshold Monitoring

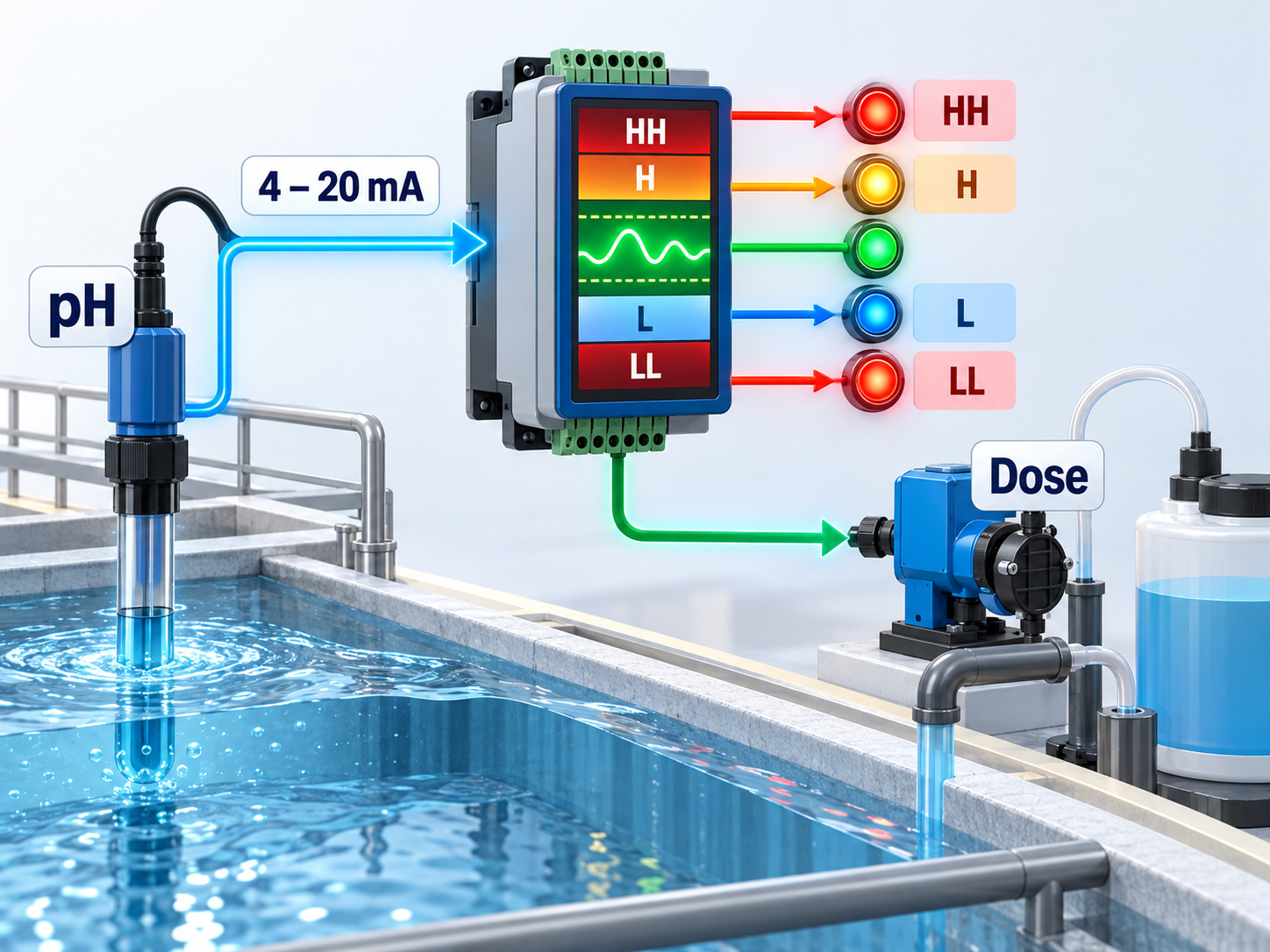

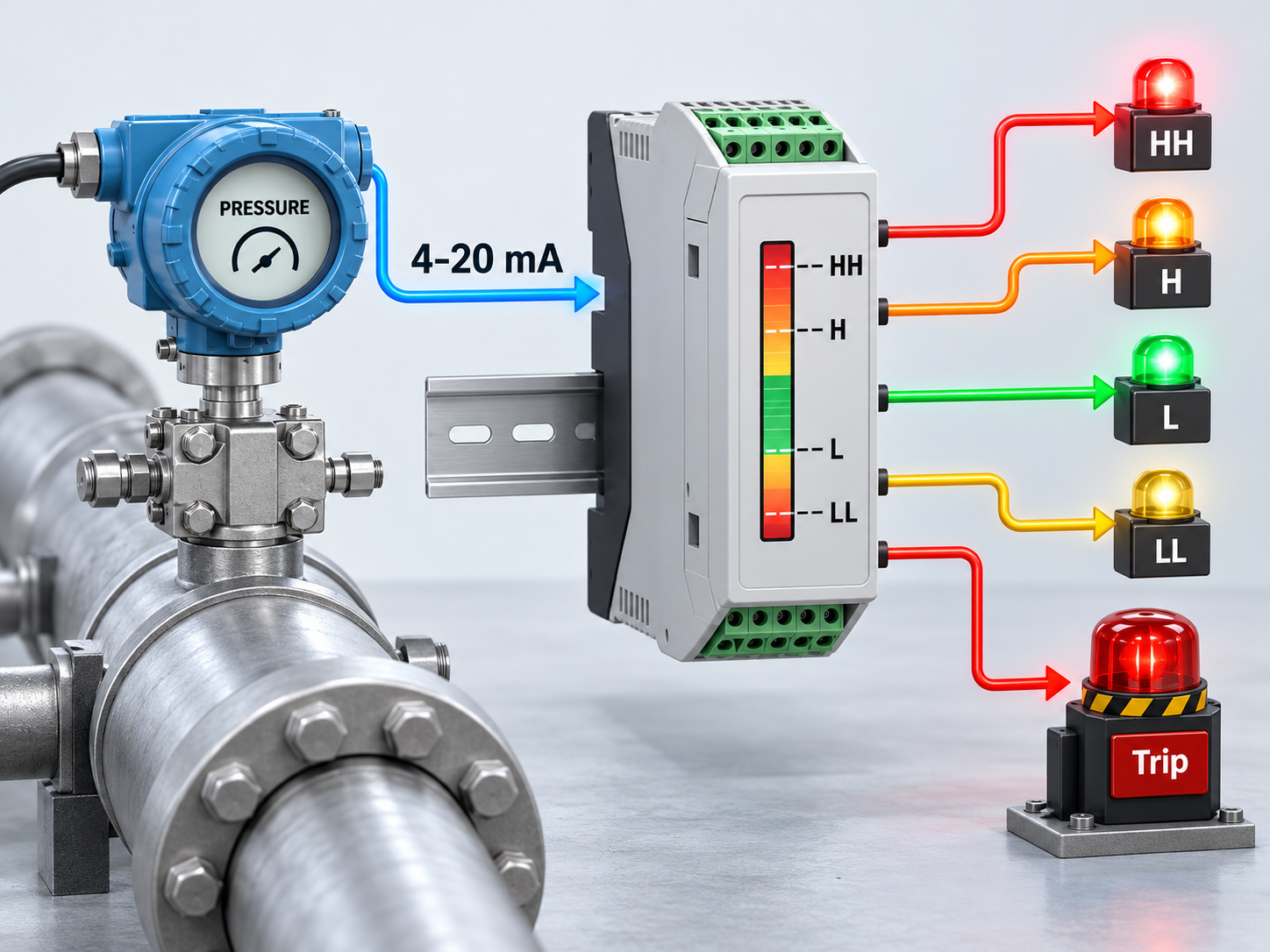

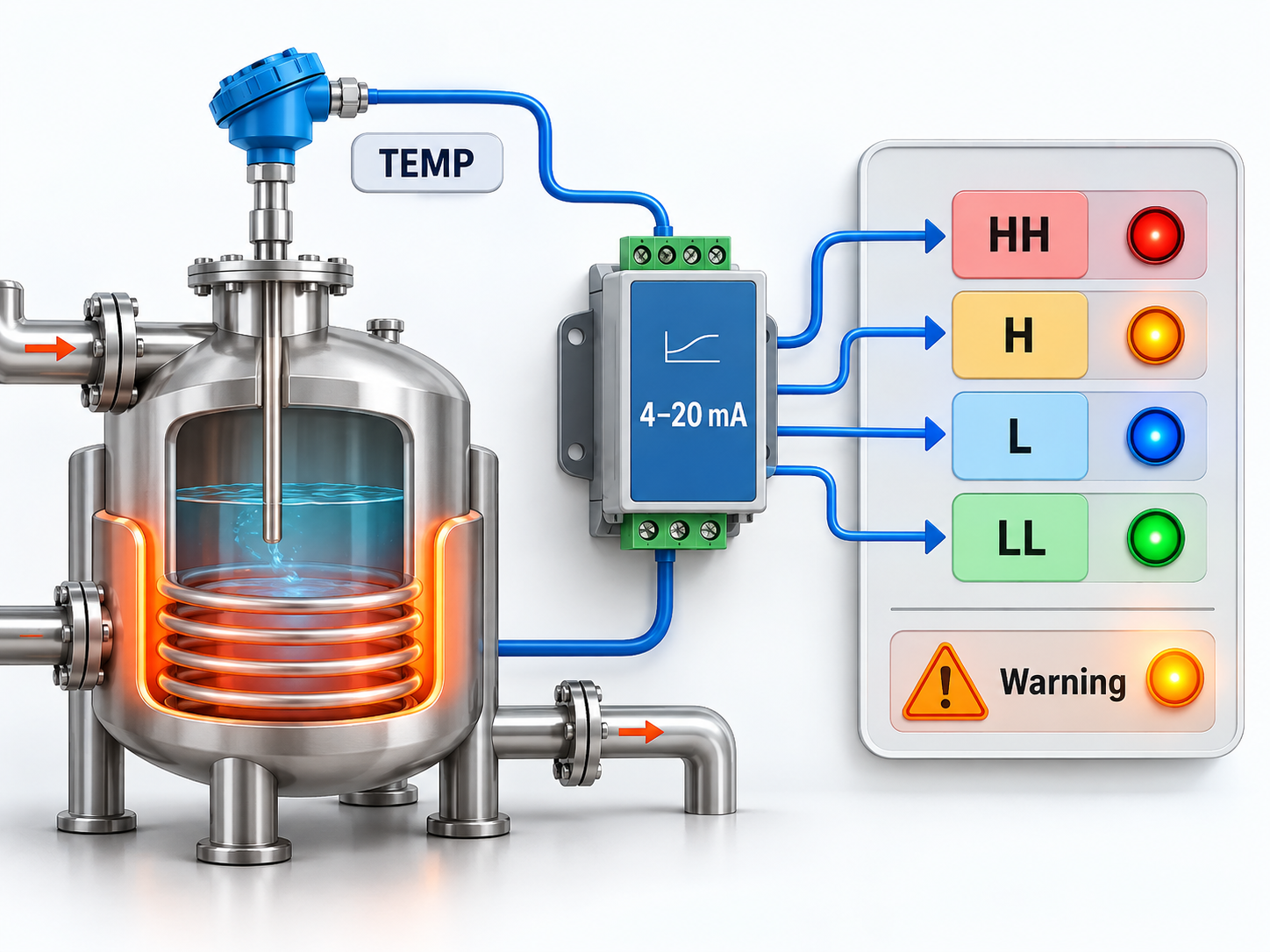

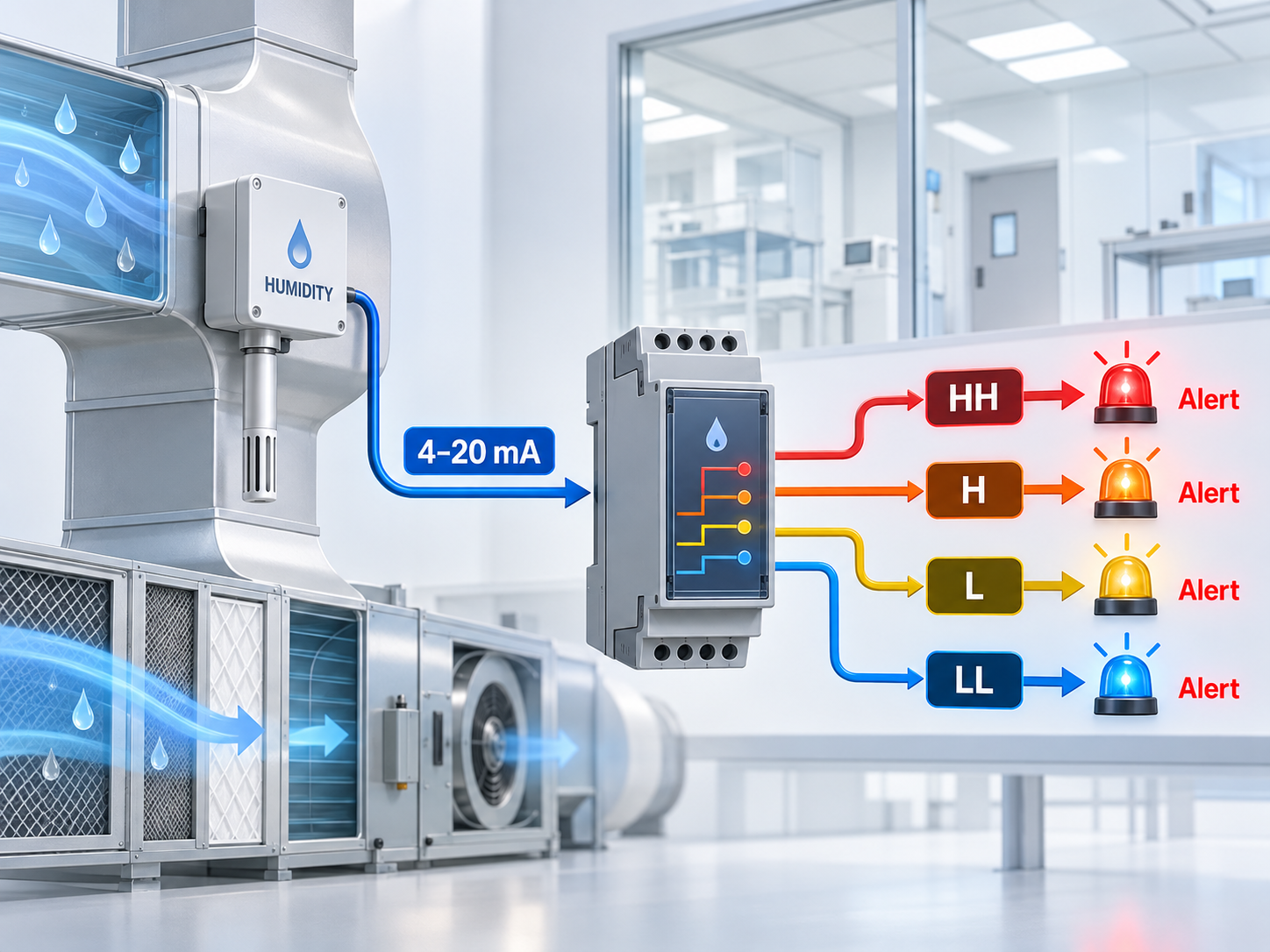

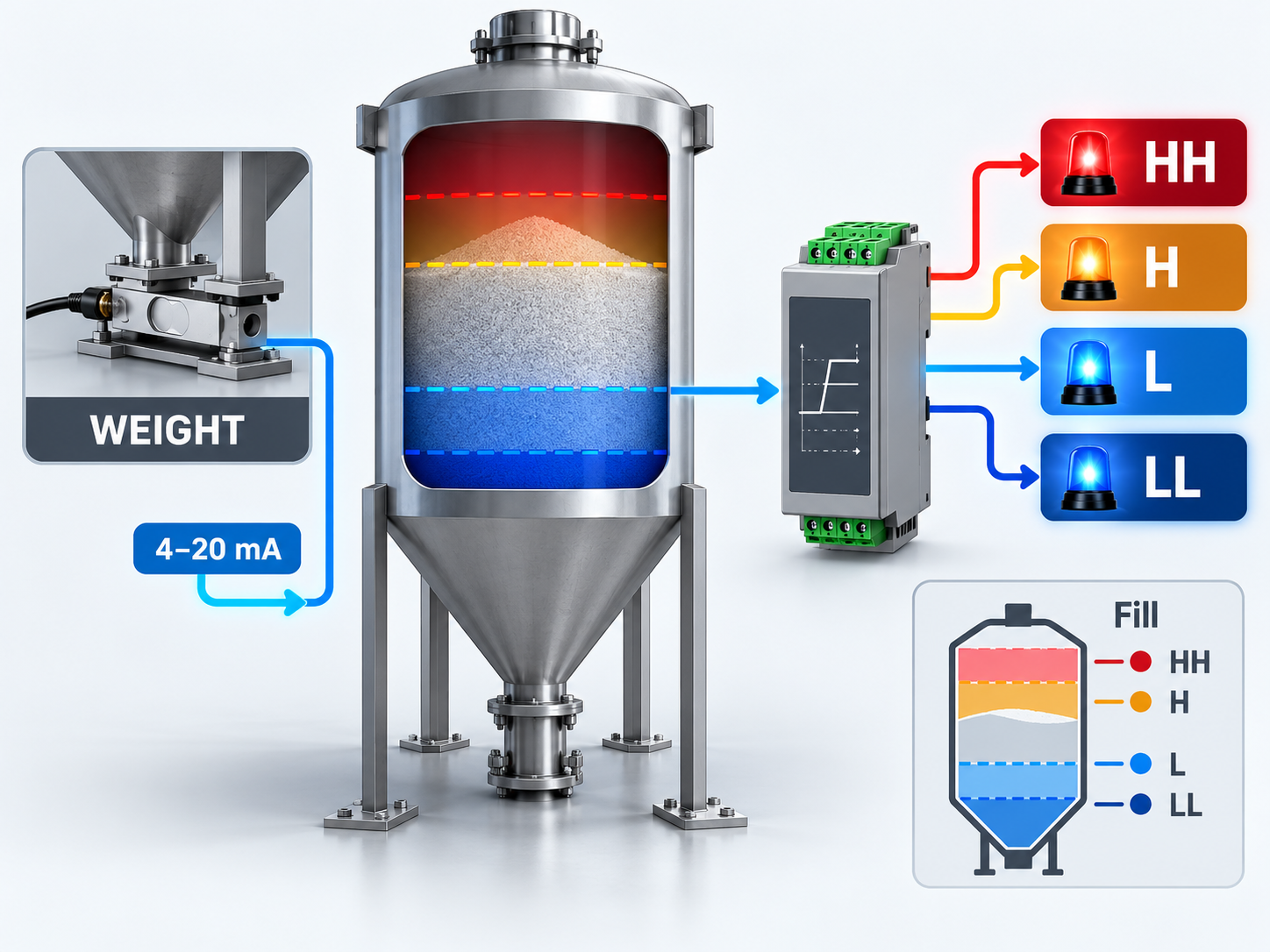

The A4U Analog 4–20 mA Converter Threshold Control Block provides a structured and reusable solution for converting 4–20 mA analog signals into engineering values while simultaneously monitoring configurable operating thresholds within PLC-based industrial automation systems. The block scales the incoming analog signal according to defined minimum and maximum engineering values, allowing raw current signals from sensors and transmitters to be converted into usable process measurements for monitoring and control. In addition to signal conversion, the block includes configurable High-High, High, Low and Low-Low threshold parameters, enabling the PLC to identify when the measured value exceeds or falls below defined operating limits. Dedicated status outputs indicate each threshold condition, providing clear signals for alarms, interlocks or downstream control logic. The block also supports configurable resolution, engineering-value offset, signal filtering and deadband-related handling to adapt the converted value to different instrumentation and process requirements. Integrated diagnostics monitor wire disconnection, short-circuit conditions, parameter-entry errors and threshold-configuration errors, helping engineers identify field wiring faults, sensor failures or incorrect settings during commissioning and troubleshooting. This makes the block suitable for applications such as temperature, pressure, level, flow and other industrial measurements where 4–20 mA transmitters are used and limit monitoring is required. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to the project architecture. By combining 4–20 mA signal conversion, engineering-value scaling, threshold monitoring, filtering and diagnostics within one reusable control structure, the A4U Analog 4–20 mA Converter Threshold Control Block provides a consistent foundation for reliable process measurement and limit supervision across industrial automation applications.
