LIB - TIA - ANALOG SET VALUE CONSISTENCY CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Analog Set Value Consistency Control Block – Controlled Setpoint Adjustment with Stable Process Monitoring

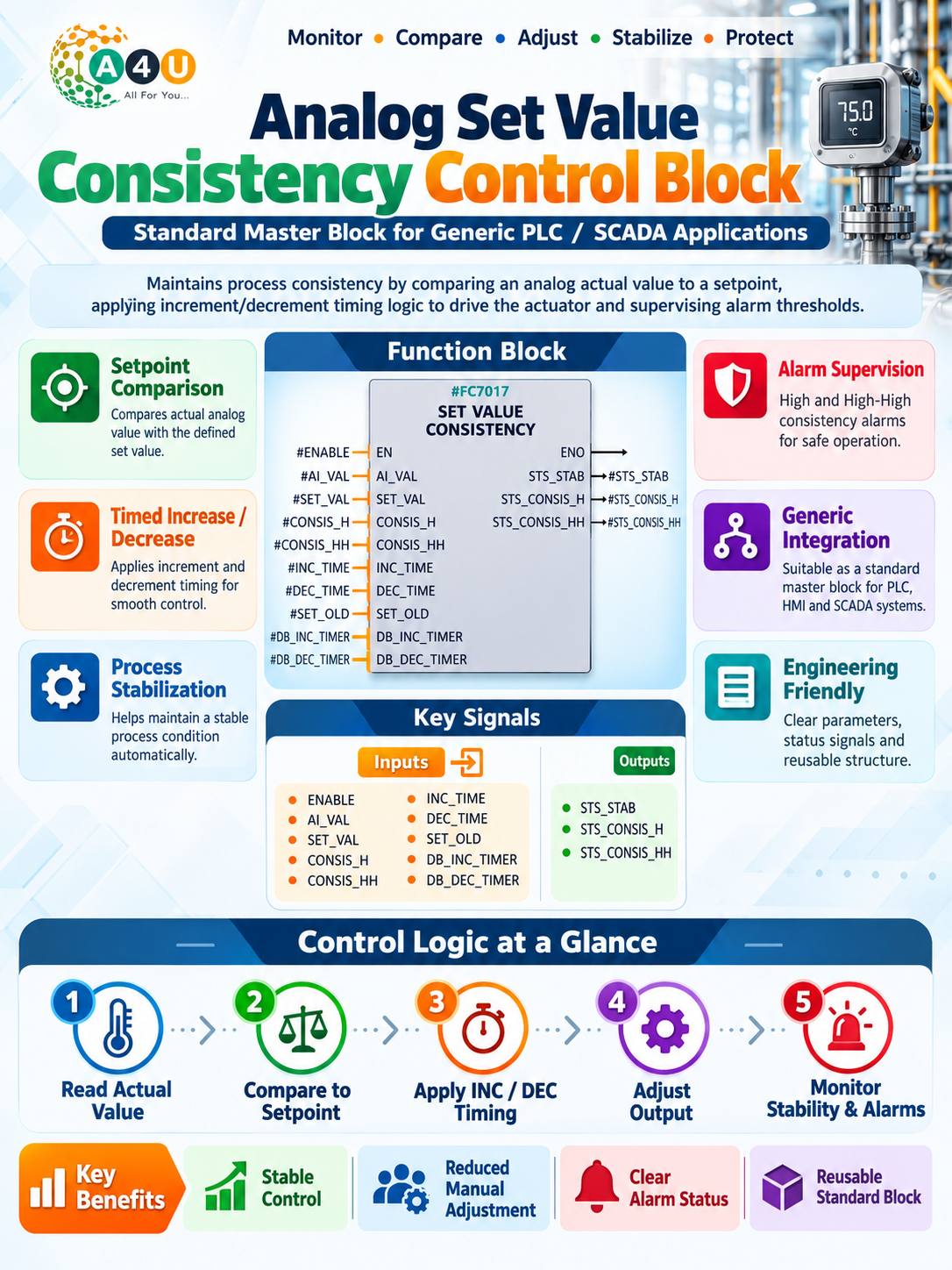

The A4U Analog Set Value Consistency Control Block provides a structured and reusable solution for managing analog setpoint changes and monitoring process consistency within PLC-based industrial automation systems. The block is designed to compare a verified analog process value with a defined setpoint while controlling how the target value is increased or decreased over configurable time periods, helping the process move toward the required operating value in a gradual and controlled manner. Separate increment and decrement time settings allow the control behaviour to be adapted according to the process requirement, while the defined setpoint represents the target value that the system is intended to achieve and maintain. The block also includes configurable High and High-High consistency thresholds, providing dedicated status outputs for process stabilization, high consistency alarm and high-high consistency alarm conditions. Increment and decrement timer logic supports controlled adjustment depending on whether the previous desired value is below or above the current setpoint, helping maintain consistent transition behaviour during changing operating conditions. The manual describes the block primarily for temperature-related applications, where the PLC can coordinate setpoint adjustment with heating or cooling actuators, while the same standardized control concept can support other analog processes where gradual setpoint changes and consistency monitoring are required according to the project design. Because it is developed as a standard master control block, it is not dependent on a specific SCADA platform and can be integrated with different HMI or supervisory systems for setpoint entry, monitoring and status visualization. By combining controlled increment and decrement timing, analog setpoint management, stabilization detection and consistency alarms within one reusable structure, the A4U Analog Set Value Consistency Control Block helps improve process consistency, reduce unnecessary manual adjustment and provide a standardized approach to controlled analog setpoint management. 7007 ANALOG SET VALUE CONSISTEN…

Adjust Gradually. Monitor Stability. Maintain Process Consistency.

Bring greater control to changing analog setpoints with the A4U Analog Set Value Consistency Control Block. The block manages controlled increment and decrement timing around a defined setpoint while monitoring process stabilization and High and High-High consistency conditions. Designed as a reusable master control block and independent of any specific SCADA platform, it provides a standardized foundation for temperature control and other analog applications requiring gradual setpoint adjustment, clear status monitoring and consistent process behaviour.

FAQs

What is the purpose of the A4U Analog Set Value Consistency Control Block?
+
The A4U Analog Set Value Consistency Control Block is designed to manage a process setpoint using controlled increment and decrement timing. It evaluates the current analog value, the target setpoint, and the configured timing parameters to support gradual process adjustment and consistency monitoring.
How does the block control changes toward the target setpoint?
+
The block uses separately defined increment and decrement times to manage how the process value is increased or decreased toward the desired setpoint. This allows the adjustment to be controlled in both directions. 7007 ANALOG SET VALUE CONSISTEN…
Why are separate increment and decrement times important?
+
Separate timing values allow the process to behave differently while increasing and decreasing. This helps provide smoother and more controlled adjustment according to the requirements of the application.
What type of applications can use this control block?
+
The documented concept is based on temperature-related process control, but the block structure is intended for applications where an analog setpoint must be adjusted gradually and monitored for consistency.
Can the block reduce manual operator adjustment?
+
Yes. The manual states that controlled setpoint adjustment can reduce the need for manual temperature changes, helping improve process consistency and efficiency.
