A4U Analog Scaling Control Block – Accurate Conversion from Raw Signals to Engineering Values

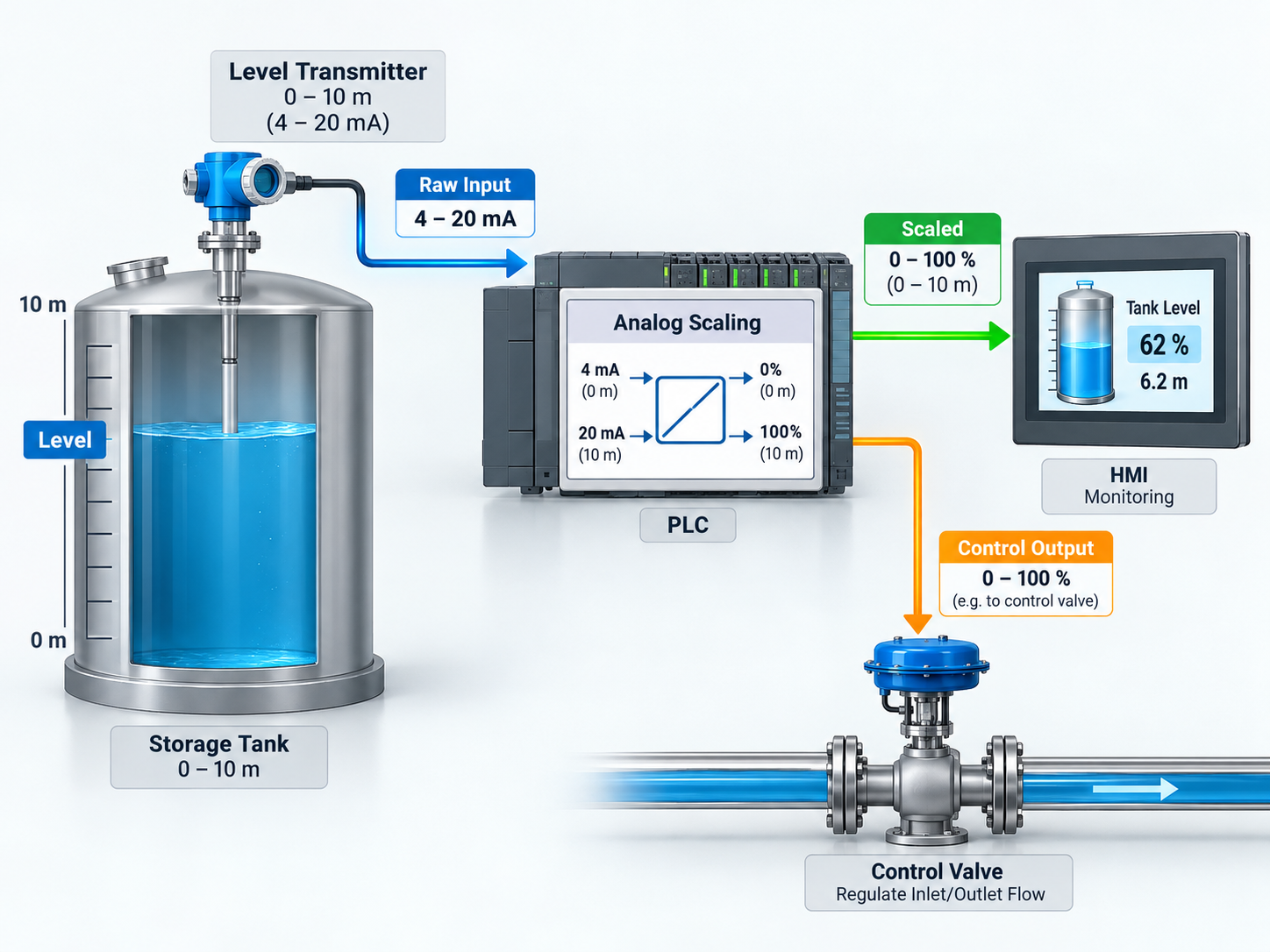

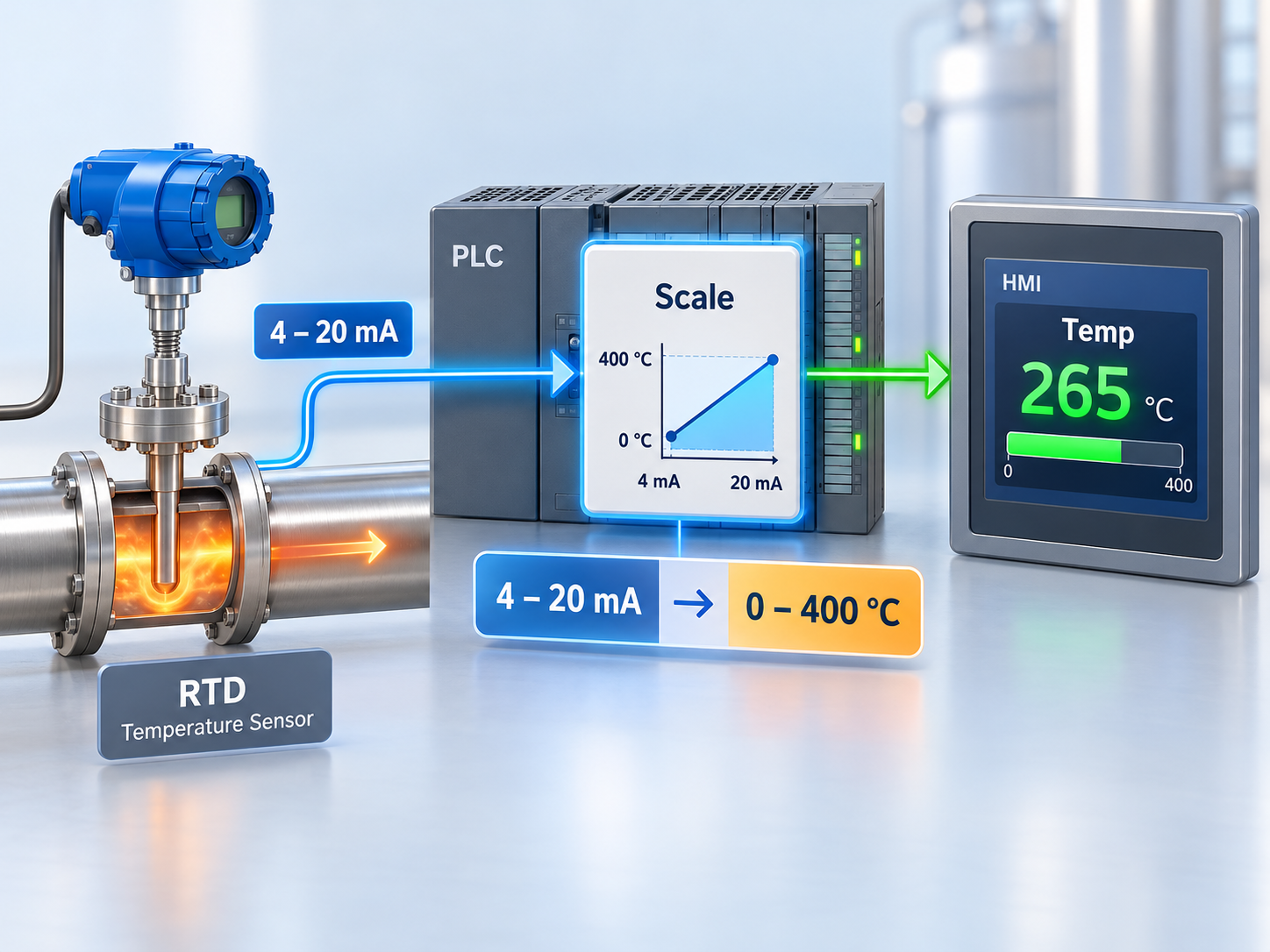

The A4U Analog Scaling Control Block provides a structured and reusable solution for converting raw analog sensor signals into meaningful engineering values within PLC-based industrial automation systems. The block is designed to process analog inputs such as voltage or current signals and transform them into scaled values that represent real-world process measurements including temperature, pressure and flow. Configurable minimum and maximum input ranges define the raw signal limits, while minimum and maximum output ranges define the required engineering-unit range, allowing the same control structure to be adapted to different sensors and applications. The block performs the scaling calculation using the configured raw and engineering ranges and provides the resulting scaled output for use by downstream PLC logic, monitoring or process control functions. An Enable condition controls block execution, while an Active Limits input can be used to determine when the scaled value is passed for further processing. Integrated parameter validation checks the configured input and output limits and activates an error indication when invalid range combinations are detected, helping engineers identify incorrect settings during commissioning and troubleshooting. The block can support applications such as temperature control, pressure monitoring, flow control and other analog measurement functions across manufacturing, chemical processing, power generation, building automation, food and beverage and similar industrial environments. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to the project architecture. By combining configurable raw-to-engineering scaling, range validation, conditional execution and standardized output handling within one reusable structure, the A4U Analog Scaling Control Block helps simplify analog signal processing and provides a consistent foundation for accurate process measurement across industrial automation projects.
