LIB - TIA - CURRENT CONVERSION BLOCK

  • Price: €5.00

Our Services

Download Request

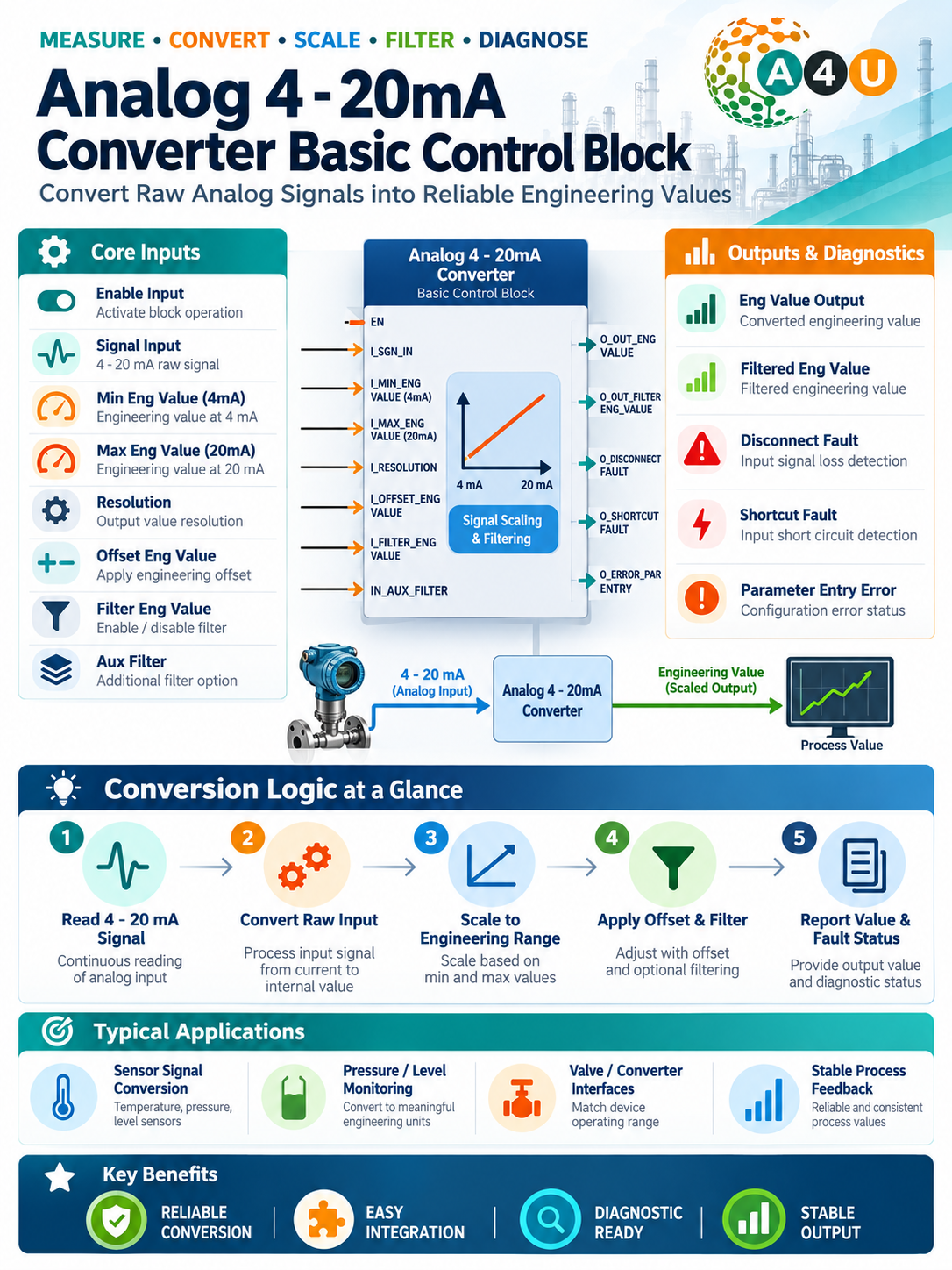

A4U Analog 4–20 mA Converter Basic Control Block – Reliable Signal Conversion with Built-In Diagnostics

The A4U Analog 4–20 mA Converter Basic Control Block provides a structured and reusable solution for converting raw analog current signals into meaningful engineering values within PLC-based industrial automation systems. The block is designed to process a 4–20 mA analog input and scale it according to configured minimum and maximum engineering values, allowing the same control structure to be adapted to different sensors, transmitters and field devices. Configurable resolution, engineering-value offset and filter parameters provide additional flexibility for adapting the converted signal to the requirements of the application, while an auxiliary filter input can be used to support filtered signal processing. The block provides both a converted engineering output and a filtered engineering output, making it suitable for applications where raw process measurements require additional stabilization before being used by downstream control or monitoring logic. Integrated diagnostics monitor conditions such as wire disconnection, short-circuit limits and parameter-entry errors, helping engineers identify field wiring issues, sensor failures or incorrect configuration during commissioning and troubleshooting. This makes the block suitable for process measurements such as temperature, pressure, level and other instrumentation commonly using 4–20 mA transmitters. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to project requirements. By combining 4–20 mA conversion, configurable engineering ranges, filtering, offset adjustment and signal diagnostics within one reusable structure, the A4U Analog 4–20 mA Converter Basic Control Block provides a consistent foundation for reliable analog instrumentation and process measurement across industrial automation applications.

Convert 4–20 mA Signals with Confidence and Clear Diagnostics

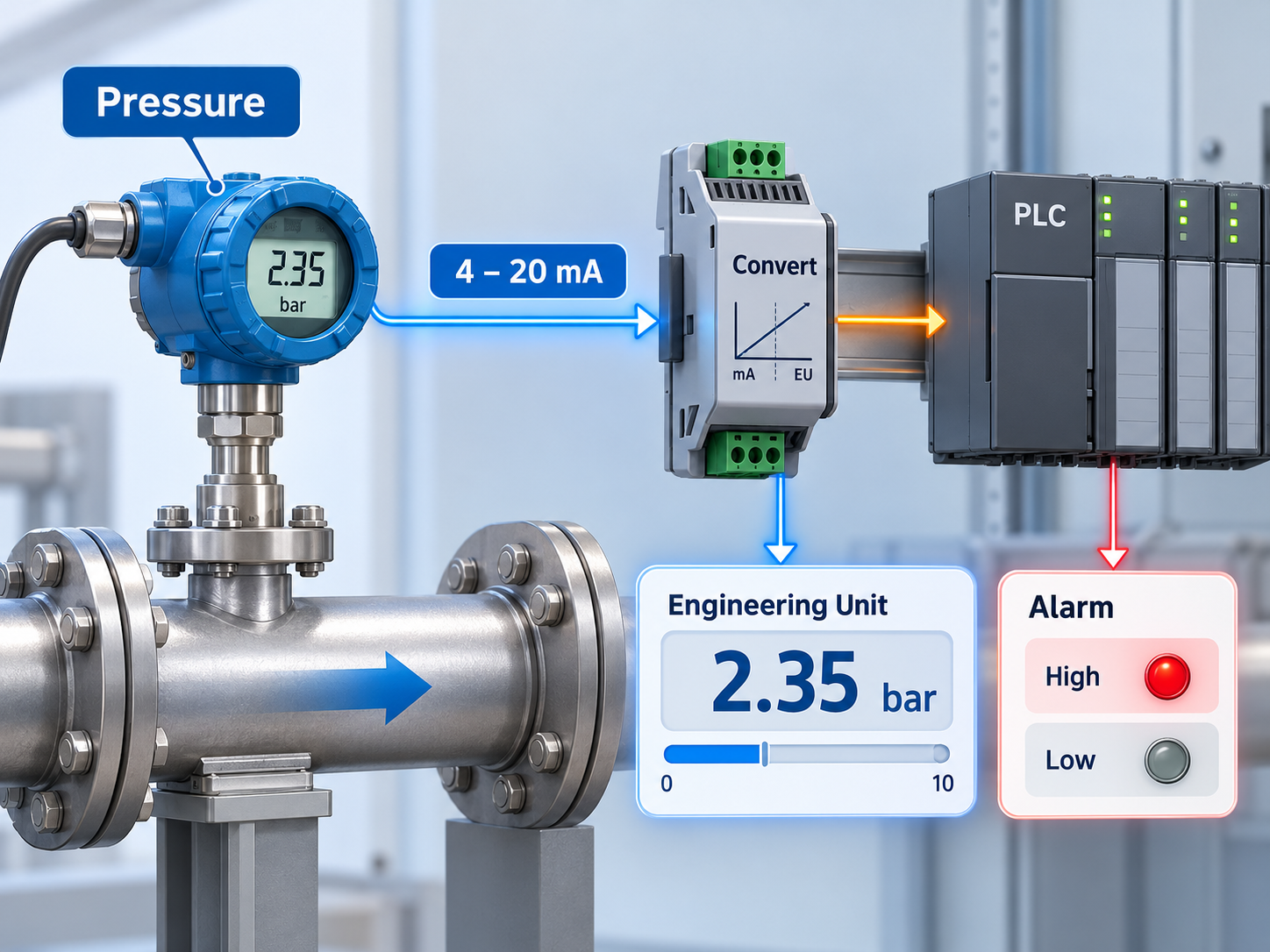

Simplify industrial analog signal conversion with the A4U Analog 4–20 mA Converter Basic Control Block. The block converts 4–20 mA sensor inputs into configured engineering values while supporting filtering, offset adjustment, resolution settings and diagnostic monitoring for disconnect, short-circuit and parameter-related faults. Independent of any specific SCADA platform, it provides a reusable and standardized solution for reliable process measurements such as temperature, pressure, level and other transmitter-based applications.

FAQs

What is the purpose of the Analog 4–20 mA Converter Basic Control Block?
+
The block is designed to convert a raw analog current signal into a usable engineering value for the PLC application. This allows a 4–20 mA field signal to be represented in meaningful process units such as percentage, pressure, level, or another configured engineering range
How does the block convert the 4–20 mA signal?
+
The block uses configured minimum and maximum engineering values to scale the incoming analog signal into the required process range. This allows the same 4–20 mA signal standard to be adapted to different sensors and applications.
Can the block be configured for different engineering ranges?
+
Yes. The minimum and maximum output values can be configured according to the measurement range of the connected field device, allowing the converted signal to match the required engineering units.
Does the block provide parameter-error diagnostics?
+
Yes. The block includes an error output that is activated when an error condition is detected during processing, helping identify incorrect or invalid configuration conditions. 7013 ANALOG 4 - 20mA CONVERTER …
Where can this control block be used?
+

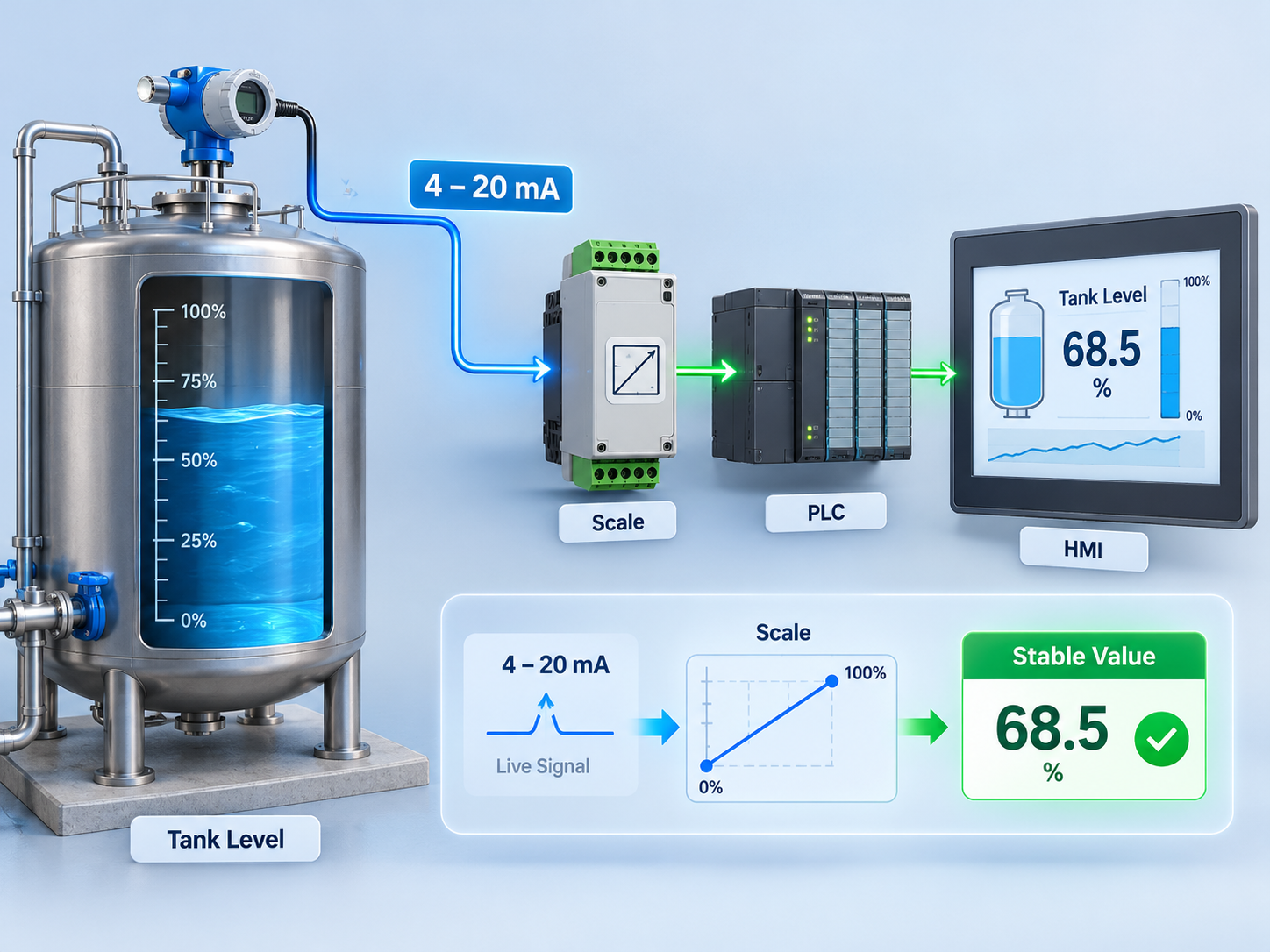

The block is suitable for industrial applications using 4–20 mA transmitters, such as temperature, pressure, level, flow, or other process measurements that need to be converted into engineering values for PLC monitoring and control.
