A4U Multi Push Button Action Control Block – Centralized HMI Command Handling for Flexible Operator Control

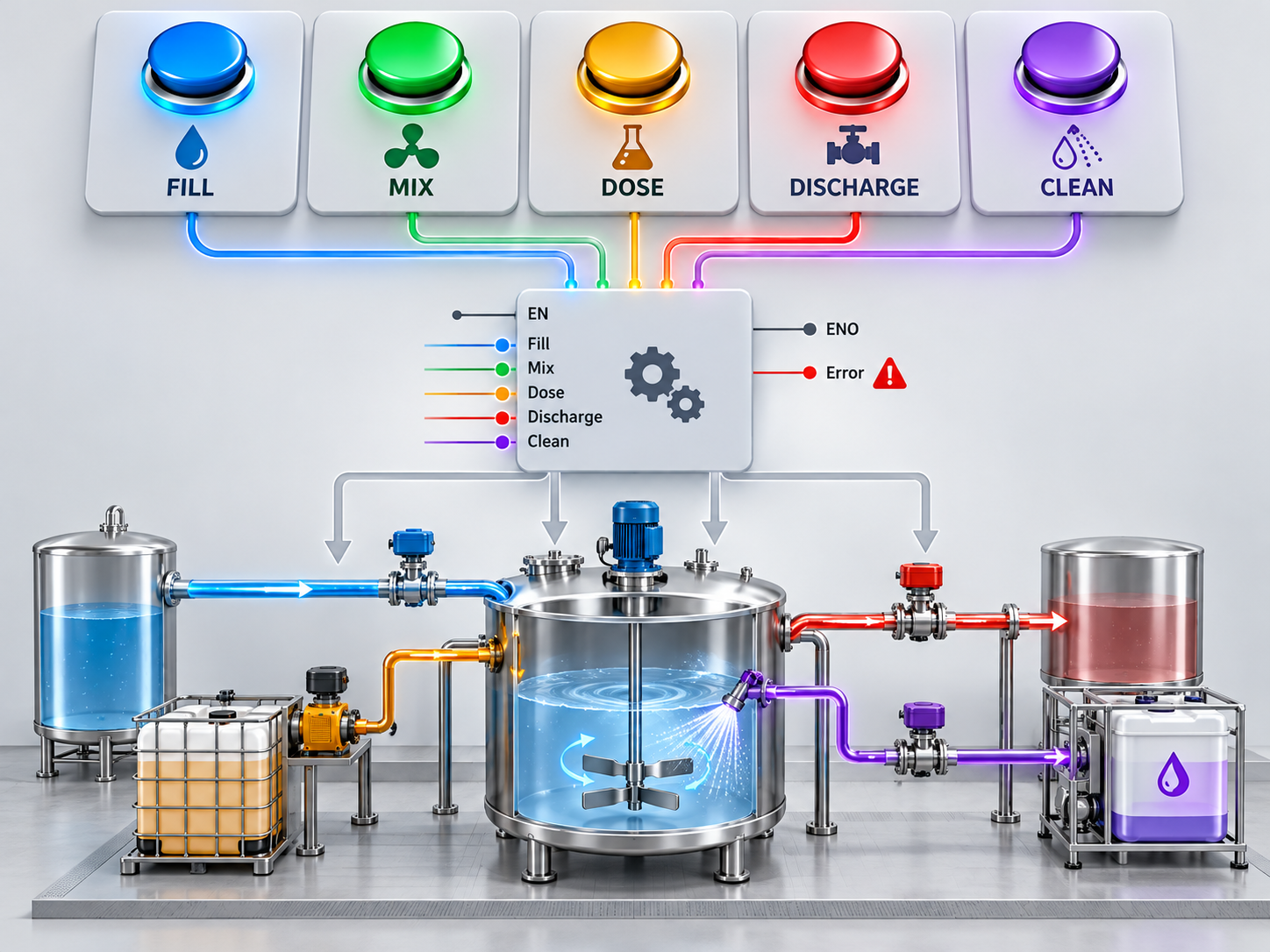

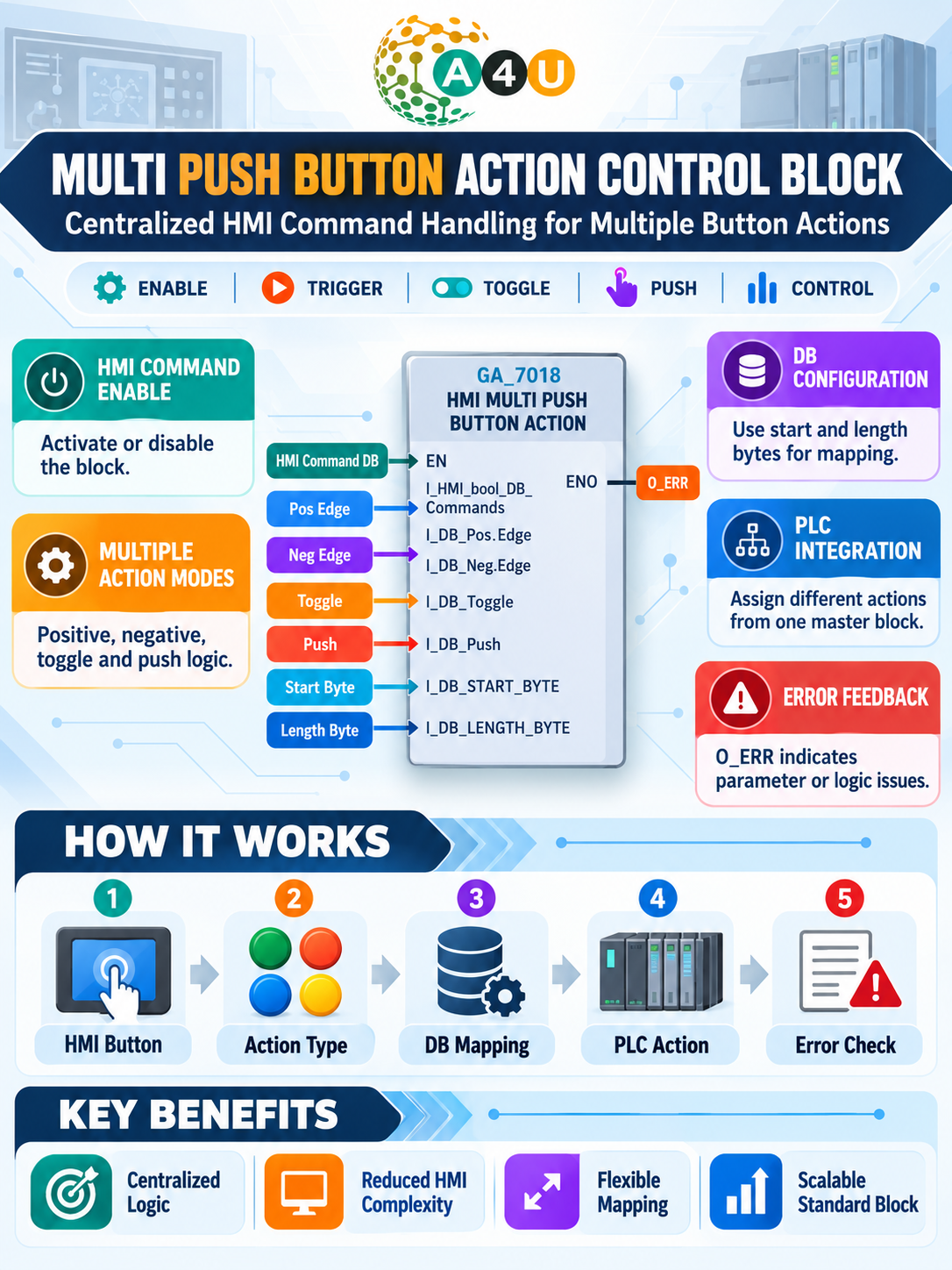

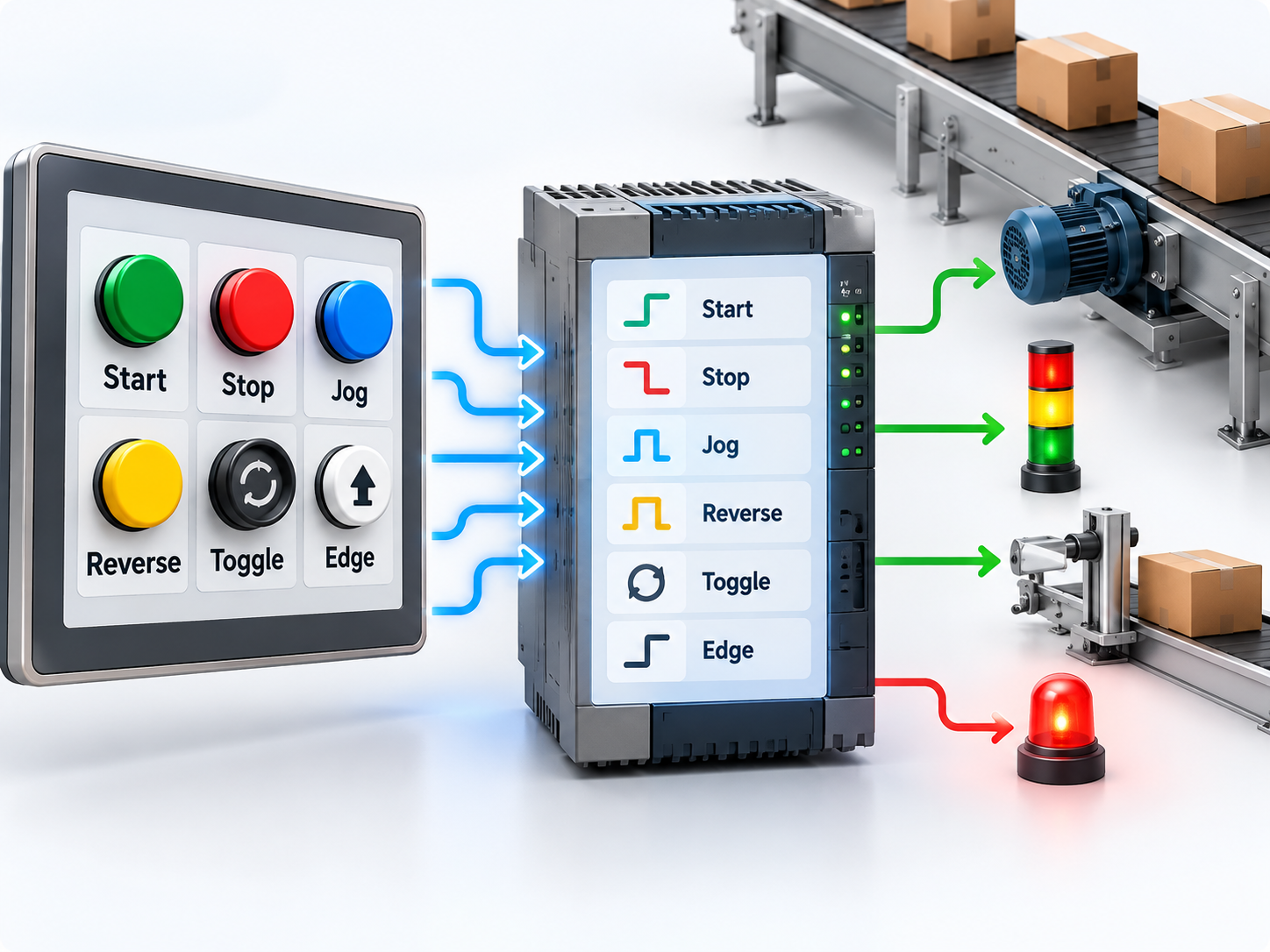

The A4U Multi Push Button Action Control Block provides a structured and reusable solution for managing multiple HMI push button commands within PLC-based industrial automation systems. The block acts as a centralized interface between the HMI and PLC, allowing different operator button actions to be processed through one standardized control structure instead of requiring separate logic for every command. It supports multiple button behaviours including positive-edge actions triggered on a button press, negative-edge actions triggered on release, toggle actions that change state with each press, and momentary push-button actions that remain active only while the button is pressed. Configurable Data Block parameters define the starting byte and data length used for command processing, helping organize multiple HMI commands efficiently within the PLC program. This approach can simplify both PLC and HMI configuration by allowing a group of operator commands to be handled through a consistent interface while still assigning different functions to individual buttons according to the application. An integrated error output provides status indication when a parameter or processing issue is detected within the block, supporting commissioning and troubleshooting activities. Because the block is designed as a standard master control function, it can be used with different HMI or SCADA platforms according to the project architecture rather than being tied to one specific visualization system. By combining multiple button-action types, centralized command processing, Data Block-based configuration and error indication within one reusable structure, the A4U Multi Push Button Action Control Block helps reduce repeated programming, improve command organization and provide a consistent foundation for operator interaction across industrial automation projects.
