LIB - RA - MOTOR CONTROL BLOCK

  • Price: €14.00

Our Services

Download Request

Standardized Motor Control for Reliable Machine Operation

The A4U Motor Control Block for Rockwell Automation provides a centralized and reusable solution for controlling electric motors within PLC-based industrial automation systems. The block manages motor Start and Stop operation together with direction control, operating-mode selection and motor running feedback. It supports Local, Remote and Automatic modes, providing a structured interface for both operator-controlled and process-controlled operation. Before allowing the motor to run, the block evaluates the required permissive and interlock conditions. Run feedback and device status signals are continuously monitored to confirm correct motor operation and identify abnormal conditions. Built-in fault and alarm management supports conditions such as Motor Trip, Failed to Start, Failed to Stop, drive faults, warnings, external faults and feedback-related problems. Simulation functionality allows engineers to test Start/Stop operation, forward/reverse behaviour, fault conditions, alarm delays and acknowledgment logic without depending entirely on the physical motor during commissioning. The integrated HMI/SCADA interface provides access to Start/Stop commands, Forward/Reverse control, Local/Remote/Automatic operation, permissive status, alarms, maintenance functions, runtime information and real-time input/output diagnostics. Dedicated visualization templates are also developed for integration with Rockwell Automation FactoryTalk View HMI/SCADA systems and AVEVA SCADA platforms, helping maintain a consistent operator interface across different automation environments. By combining motor commands, operating modes, feedback monitoring, permissives, alarms, simulation, maintenance and HMI/SCADA integration in one reusable control structure, the A4U Motor Control Block for Rockwell Automation helps standardize motor-control engineering across conveyors, pump systems and industrial machinery while supporting consistent visualization through FactoryTalk View and AVEVA SCADA templates.

Motor Control Block

Simplify and standardize motor operation with the A4U Motor Control Block.
Designed for industrial automation applications, the block combines Start/Stop control, direction commands, Local/Remote/Automatic operating modes, running feedback, permissives, interlocks, fault monitoring and simulation within one reusable PLC module.

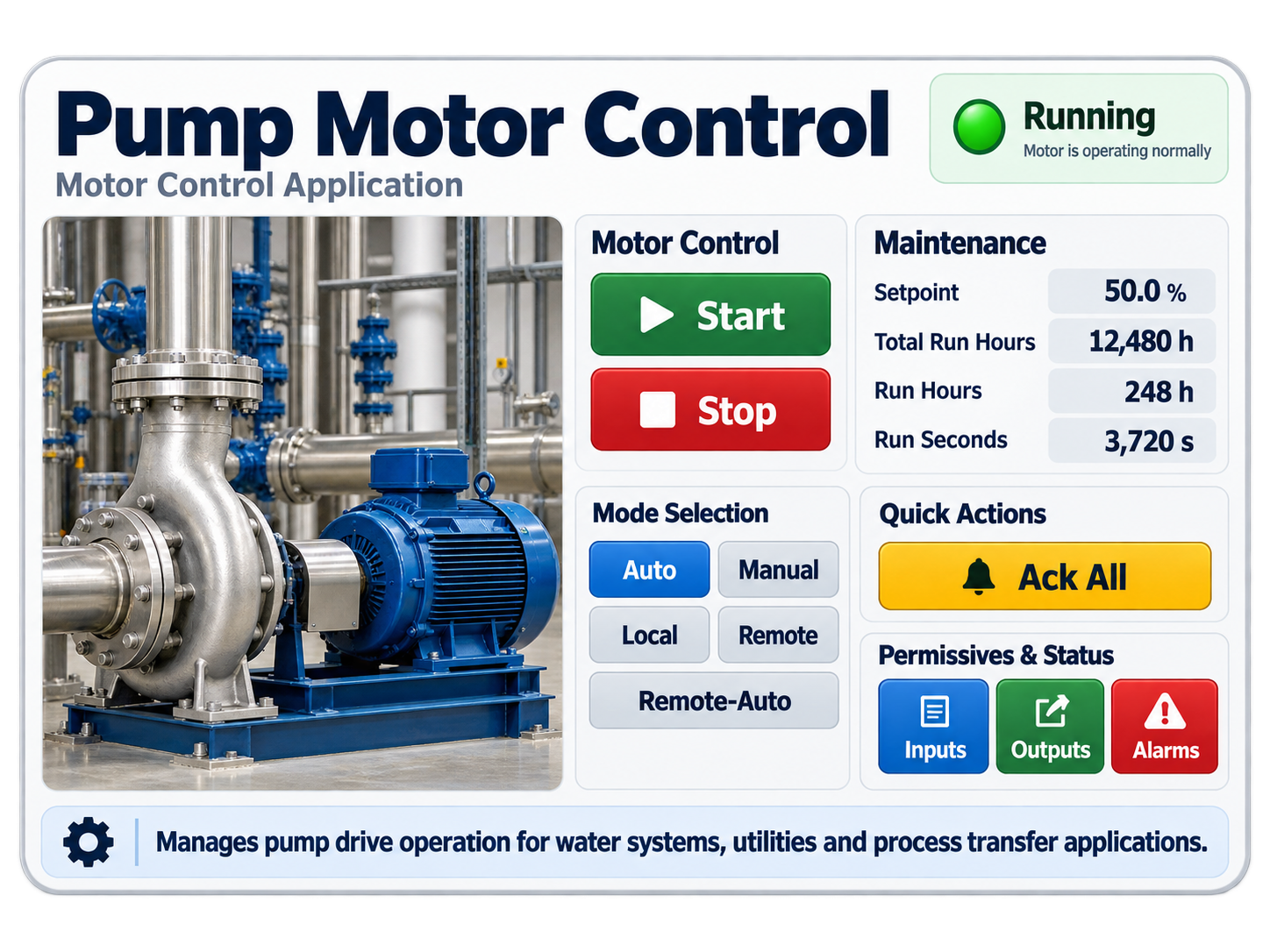

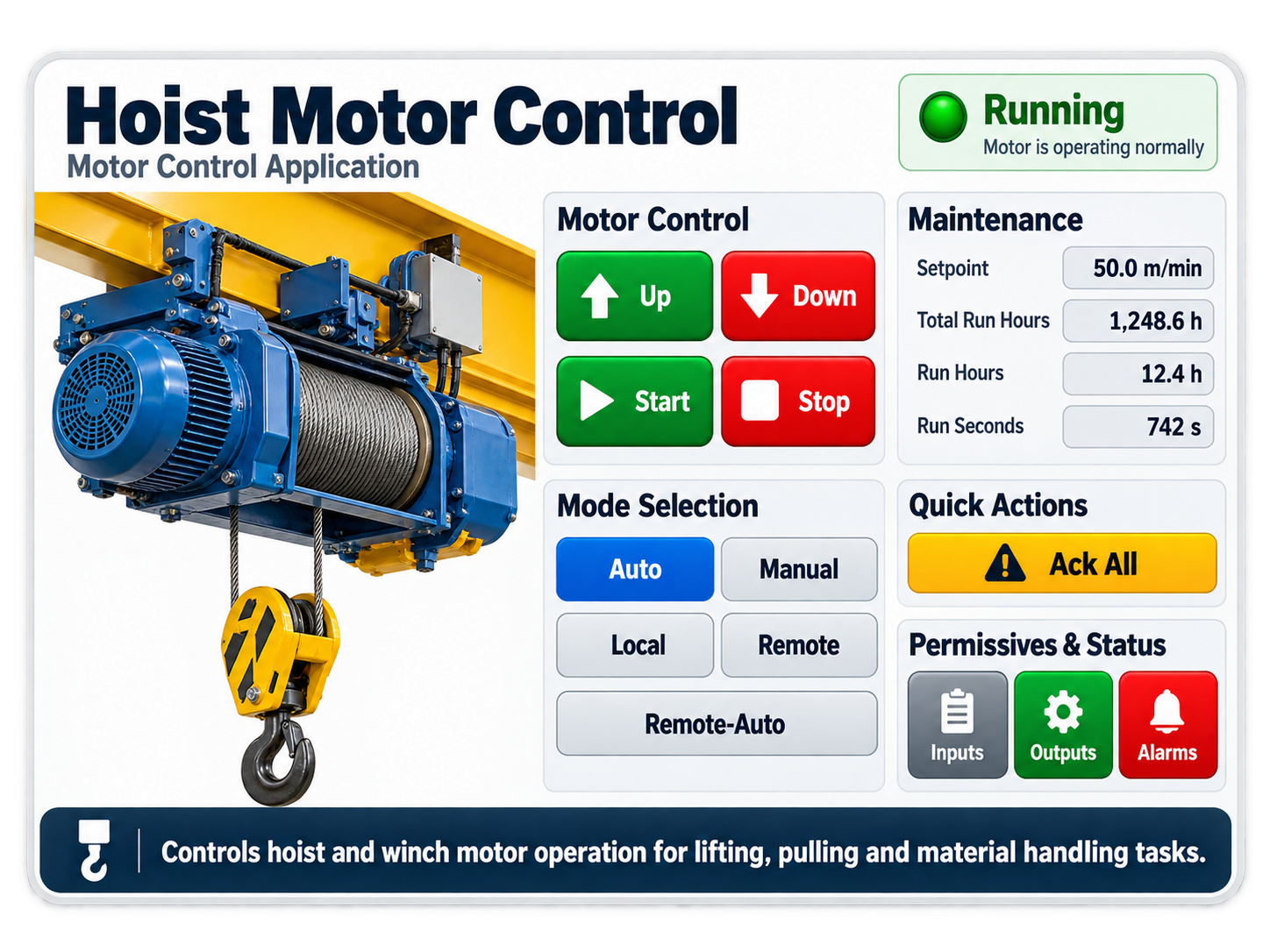

Integrated HMI/SCADA controls provide clear visibility of motor status, commands, alarms and maintenance information, helping simplify engineering, commissioning and troubleshooting.

FAQs

What is the A4U Motor Control Block?
+
The A4U Motor Control Block is a reusable PLC control module designed to provide centralized and structured control of electric motors in industrial automation applications.
Which operating modes can the Motor Control Block support?
+
The block can support operating modes such as Local, Remote and Automatic control depending on the configuration and requirements of the machine.
Does the block check conditions before starting a motor?
+
Yes. The motor control logic can evaluate configured permissives, interlocks and operating conditions before allowing the motor to start.
Can the Motor Control Block monitor motor feedback?
+
Yes. Running, stopped, fault and other configured motor feedback conditions can be monitored and made available to the control system and operator interface.
Why use a standardized Motor Control Block?
+
A standardized motor block reduces repeated programming, improves consistency between motors, simplifies diagnostics and makes future system maintenance and expansion easier.
