LIB - TIA - INCREMENT-DECREMENT VALUE CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Increment Decrement Value Control Block – Simple and Controlled Value Adjustment

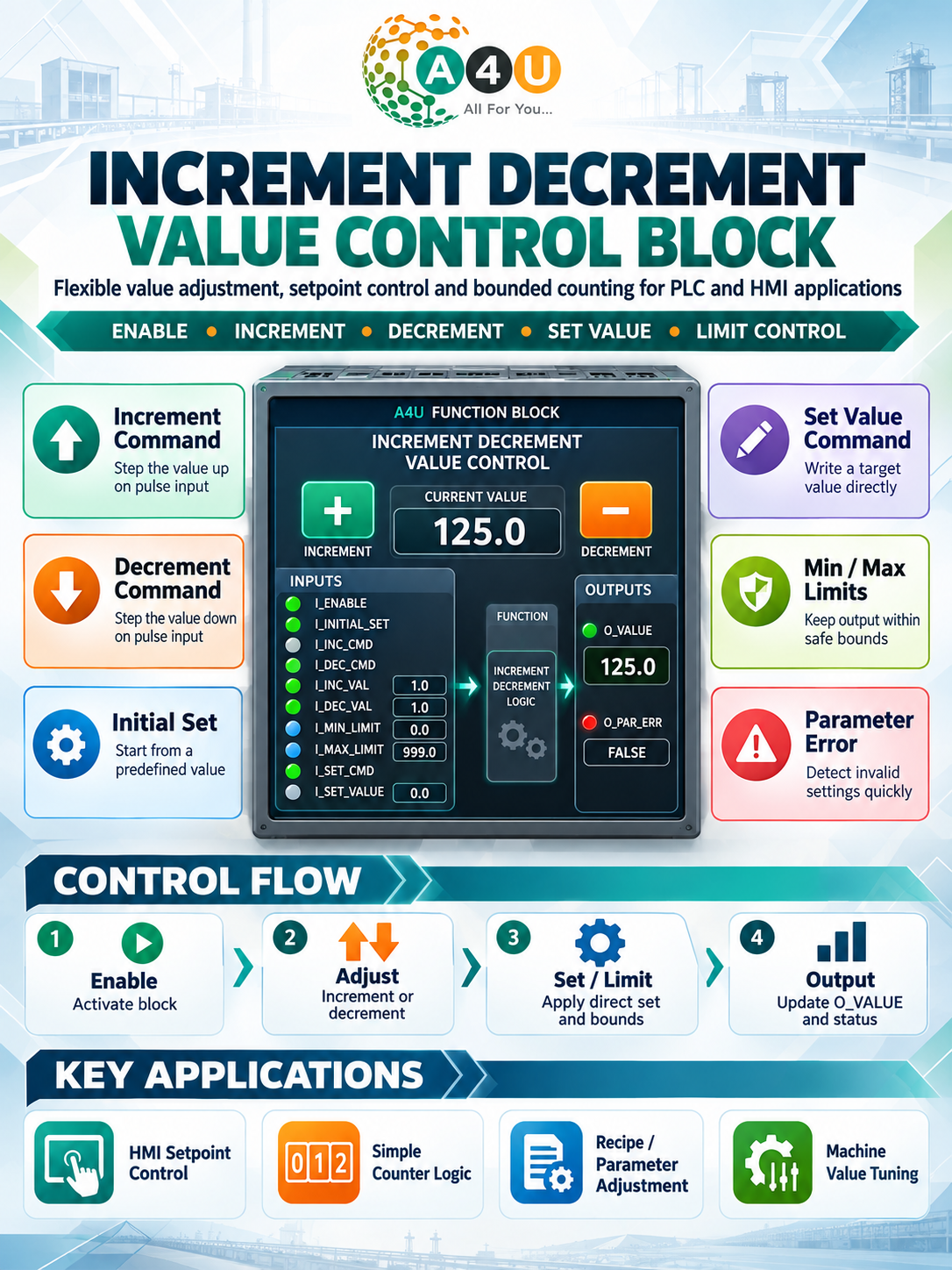

The A4U Increment Decrement Value Control Block provides a structured and reusable solution for increasing, decreasing or directly setting numerical values within PLC-based industrial automation systems. The block is designed to react to digital increment and decrement commands, allowing a configured amount to be added to or subtracted from the current value each time the corresponding command is triggered. An initial set value can be used to establish the starting reference, while separate increment and decrement values define the adjustment step applied during operation. Configurable minimum and maximum limits help keep the resulting value within the permitted operating range, supporting controlled and predictable value changes. The block also includes a direct set command that allows the output to be assigned to a defined set value when required. The resulting value is available through a dedicated output, while a parameter-error indication provides diagnostic feedback when invalid settings or operating conditions are detected. This makes the block suitable for HMI-based setpoint adjustment, operator-controlled parameter changes, counters and other applications where numerical values need to be modified in clear, repeatable steps. Typical uses include adjusting process setpoints, counting production units, tracking machine cycles and keeping tally of items processed or dispensed. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different supervisory systems according to the project architecture. By combining increment, decrement, direct set, configurable step values, operating limits and error monitoring within one reusable structure, the A4U Increment Decrement Value Control Block helps simplify numerical value management and provides a consistent foundation for operator adjustments and counting functions across industrial automation projects.

Increase. Decrease. Set. Keep Every Value Under Control.

Simplify numerical value adjustment with the A4U Increment Decrement Value Control Block. The block allows values to be increased or decreased by configurable steps, directly set to a defined value, and maintained within minimum and maximum limits. With parameter-error monitoring and a reusable PLC structure, it provides a flexible solution for HMI setpoint adjustment, counters, production tracking, machine-cycle monitoring and other applications requiring controlled numerical changes. Independent of any specific SCADA platform, the block can be integrated into a wide range of industrial automation architectures.

FAQs

What is the purpose of the Increment Decrement Value Control Block?
+
The block is designed to increase or decrease a numerical value in defined steps based on digital commands. It can also directly set the value when required, making it suitable for controlled setpoint adjustment and counting functions.
Can the increment and decrement step sizes be configured separately?
+
Yes. The block allows separate increment and decrement values to be defined, so the upward and downward adjustment steps can be configured independently according to the application.
Can minimum and maximum limits be applied?
+
Yes. The block supports configurable minimum and maximum limits to prevent the controlled value from moving outside the permitted operating range.
Does the block provide parameter-error monitoring?
+
Yes. The block provides a parameter-error indication that can be used to identify invalid configuration conditions during commissioning or operation.
What is the main benefit of using the Increment Decrement Value Control Block?
+
The main benefit is a standardized and reusable method for adjusting numerical values with defined step sizes and operating limits. This simplifies HMI interaction, reduces repeated PLC logic, and provides consistent value handling across different applications.
