LIB - TIA - HMS CONTROL BLOCK

  • Price: €5.00

Our Services

Download Request

A4U Time Duration Count Control Block – Flexible HMS Countdown for Time-Based Automation

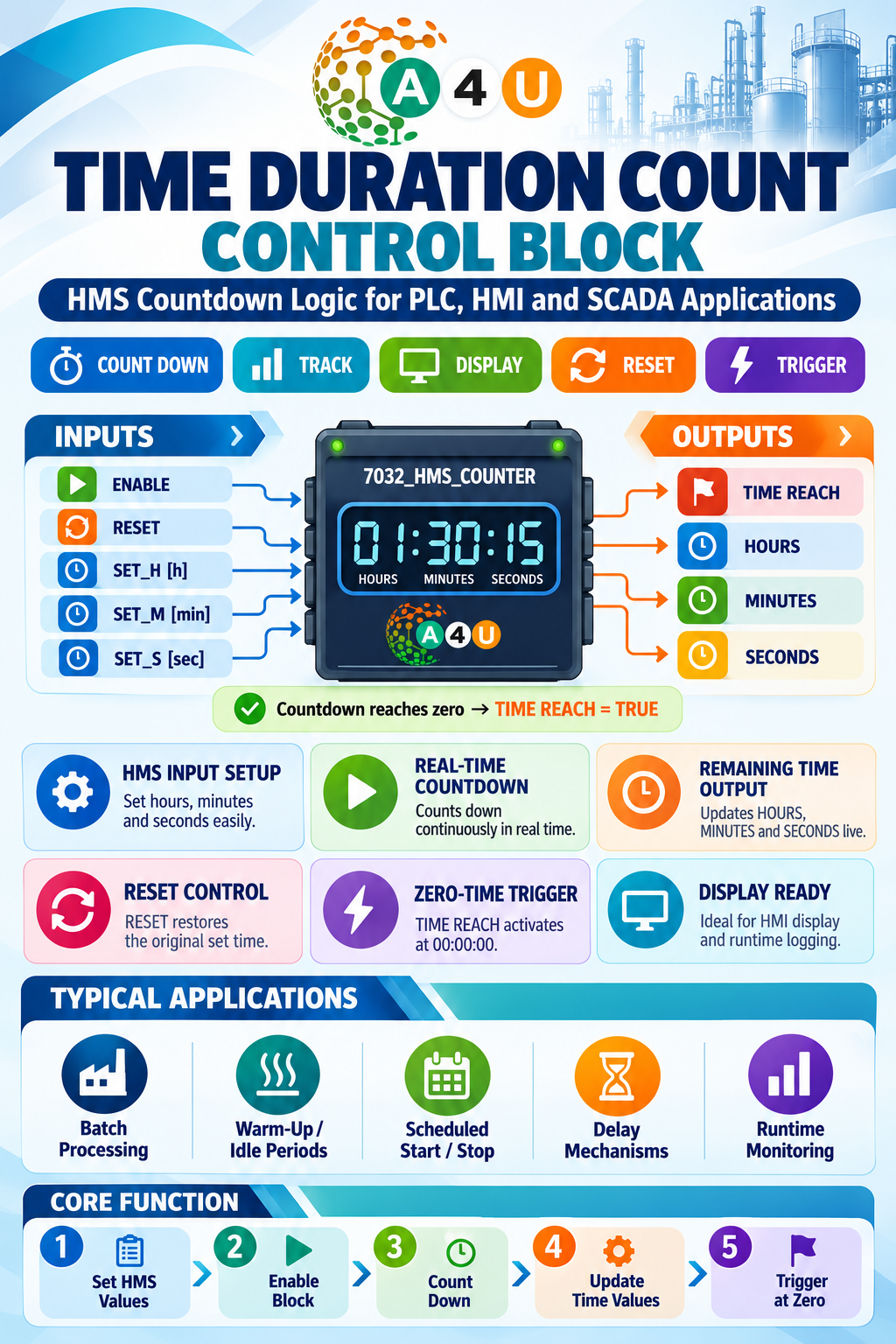

The A4U Time Duration Count Control Block provides a structured and reusable solution for managing countdown-based timing functions within PLC-based industrial automation systems. The block allows users to define a countdown using separate Hours, Minutes and Seconds values, then automatically converts those settings into a total duration and counts down in real time until the timer reaches zero. During operation, the remaining hours, minutes and seconds are continuously updated and made available as separate outputs, allowing the current countdown state to be displayed, monitored or used by downstream PLC logic. When the timer reaches 00:00:00, a dedicated Time Reach output is activated, providing a clear trigger for the next automated action, sequence step, scheduled event or process transition. A Reset input allows the countdown to be restored to its original configured time, supporting repeated cycles and operator-controlled restart functions. The block also supports conversion between different time representations, including milliseconds to days, hours, minutes and seconds, total seconds to HMS format, and formatted HH:MM:SS representation for visualization or logging purposes. This makes the block suitable for applications such as batch processing, machine warm-up or idle periods, scheduled starts and stops, delay mechanisms, runtime monitoring, process-duration tracking and other time-based automation functions. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated with different visualization and supervisory systems according to the project architecture. By combining configurable HMS timing, real-time countdown, continuously updated time outputs, reset handling and zero-time triggering within one reusable structure, the A4U Time Duration Count Control Block provides a consistent foundation for reliable time-based control across industrial automation applications.

Set the Time. Count It Down. Trigger the Next Action.

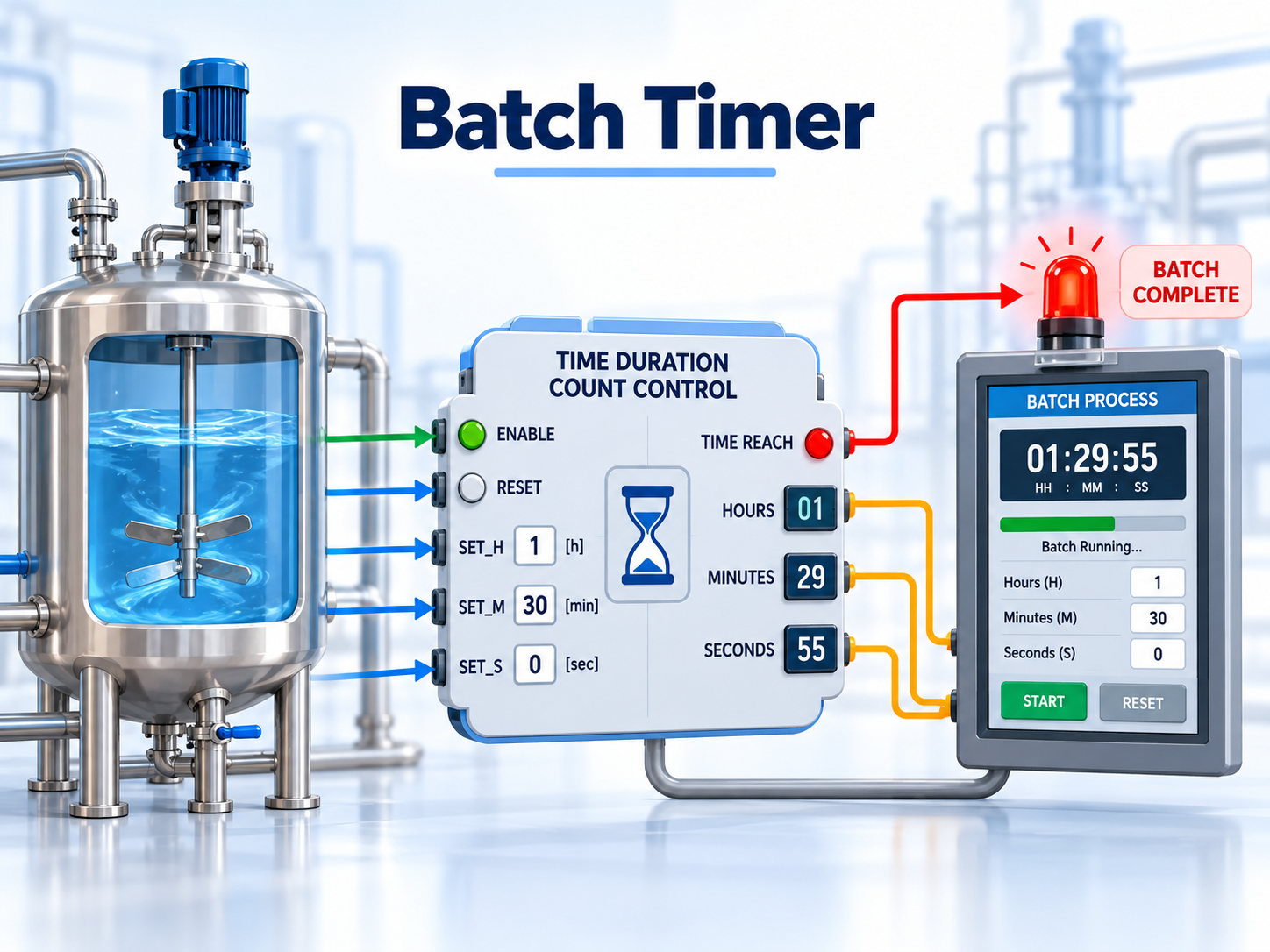

Simplify time-based automation with the A4U Time Duration Count Control Block. The block accepts configurable Hours, Minutes and Seconds values, counts down in real time, continuously updates the remaining duration and activates a dedicated output when the timer reaches zero. With reset capability and clear HMS outputs, it provides a reusable and standardized solution for batch timing, machine warm-up periods, scheduled operations, delays and process-duration monitoring.
