Structured Step-by-Step Automation for Industrial Processes

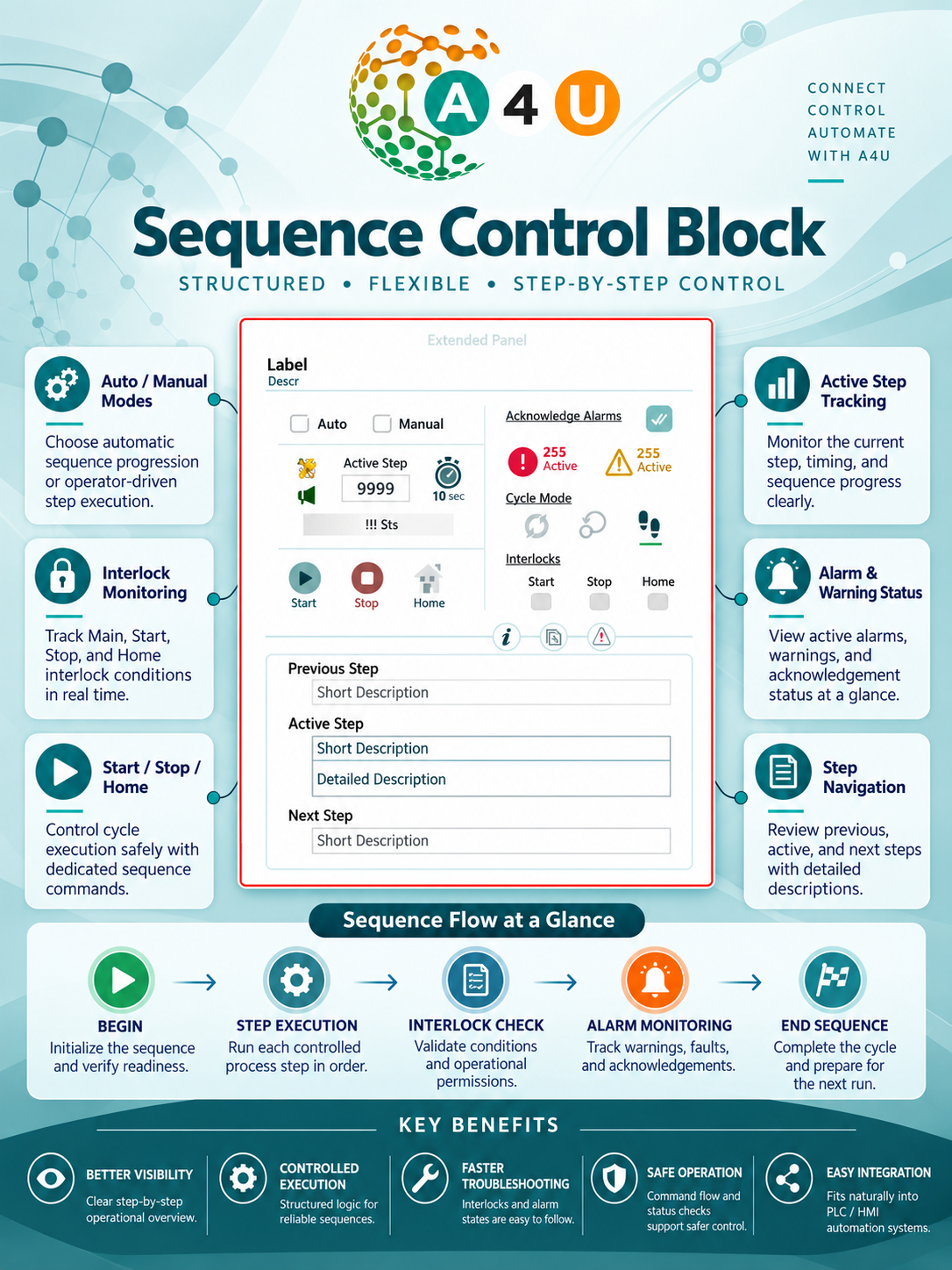

The A4U Sequence Control Block provides a structured and reusable solution for managing step-by-step automated processes within PLC-based industrial automation systems. The block organizes sequence execution through dedicated Begin, Step and End functions, allowing a process to start under valid operating conditions, progress through individual controlled steps and finish at a defined completion point. Each step can be executed based on predefined conditions, interlocks and timing requirements, helping ensure that operations follow the correct order and that the next step is only activated after the required conditions have been satisfied. The block supports Automatic, Manual, Maintenance and Simulation operating modes, giving operators and engineers flexibility during production, commissioning, testing and maintenance activities. Sequence status management provides real-time information about initialization, ready conditions, homing, production, stopping, error handling, maintenance and other operating states, while dedicated interlock handling verifies Main, Start, Stop and Home conditions before allowing the corresponding sequence actions. Individual Step functions monitor step activation, completion conditions, delays and timeout limits, and can generate alarm or fault indications if a step cannot be completed correctly. The End function finalizes the sequence by checking completion conditions, handling status information and preparing the system for the next operating cycle. Integrated alarm and warning management monitors interlock failures, timeout conditions, maintenance requirements and operational restrictions, while acknowledgment and reset functions support controlled recovery after faults have been resolved. A built-in service hour counter can track machine runtime and provide maintenance warnings or alarms based on configured operating-hour limits. The Sequence Control Block is also designed for HMI and SCADA integration, allowing operators to select Auto or Manual operation, start, stop and home the sequence, navigate between sequence steps, monitor interlock status, view current step information and follow sequence progress visually. By combining reusable sequence logic, step control, operating modes, interlocks, timing supervision, alarm management and operator visualization within one standardized solution, the A4U Sequence Control Block helps simplify the development of complex automated processes and provides a consistent foundation for applications such as material handling, batch processing, conveyor systems and other multi-step industrial operations.
