A4U Analog Output Scaling Control Block – Flexible Signal Scaling with Direction-Aware Output Control

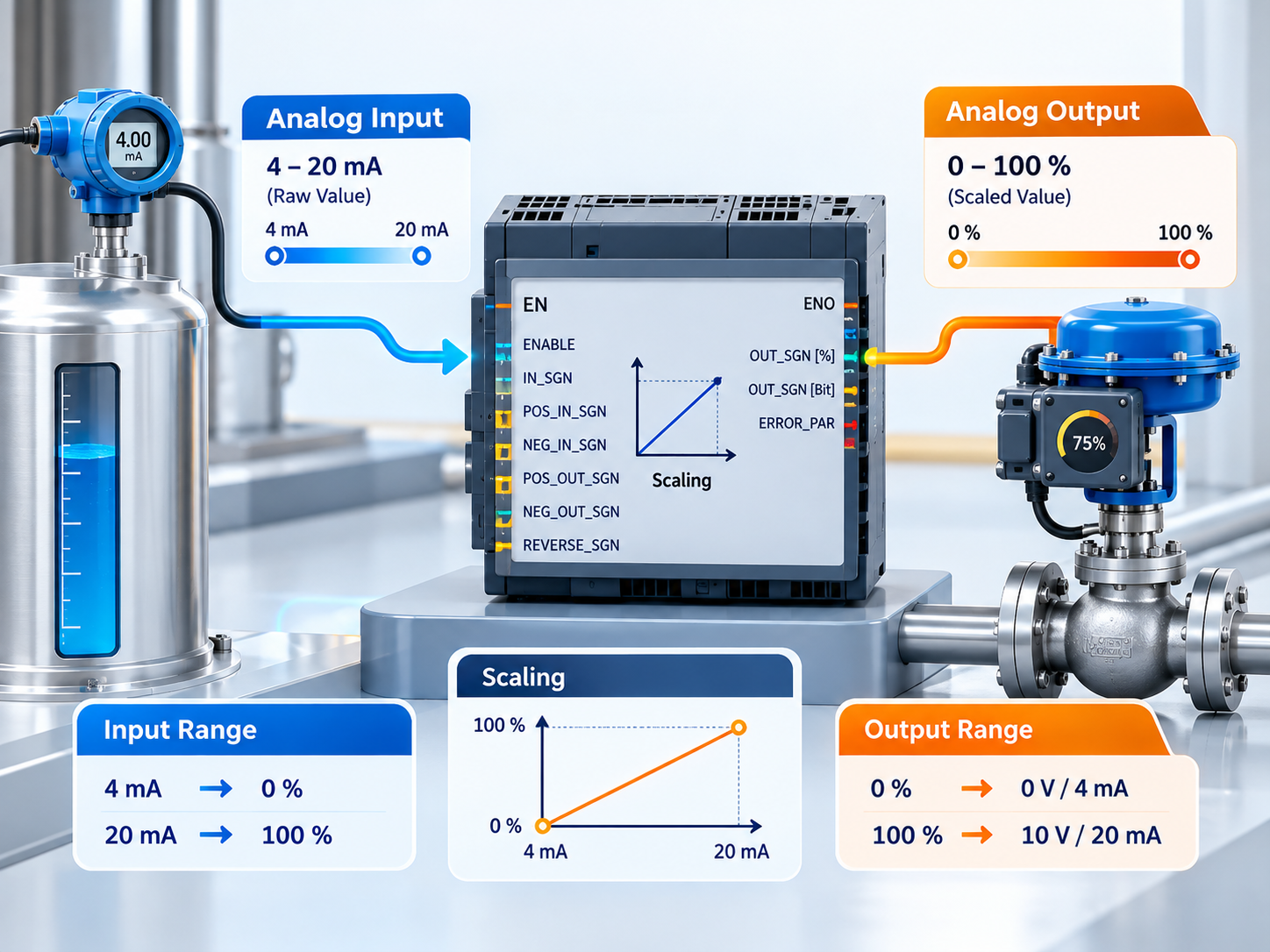

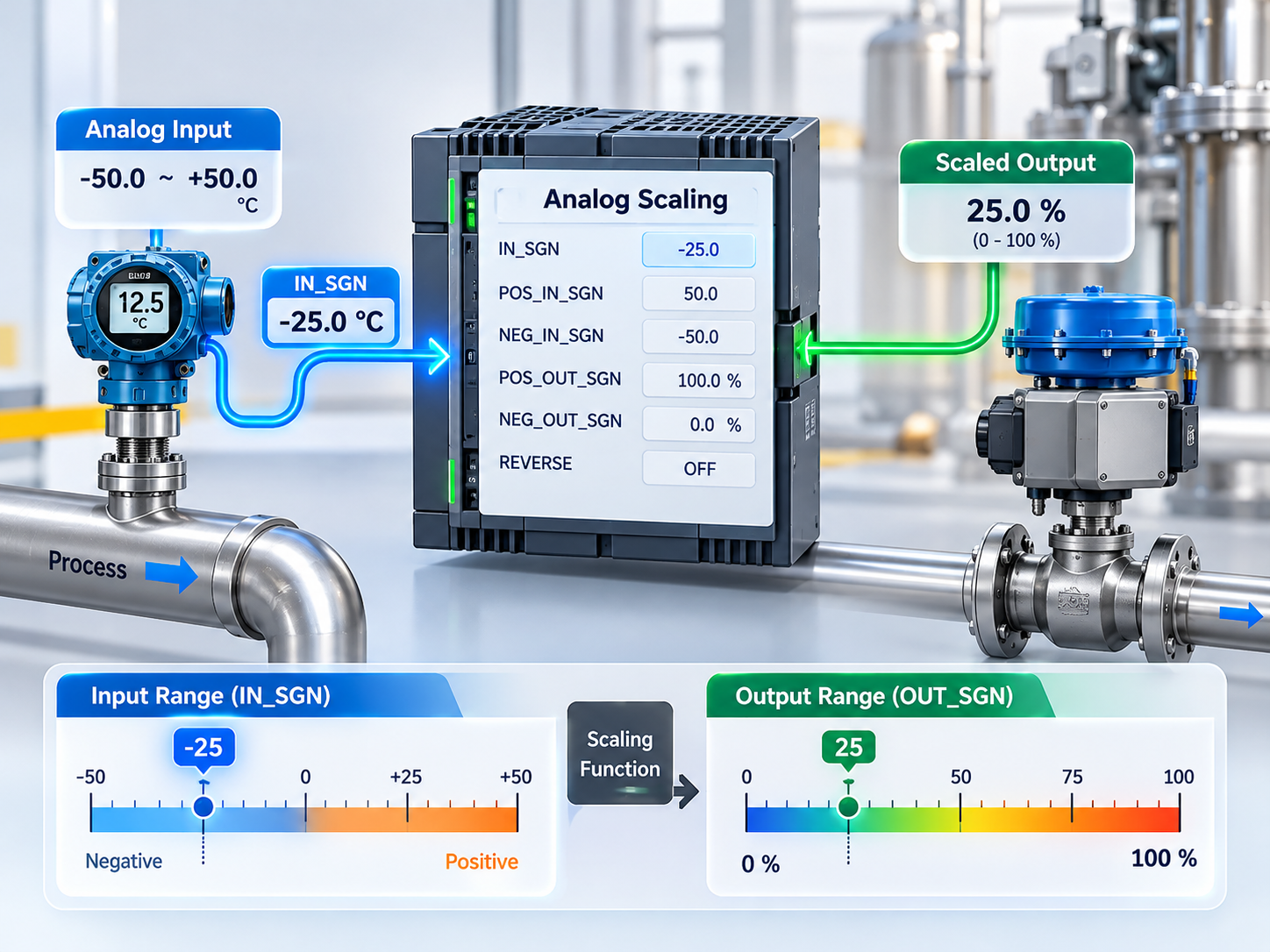

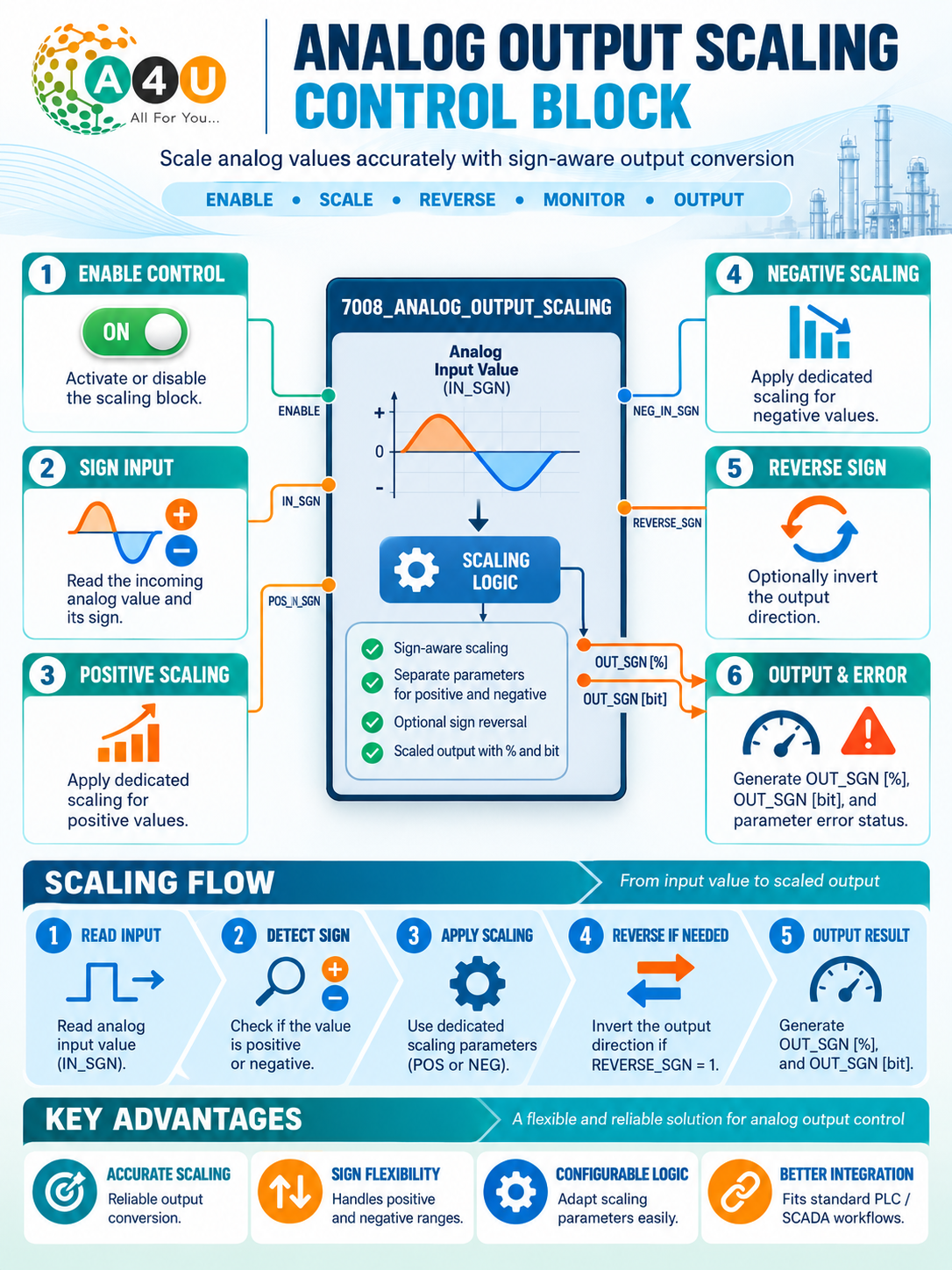

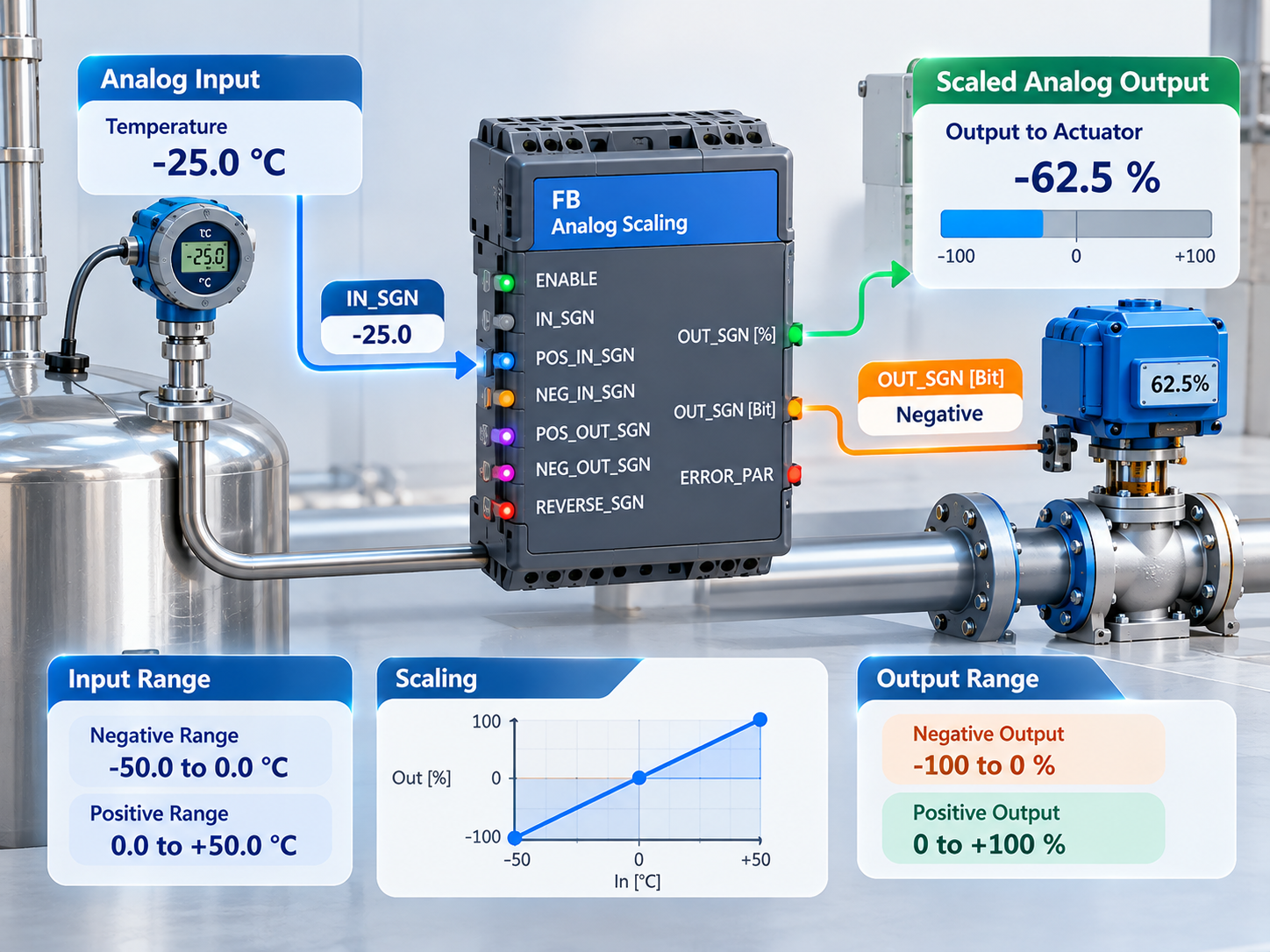

The A4U Analog Output Scaling Control Block provides a structured and reusable solution for converting analog input values into scaled output signals within PLC-based industrial automation systems. The block evaluates the incoming analog signal together with its positive or negative direction and applies configurable scaling parameters to generate a normalized output value suitable for further control logic or field-device interfacing. Separate positive and negative input and output parameters allow the scaling behaviour to be adapted to different operating ranges, while the reverse-sign function provides additional flexibility where signal direction needs to be inverted. The block generates the scaled result as a percentage value and also provides a separate digital indication of the output sign, making it easier to distinguish positive and negative operating directions within the PLC program. Integrated parameter-error monitoring indicates invalid or inconsistent configuration conditions, helping support commissioning and troubleshooting activities. Because it is designed as a standard master control block, it is not dependent on a specific HMI or SCADA platform and can be integrated into different automation architectures according to the project requirements. By combining analog scaling, sign handling, reversible direction logic and parameter validation within one reusable control structure, the A4U Analog Output Scaling Control Block helps simplify analog signal conversion and provides a consistent foundation for applications requiring normalized output values across varying positive and negative ranges. 7008 ANALOG OUTPUT SCALING
